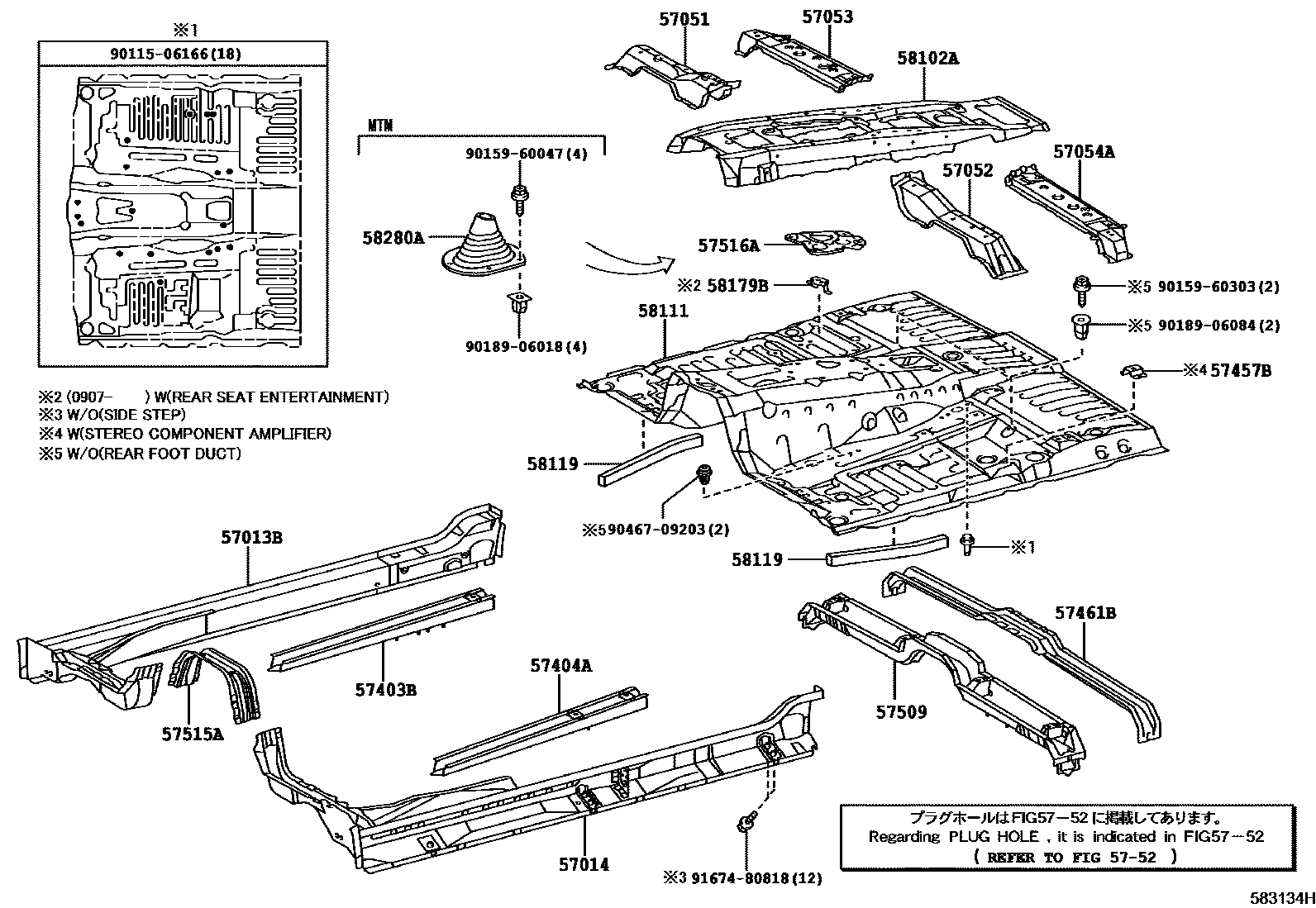

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
main57014-60010iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-60060iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
main57404-60060iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
57457BBRACKET, FRONT SEAT, FRONT
main57457-60030iURJ20#,VDJ200..LHD..VXR; URJ202,VDJ200..VX..ARL; URJ202..VX..ARL; VDJ200..RHD..VX; VDJ200..RHD..VX..GEN; VDJ200..RHD..VXR..GEN; VDJ200..VX..ARL; VDJ200..VXR..ARL;URJ202..(VX,VXR)..ARL201508-201808
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REARSEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&FRONT SEAT-POWER(*DRP)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
main57461-60020iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
main57509-60090iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
FRONT SEAT-BENCH
57515AREINFORCEMENT, FRONT FLOOR, CENTER
main57515-60030iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT
5752HOLE PLUG
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
main58102-60090iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
58111PAN, FRONT FLOOR
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW 9SPEAKER
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM/SW 9SPEAKER
main58111-60A61iURJ200..VX;VDJ200..RHD..(VX,VXR)..GEN;URJ202,VDJ200..LHD..VX..GEN; VDJ200..RHD..VX..GEN;URJ202,VDJ200..VXR..ARL201508-202104
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
WITH(COOL BOX)
main58111-60B11iGRJ200,URJ20#,VDJ200..08S..ATM; GRJ200,URJ20#,VDJ200..08S..ATM..GCC; VDJ200..6FC..GX..GEN; VDJ200..RHD..VX..GEN;GRJ200,URJ202,VDJ200..08S..ATM..GX..GCC201201-201508
WITH(COOL BOX); WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 4SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER
main58111-60B50iGRJ200..5F..GCC;GRJ200..08S..GEN;GRJ200..LHD..05S;VDJ200..09S..GCC;VDJ200..(05S,08S)..5F200709-201011
WITH(COOL BOX)
main58111-60B51supersedes 58111-60B61iGRJ200..09S..SOB;GRJ200..05S..GEN;VDJ200..5F..GCC..LUB;VDJ200..RHD..(05S,08S)..5F201508-202104
WITH(COOL BOX)
WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; WITH(COOL BOX)&FRONT SEAT-POWER(*DRP)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH
FRONT SEAT-BENCH
FRONT SEAT-BENCH
main58111-60E00iURJ20#,VDJ200..VXR..(GCC,GEN); VDJ200..RHD..VX; VDJ200..RHD..VX..GEN; VDJ200..VXR..ARL;URJ202..(VX,VXR)..ARL201508-201808
AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&AUDIO(FOR OVERSEAS MARKET)-EMV& DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER&REAR SEAT ENTERTAINMENT-WITH; FRONT SEAT-POWER(*DRP)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REARSEAT ENTERTAINMENT-WITH
58119PLATE, FRONT FLOOR SIDE, FRONT
58179BBRACKET, ACCELERATOR CABLE CLAMP
main58179-60020iURJ202,VDJ200..VX..ARL; VDJ200..6FC..GX..GEN; VDJ200..VX..GEN;VDJ200..6FC..GCC;GRJ200,URJ20#..LHD..ATM201201-201508
AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER; EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH); WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD + AM/FM 6SPEAKER; WITH(COOL BOX)&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
58280ABOOT ASSY, SHIFT LEVER
9011506166
main90115-06166
9015960047
main90159-60047
9015960303
main90159-60303
9018906018
main90189-06018
9018906084
main90189-06084
9046709203
main90467-09203
9167480818
main91674-80818
26 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 61 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: PROTECTOR, STEP COVER, RH, PROTECTOR, STEP COVER, LH, COVER, SIDE DOOR STEP PLATE, REAR LH, PLATE, STEP, RH, PLATE, STEP, LH.
