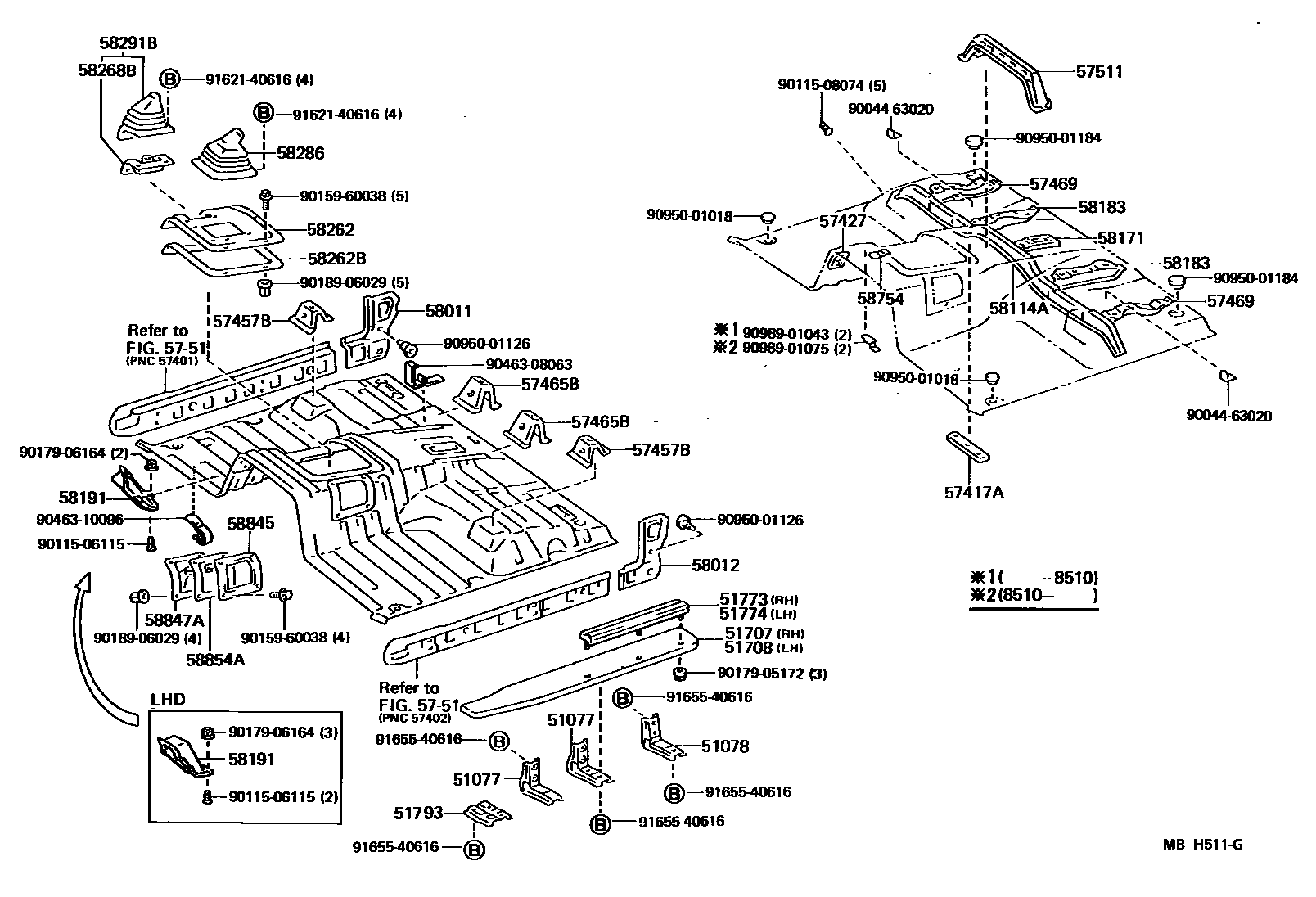

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51077BRACKET SUB-ASSY, SIDE STEP, NO.2
51078BRACKET SUB-ASSY, SIDE STEP, NO.3
51707STEP SUB-ASSY, RH
main51707-90K02iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME; BJ73,74,FJ73,LJ70,RJ70..HT..ARL198608-199001
CHROME PLATING
51708STEP SUB-ASSY, LH
CHROME PLATING
51773COVER, STEP PLATE, OUTER RH
51774COVER, STEP PLATE, OUTER LH
51793BRACKET, SIDE STEP, NO.1
57417AREINFORCEMENT, FRONT FLOOR UNDER
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57457BBRACKET, FRONT SEAT, FRONT
57465BBRACKET, FRONT SEAT, INNER
57469BRACKET, FRONT SEAT, OUTSIDE
RH
LH
5751FLOOR MEMBER
57511REINFORCEMENT, FRONT FLOOR, CENTER
VENEZUELA SPEC
W/*SUS
58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
W/RR HEATER
58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58114AREINFORCEMENT, FRONT FLOOR PANEL
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
LH
58191FOOTREST, FRONT FLOOR
58262COVER, TRANSMISSION
58262BPACKING, TRANSMISSION COVER
58268BSEAL, TRANSFER LEVER BOOT
58286BOOT, SHIFT & SELECT LEVER, NO.1
58291BBOOT, TRANSFER SHIFT LEVER
58754PLATE, ENGINE SERVICE COVER CATCH
58845RETAINER, WINCH LEVER BOOT
58847ASEAL, WINCH LEVER
58854ABOOT, WINCH LEVER
9004463020
main90044-63020
9011506115
main90115-06115
9011508074
main90115-08074
9015960038
main90159-60038
9017905172
main90179-05172
9017906164
main90179-06164
9018906029
main90189-06029
9046308063
main90463-08063
9046310096
main90463-10096
9095001018
main90950-01018
9095001126
main90950-01126
9095001184
main90950-01184
9098901043
main90989-01043
9098901075
main90989-01075
9162140616
main91621-40616
9165540616
main91655-40616
45 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 53 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, BRACKET SUB-ASSY, SIDE STEP, NO.3, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, STEP PLATE, OUTER RH.
