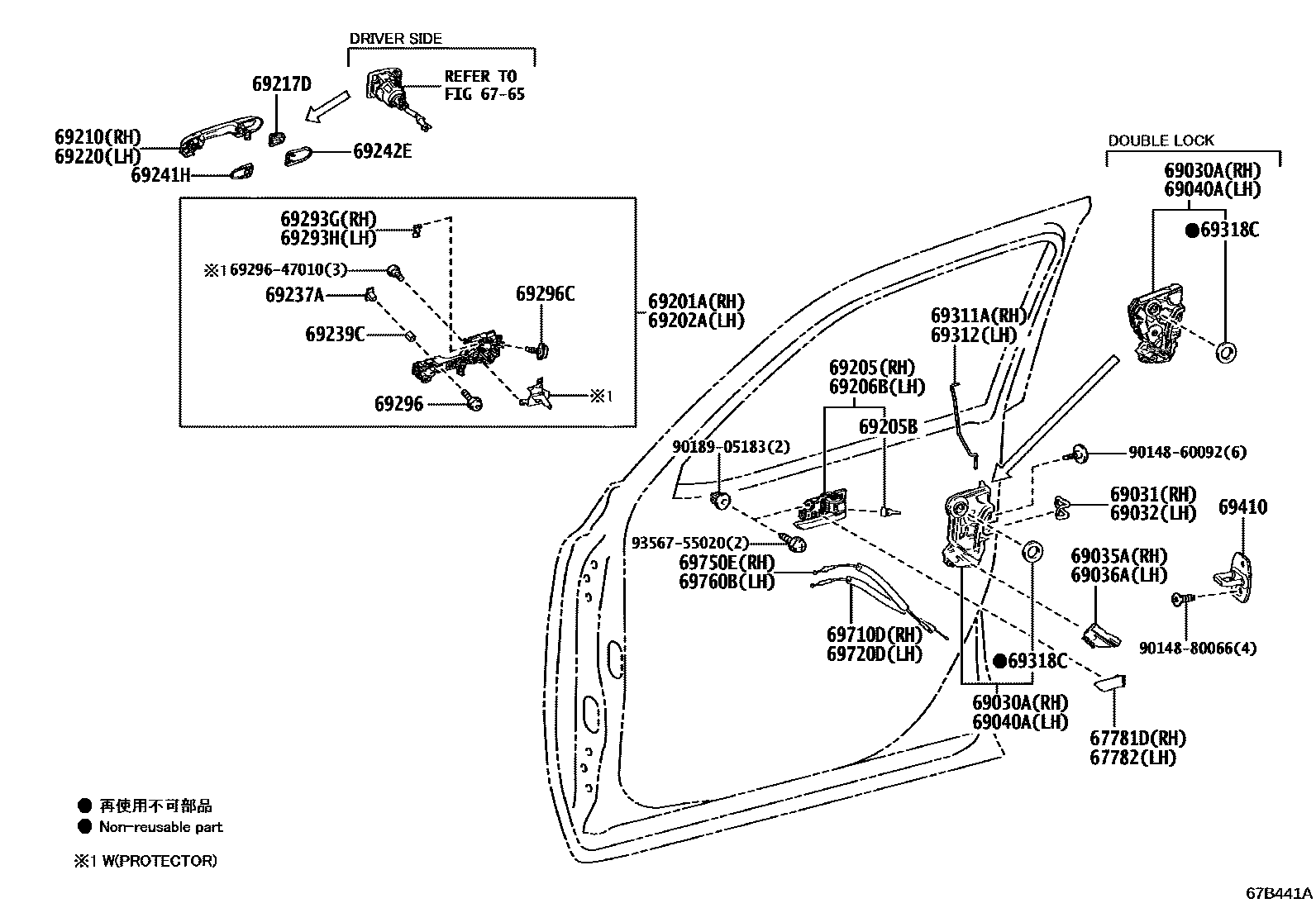

Toyota LAND CRUISER — FRONT DOOR LOCK & HANDLE
6765LOCK CYLINDER SET
67781DCOVER, FRONT DOOR TRIM, UPPER RH
67782COVER, FRONT DOOR TRIM, UPPER LH
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
ARMENIA SPEC&POWER DOOR LOCK-WITH; AZER, GEORGIA SPEC&POWER DOOR LOCK-WITH; KAZAKHSTAN SPEC&POWER DOOR LOCK-WITH; KYRGYZ SPEC&POWER DOOR LOCK-WITH; TAJIKISTAN, TURKMENISTAN SPEC&POWER DOOR LOCK-WITH; UZBEKISTAN SPEC&POWER DOOR LOCK-WITH
69031COVER SET, DOOR LOCK, RH
main69031-76010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69032COVER SET, DOOR LOCK, LH
main69032-76010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-30010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-76031iFJA300..5S..(G,S)..(GCC,GEN);FJA300,GRJ300,VJA300..LHD..7S..(GCC,GEN); VJA300..7S..V..EUR; VJA300..A..EUR;VJA300..7S..V..EUR202104-202411
ECUADOR SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED); VIETNAM SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED)
ARMENIA SPEC&POWER DOOR LOCK-WITH; AZER, GEORGIA SPEC&POWER DOOR LOCK-WITH; KAZAKHSTAN SPEC&POWER DOOR LOCK-WITH; KYRGYZ SPEC&POWER DOOR LOCK-WITH; TAJIKISTAN, TURKMENISTAN SPEC&POWER DOOR LOCK-WITH; UZBEKISTAN SPEC&POWER DOOR LOCK-WITH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-60080supersedes 69202-60090iFJA300..G..EUR;FJA300..7S..GEN;FJA300..ARL,GCC;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN; VJA300..5S..S;VJA300..(A,V,Z)..EUR;FJA300..(A,S,V,Z)..EUR; VJA300..5S..S;VJA300..(V,Z)..EUR;FJA300..(A,S,V,Z)..EUR; VJA300..7S..V..EUR; VJA300..A..EUR202411
AZERBAIJAN, GEORGEA SPEC; ECUADOR SPEC; MOLDOVA SPEC; TAJIKISTAN, TURKMENISTAN SPEC; UKRAINE SPEC; VIETNAM SPEC; VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON)
ARMENIA SPEC; KAZAKHSTAN SPEC; KYRGYZ SPEC; UZBEKISTAN SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
main69205-33140-C0iFJA300,GRJ300,VJA300..A..GCC; FJA300,GRJ300,VJA300..V; FJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN); VJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#; UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#; UPGRADE PACKAGE,BLACK,TRIM2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
main69206-33150-C0iFJA300,GRJ300,VJA300..A..GCC; FJA300,GRJ300,VJA300..V; FJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN); VJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#; UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#; UPGRADE PACKAGE,BLACK,TRIM2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
AUSTRALIA SAHARA PACKAGE,SUPER WHITE 2,040; DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040; SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070; WHITE PEARL CS.,070
PRECIOUS WHITE PEARL,090
AUSTRALIA SAHARA PACKAGE,SILVER ME.,1F7; DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7; SILVER ME.,1F7
DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3; GRAY ME.,1G3
BLACK,202; DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202
ATTITUDE BLACK MC.,218; DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218
AUSTRALIA SAHARA PACKAGE,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3
AUSTRALIA SAHARA PACKAGE,AVANT-GARDE BRONZE ME.,4V8; AVANT-GARDE BRONZE ME.,4V8; DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8; DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8
DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040; SUPER WHITE 2,040
DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070; WHITE PEARL CS.,070
DOOR OUTSIDE HANDLE-COLORED & PLATING,PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090
DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7; SILVER ME.,1F7
DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3; GRAY ME.,1G3
BLACK,202; DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202
ATTITUDE BLACK MC.,218; DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8; DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8; DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3; BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8
main69210-60400-A0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC202411
DOOR OUTSIDE HANDLE-COLORED,SUPER WHITE 2,040; SUPER WHITE 2,040
main69210-60400-A1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC202411
DOOR OUTSIDE HANDLE-COLORED,WHITE PEARL CS.,070; WHITE PEARL CS.,070
main69210-60400-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC); FJA300,VJA300..Z..GCC202411
DOOR OUTSIDE HANDLE-COLORED,PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090
SILVER ME.,1F7
GRAY ME.,1G3
main69210-60400-C0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC; VJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN)202411
BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3; BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202
main69210-60400-C1iFJA300..Z..EUR;VJA300..5S..(S,Z);VJA300..LHD..(A,G,V);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..LHD..(A,G,S,V)202104-202411
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-30140iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040; SUPER WHITE 2,040
WHITE PEARL CS.,070
DOOR OUTSIDE HANDLE-COLORED & PLATING,PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090
SILVER ME.,1F7
DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3; GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218; DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8; DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8
AUSTRALIA SAHARA PACKAGE,SUPER WHITE 2,040; DOOR OUTSIDE HANDLE-COLORED & PLATING,SUPER WHITE 2,040; SUPER WHITE 2,040
AUSTRALIA SAHARA PACKAGE,WHITE PEARL CS.,070; DOOR OUTSIDE HANDLE-COLORED & PLATING,WHITE PEARL CS.,070; WHITE PEARL CS.,070
PRECIOUS WHITE PEARL,090
AUSTRALIA SAHARA PACKAGE,SILVER ME.,1F7; DOOR OUTSIDE HANDLE-COLORED & PLATING,SILVER ME.,1F7; SILVER ME.,1F7
AUSTRALIA SAHARA PACKAGE,GRAY ME.,1G3; DOOR OUTSIDE HANDLE-COLORED & PLATING,GRAY ME.,1G3; GRAY ME.,1G3
BLACK,202; DOOR OUTSIDE HANDLE-COLORED & PLATING,BLACK,202
ATTITUDE BLACK MC.,218; DOOR OUTSIDE HANDLE-COLORED & PLATING,ATTITUDE BLACK MC.,218
AUSTRALIA SAHARA PACKAGE,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3; DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8; DOOR OUTSIDE HANDLE-COLORED & PLATING,AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8; DOOR OUTSIDE HANDLE-COLORED & PLATING,DK. BLUE MC.,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070
main69210-60390-A2iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..V..(EUR,GCC); FJA300,VJA300..Z..GCC202411
DOOR OUTSIDE HANDLE-COLORED,PRECIOUS WHITE PEARL,090; PRECIOUS WHITE PEARL,090
main69210-60390-B0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC202411
DOOR OUTSIDE HANDLE-COLORED,SILVER ME.,1F7; SILVER ME.,1F7
main69210-60390-B1iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC202411
DOOR OUTSIDE HANDLE-COLORED,GRAY ME.,1G3; GRAY ME.,1G3
main69210-60390-C0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC; VJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN)202411
BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3; BLACK,202; DOOR OUTSIDE HANDLE-COLORED,BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
main69210-60390-E0iFJA300,VJA300..Z..EUR;FJA300,GRJ300,VJA300..LHD..(A,G,V); FJA300,VJA300..Z..GCC202411
AVANT-GARDE BRONZE ME.,4V8; DOOR OUTSIDE HANDLE-COLORED,AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,040 ,070 ,090 ,1G3 ,202 ,3Q3; BLACK,202
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
AVANT-GARDE BRONZE ME.,4V8
DK. BLUE MC.,8X8
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
main69239-47010×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-60070×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
main69296-30010×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
69296CSCREW, DOOR INSIDE HANDLE
main90148-50003×2supersedes 90148-50008iFJA300..ARL,GCC;FJA300..7S..GEN;FJA300..5S..S..GEN;GRJ300,VJA300..GCC,GEN; FJA300..EUR;VJA300..5S..S;VJA300..(A,V,Z)..EUR; FJA300..EUR;VJA300..5S..S;VJA300..(V,Z)..EUR; GRJ300..A; VJA300..7S..V..EUR; VJA300..A..EUR202104-202411
ARMENIA SPEC,RH; AZER, GEORGIA SPEC; ECUADOR SPEC; KAZAKHSTAN SPEC,RH; KYRGYZ SPEC,RH; RH; TAJIKISTAN, TURKMENISTAN SPEC; UKRAINE SPEC; UZBEKISTAN SPEC,RH; VIETNAM SPEC; VIETNAM SPEC&SMART ENTRY-WITH(PANIC BUTTON)
ARMENIA SPEC,LH; KAZAKHSTAN SPEC,LH; KYRGYZ SPEC,LH; LH; UZBEKISTAN SPEC,LH
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-60030×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69710-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69750-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
6929647010SCREW, DOOR INSIDE HANDLE
main69296-47010
9014860092
main90148-60092
9014880066
main90148-80066
9018905183
main90189-05183
9356755020
main93567-55020
38 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota LAND CRUISER
This section contains 38 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LAND CRUISER. Key components include: LOCK CYLINDER SET, COVER, FRONT DOOR TRIM, UPPER RH, COVER, FRONT DOOR TRIM, UPPER LH, LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SET, DOOR LOCK, RH.
