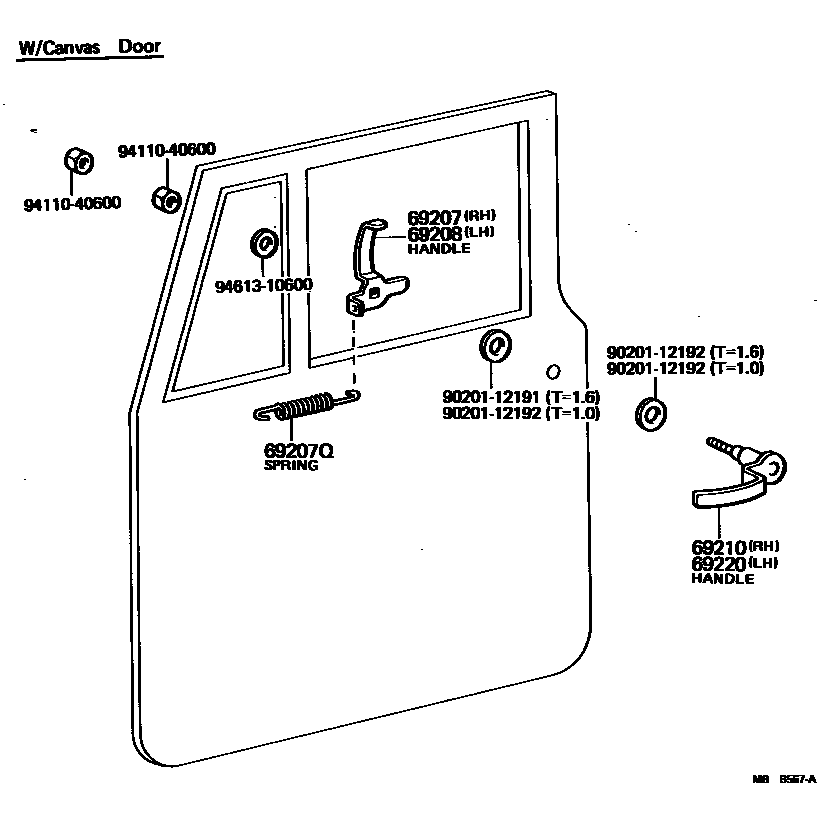

Toyota LAND CRUISER — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
STEEL DOOR
CANVAS DOOR
W/O ROLL BAR,BROWN
STEEL DOOR,BLACK
W/O ROLL BAR,BROWN,BROWN
69207QSPRING, TENSION(FOR CANVAS DOOR INSIDE HANDLE)
CANVAS DOOR
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
STEEL DOOR
CANVAS DOOR
W/O ROLL BAR,BROWN
STEEL DOOR,BLACK
W/O ROLL BAR,BROWN,BROWN
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
CANVAS DOOR
STEEL DOOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
CANVAS DOOR
STEEL DOOR
9020112191
main90201-12191
9020112192
main90201-12192
9411040600
main94110-40600
9461310600
main94613-10600
9 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota LAND CRUISER
This section contains 24 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota LAND CRUISER. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, SPRING, TENSION(FOR CANVAS DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
