Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

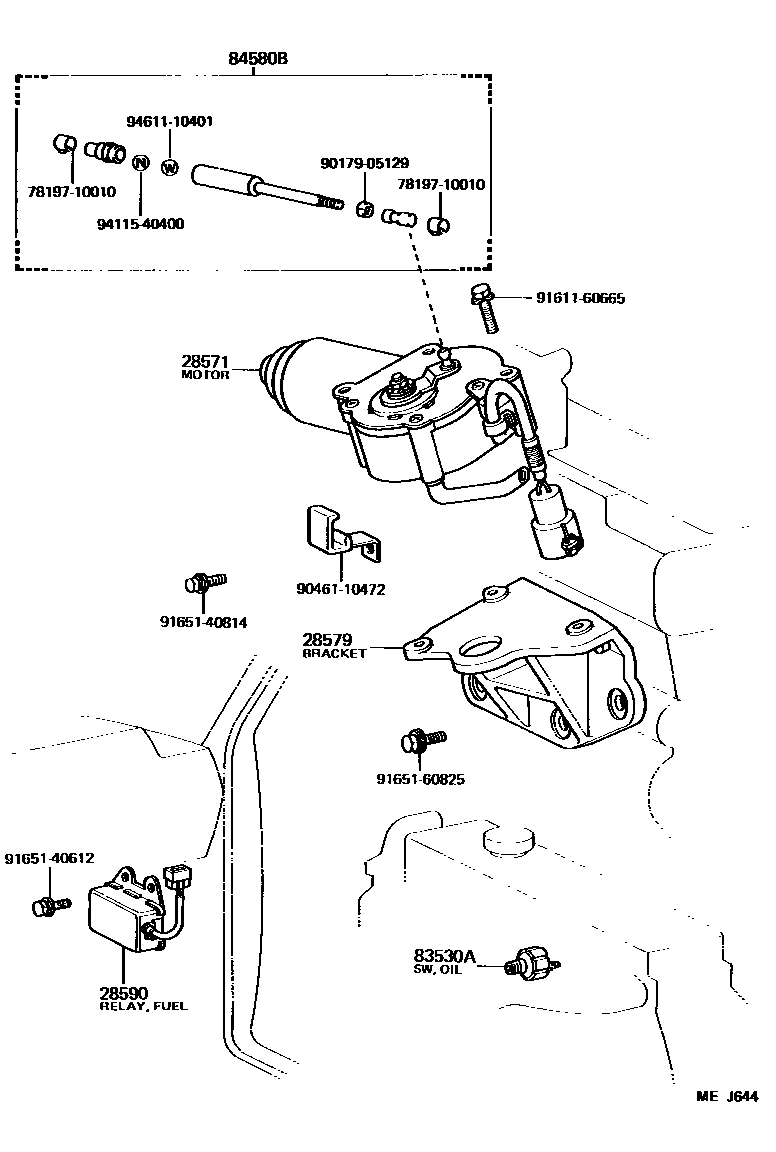

Parts diagram

28571MOTOR, FUEL CONTROL

main28571-56120i198708-198808

main28571-56140i198708-199001

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i198708-198808

28590RELAY ASSY, FUEL CONTROL

main28590-56090i198708-198808

83530ASWITCH ASSY, OIL PRESSURE

main83530-14030i198708-198808

84580BROD ASSY, CONNECTING

main84580-36021i198708-198808

main84580-36040i198708-199001

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9017905129

main90179-05129

9046110472

main90461-10472

9161160665

main91611-60665

9165140612

main91651-40612

9165140814

main91651-40814

9165160825

main91651-60825

9411540400

main94115-40400

9461110401

main94611-10401

14 parts on this diagram · 2 diagrams in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 16 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: MOTOR, FUEL CONTROL, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL, SWITCH ASSY, OIL PRESSURE, ROD ASSY, CONNECTING.
