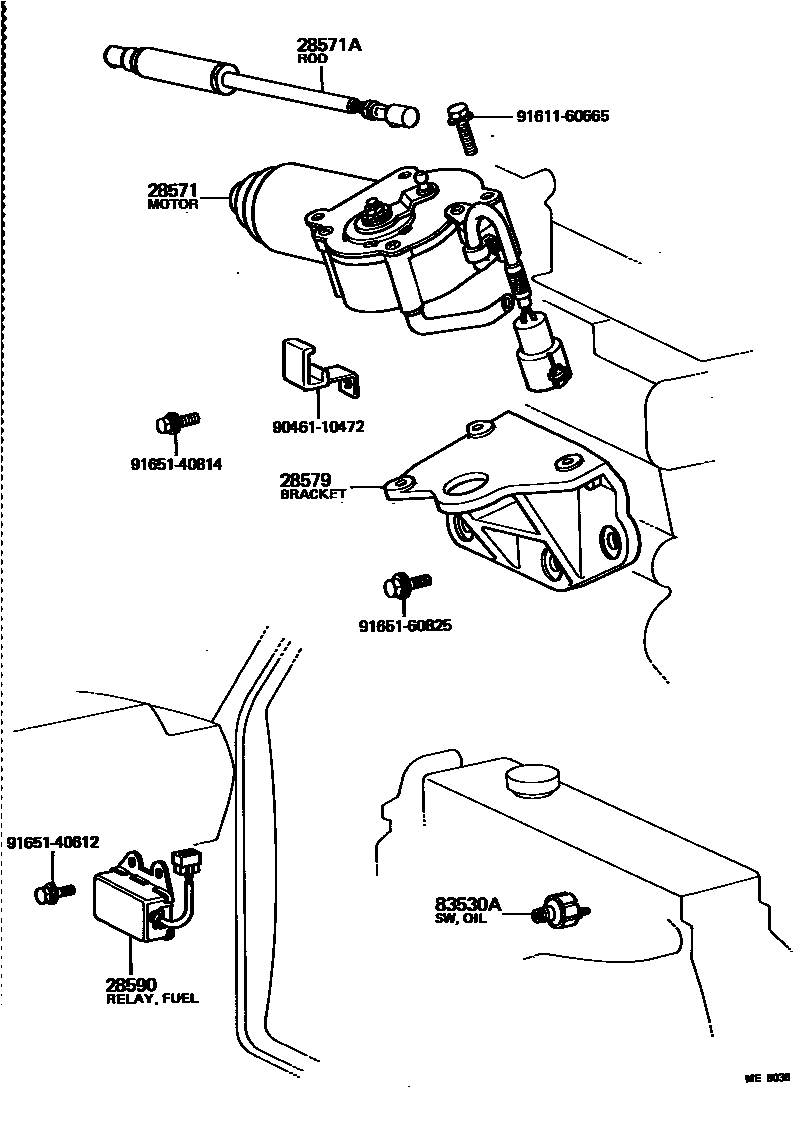

Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

28571MOTOR, FUEL CONTROL

main28571-56120i198008-198708

12V

main28571-56130i198008-198510

24V

main28571-56140i198008-198708

12V

main28571-56150i198008-198708

24V

28571AROD, FUEL CONTROL MOTOR

main84580-36021i198008-198708

main84580-36040i198008-198708

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i198008-198708

28590RELAY ASSY, FUEL CONTROL

main28590-56090i198008-198708

12V

main28590-56100i198008-198510

24V

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010i198008-198502

main83530-14030i198502-198602

9046110472

main90461-10472

9161160665

main91611-60665

9165140612

main91651-40612

9165140814

main91651-40814

9165160825

main91651-60825

10 parts on this diagram · 2 diagrams in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 15 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: RELAY ASSY, AIR CONTROL, MOTOR, FUEL CONTROL, ROD, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL.
