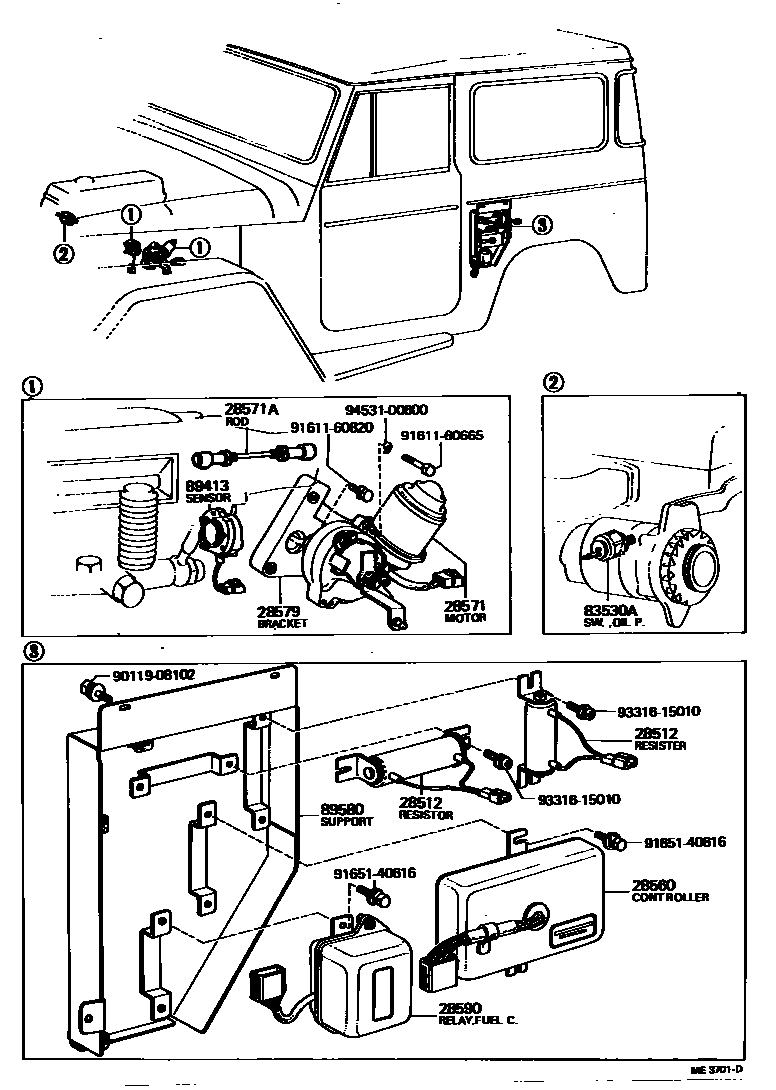

Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

28512RESISTOR, MOTOR CONTROL

main28512-56011i197402-197709

6 OHM

main28512-56021i197402-197709

3 OHM

28560CONTROLLER ASSY, FUEL

main28560-56011i197402-197709

28571MOTOR, FUEL CONTROL

main28571-56010i197402-197407

main28571-56011i197407-197612

main28571-56012i197612-197709

main28571-56020i197709-197901

FOR 12V

main28571-56030i197709-198007

FOR 12V

main28571-56040i197901-198007

FOR 24V

main28571-56050i197709-198007

FOR 24V

28571AROD, FUEL CONTROL MOTOR

main26380-56010i197402-197709

main84580-36011i197709-198007

main84580-36021i197709-198007

28579BRACKET, FUEL CONTROL MOTOR

main28579-56010i197402-197709

main28579-56020i197709-198007

main28579-56030i197709-198007

28590RELAY ASSY, FUEL CONTROL

main28590-56011i197402-197709

main28590-56060i197709-198007

FOR 12V

main28590-56070i197709-197901

FOR 24V

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010i197709-198007

main83530-36011i197402-197709

89413SENSOR, ENGINE SPEED

main89413-60011i197402-197709

89580SUPPORT ASSY, FUEL CONTROL

main89580-90300i197402-197709

9011908102

main90119-08102

9161160665

main91611-60665

9161160820

main91611-60820

9165140616

main91651-40616

9331615010

main93316-15010

9453100600

main94531-00600

15 parts on this diagram · 2 diagrams in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 20 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: RESISTOR, MOTOR CONTROL, CONTROLLER ASSY, FUEL, MOTOR, FUEL CONTROL, ROD, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR.
