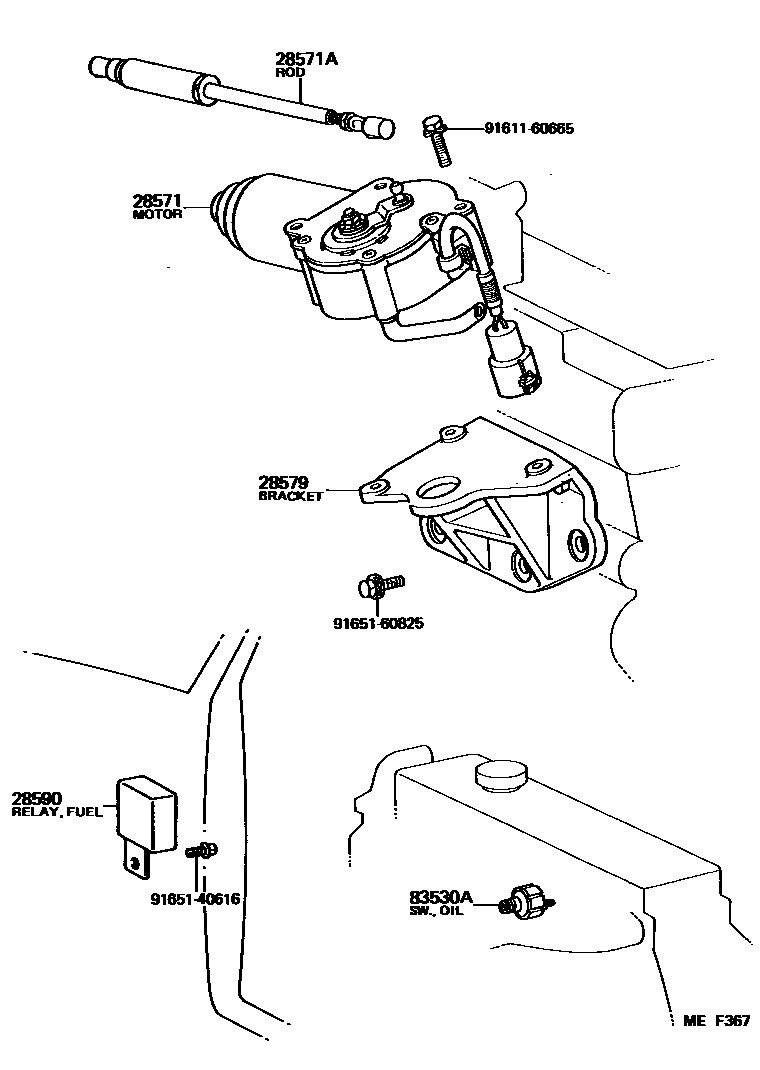

Toyota LAND CRUISER — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

28571MOTOR, FUEL CONTROL

main28571-56120i198411-198808

main28571-56130i198411-198608

24V

main28571-56140i198411-199001

28571AROD, FUEL CONTROL MOTOR

main84580-36021i198411-198808

main84580-36040i198411-199001

28579BRACKET, FUEL CONTROL MOTOR

main28579-56030i198411-198808

28590RELAY ASSY, FUEL CONTROL

main28590-56090i198808-199001

main28590-56100i198411-198608

24V

83530ASWITCH ASSY, OIL PRESSURE

main83530-14010i198411-198601

main83530-14030i198601-198808

9161160665

main91611-60665

9165140616

main91651-40616

9165160825

main91651-60825

8 parts on this diagram · 2 diagrams in section

ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota LAND CRUISER

This section contains 10 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota LAND CRUISER. Key components include: MOTOR, FUEL CONTROL, ROD, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL, SWITCH ASSY, OIL PRESSURE.
