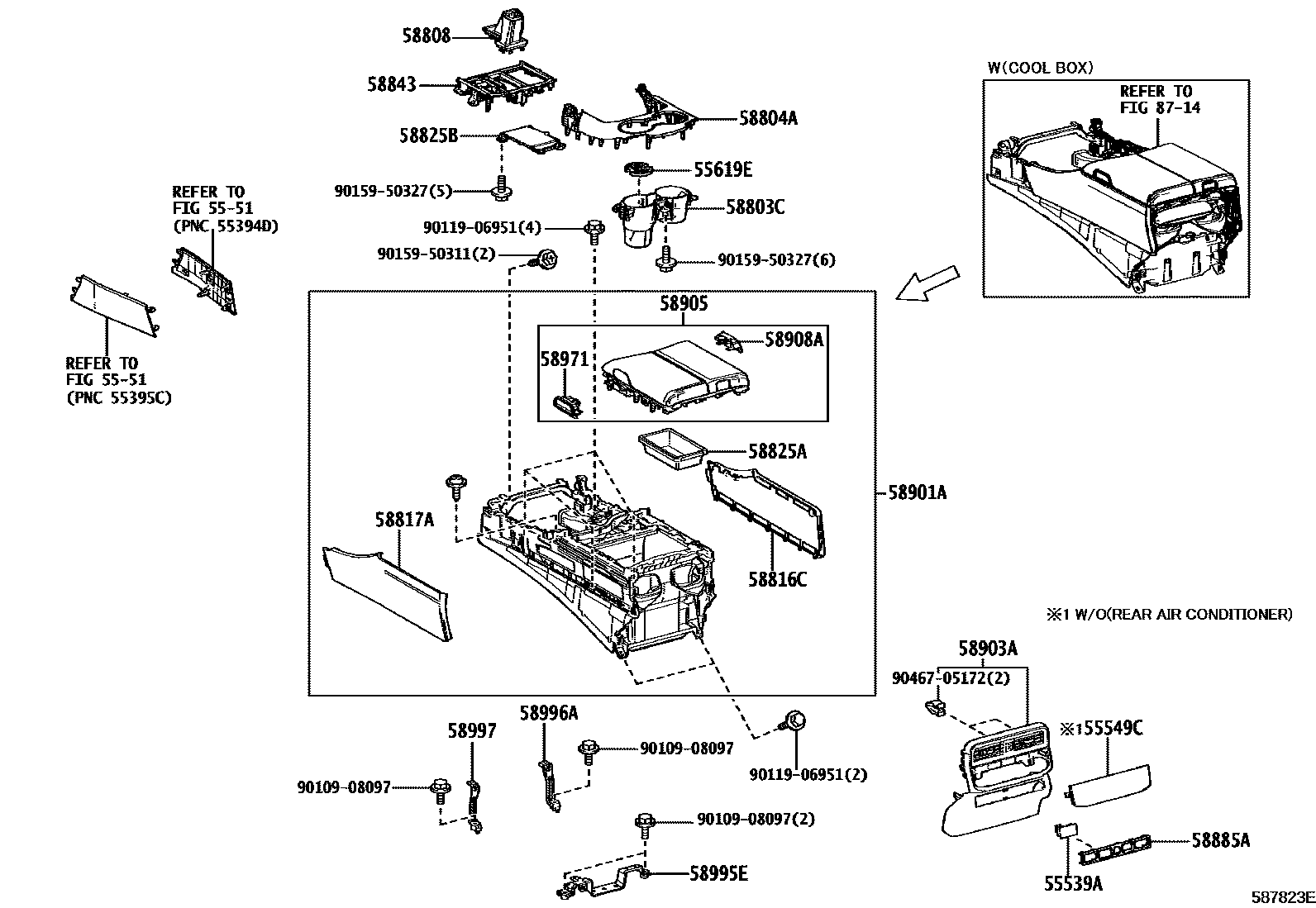

Toyota LAND CRUISER — CONSOLE BOX & BRACKET
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
55539ACOVER, SPARE SWITCH HOLE
main55539-60390iFJA300,VJA300..A..EUR; FJA300..7S..G..GCC; FJA300..A..GCC;FJA300..5S..(A,G);FJA300..(A,G)..GEN;GRJ300,VJA300..A,G; GRJ300..A,G;VJA300..A..GCC;FJA300..A..(GCC,GEN)202411
USB CHARGER SOCKET-USB(FRONT:1 , REAR:2); USB CHARGER SOCKET-USB(FRONT:1 , REAR:3); USB CHARGER SOCKET-USB(FRONT:1); USB CHARGER SOCKET-WITHOUT
55549CCOVER, REAR COOLER SWITCH HOLE
main55549-60050iFJA300,GRJ300..7S..G..GCC;FJA300,VJA300..A..(EUR,GEN); FJA300..5S..(A,G);FJA300..(A,G)..GEN;VJA300..A..(EUR,GEN);FJA300,GRJ300..7S..G..GCC202104-202411
AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
55619ECOVER, CUP HOLDER HOLE
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-60200iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411
58804APANEL SUB-ASSY, CONSOLE, UPPER
UPGRADE PACKAGE; UPGRADE PACKAGE(AERO)
main58804-60M30iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
FRONT CONSOLE BOX-WOOD
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
main58808-60540-B0iFJA300,GRJ300,VJA300..A..GCC; FJA300,GRJ300,VJA300..LHD..V; FJA300..Z..EUR;VJA300..LHD..Z;FJA300..LHD..7S..Z; VJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#; UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#; UPGRADE PACKAGE,BLACK,TRIM2#,4#
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
58816CINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#; INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,DK.ROSE,TRIM3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#; INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,DK.ROSE,TRIM3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
58825APOCKET, CONSOLE BOX
INDIA SPEC
58825BPOCKET, CONSOLE BOX
main58825-60100iVJA300..5S..S;FJA300..5S..(EUR,GCC);VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN); VJA300..5S..S;FJA300..A..GCC;FJA300..LHD..7S..(S,V,Z);VJA300..LHD..S..(GCC,GEN);FJA300..5S..(A,S,V,Z)..EUR;GRJ300,VJA300..LHD..(A,V,Z)202411
WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
58843BEZEL, SHIFTING HOLE
main58843-60190iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411
58885APANEL, EQUIPMENT SET
main58885-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
main58885-60220iFJA300..Z..ARL; VJA300..5S..S;VJA300..RHD..Z;FJA300..Z..EUR;FJA300..5S..(S,V);VJA300..LHD..(V,Z);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..7S..(S,V,Z)202411
REAR SEAT ENTERTAINMENT-WITH
main58885-60030iVJA300..V,Z;VJA300..5S..S;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)..(ARL,EUR,GCC)202104-202411
REAR SEAT ENTERTAINMENT-WITH
58901ABOX SUB-ASSY, CONSOLE, REAR
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
main58901-60810-C2iFJA300,VJA300..LHD..Z; VJA300..7S..S..EUR;FJA300,GRJ300,VJA300..LHD..V202104-202109
BLACK,TRIM2#; BLACK,TRIM2#,3#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
main58901-60810-D3iVJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN); VJA300..7S..S..EUR202107-202109
COOL BOX-WITH,DK.ROSE,TRIM3#; COOL BOX-WITH,DK.ROSE,TRIM31; DK.ROSE,TRIM3#; DK.ROSE,TRIM31
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,DK. ROSE,TRIM3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,DK.ROSE,TRIM31; DK.ROSE,TRIM31
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,DK. ROSE,TRIM3#; DK. ROSE,TRIM3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#,4#
main58903-60A30-C0iFJA300..S;VJA300..5S..S;VJA300..S..(GCC,GEN); VJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202411
BLACK,TRIM2#,3#; BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#; UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#; UPGRADE PACKAGE,BLACK,TRIM2#,4#
main58903-60A20-C0supersedes 58903-60A10-C0iFJA300,GRJ300,VJA300..V; VJA300..Z;FJA300..7S..Z;FJA300..Z..(ARL,EUR)202104-202411
FRONT CONSOLE BOX-WOOD,BLACK,TRIM2#,3#,4#; FRONT CONSOLE BOX-WOOD,BLACK,TRIM2#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
main58905-60660-C2supersedes 58905-60661-C2iFJA300,VJA300..LHD..Z; VJA300..7S..S..EUR;FJA300,GRJ300,VJA300..LHD..V202104-202109
BLACK,TRIM2#; BLACK,TRIM2#,3#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
main58905-60660-D3iVJA300..5S..S;FJA300..LHD..S;VJA300..LHD..S..(GCC,GEN); VJA300..7S..S..EUR202107-202109
COOL BOX-WITH,DK.ROSE,TRIM3#; COOL BOX-WITH,DK.ROSE,TRIM31; DK.ROSE,TRIM3#; DK.ROSE,TRIM31
COOL BOX-WITH,NEUTRAL BEUGE,TRIM4#; NEUTRAL BEUGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,DK. ROSE,TRIM3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,DK.ROSE,TRIM31; DK.ROSE,TRIM31
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; BLACK,TRIM2#,3#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,DK. ROSE,TRIM3#; DK. ROSE,TRIM3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#; INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
BLACK,TRIM2#; INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
main58908-60080-C0supersedes 58908-60081-C0iFJA300..A..EUR;FJA300..RHD..(A,G);VJA300..A..(EUR,GEN)202104-202109
COOL BOX-WITH,TRIM2#; TRIM2#
main58908-60080-E0supersedes 58908-60081-E0iFJA300..A..EUR;FJA300..RHD..(A,G);VJA300..A..(EUR,GEN)202104-202109
COOL BOX-WITH,TRIM4#; TRIM4#
main58908-60090-C0supersedes 58908-60091-C0iFJA300,GRJ300,VJA300..V; FJA300,VJA300..S,Z202104-202109
COOL BOX-WITH,TRIM2#; COOL BOX-WITH,TRIM2#,3#; TRIM2#; TRIM2#,3#
COOL BOX-WITH,TRIM4#; TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
58971LOCK, CONSOLE COMPARTMENT DOOR
BLACK,TRIM2#; INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
main58908-60100-C0supersedes 58908-60101-C0iFJA300..A..EUR;FJA300..RHD..(A,G);VJA300..A..(EUR,GEN)202104-202109
COOL BOX-WITH,TRIM2#; TRIM2#
main58908-60100-E0supersedes 58908-60101-E0iFJA300..A..EUR;FJA300..RHD..(A,G);VJA300..A..(EUR,GEN)202104-202109
COOL BOX-WITH,TRIM4#; TRIM4#
main58908-60110-C0supersedes 58908-60111-C0iFJA300,GRJ300,VJA300..V; FJA300,VJA300..S,Z202104-202109
COOL BOX-WITH,TRIM2#; COOL BOX-WITH,TRIM2#,3#; TRIM2#; TRIM2#,3#
COOL BOX-WITH,TRIM4#; TRIM4#
BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#; COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
58995EBRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
8714HEATING & AIR CONDITIONING - COOLER UNIT
9010908097
main90109-08097
9011906951
main90119-06951
9015950311
main90159-50311
9015950327
main90159-50327
9046705172
main90467-05172
27 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota LAND CRUISER
This section contains 27 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LAND CRUISER. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, COVER, SPARE SWITCH HOLE, COVER, REAR COOLER SWITCH HOLE, COVER, CUP HOLDER HOLE, BOX SUB-ASSY, CONSOLE CUP HOLDER.
