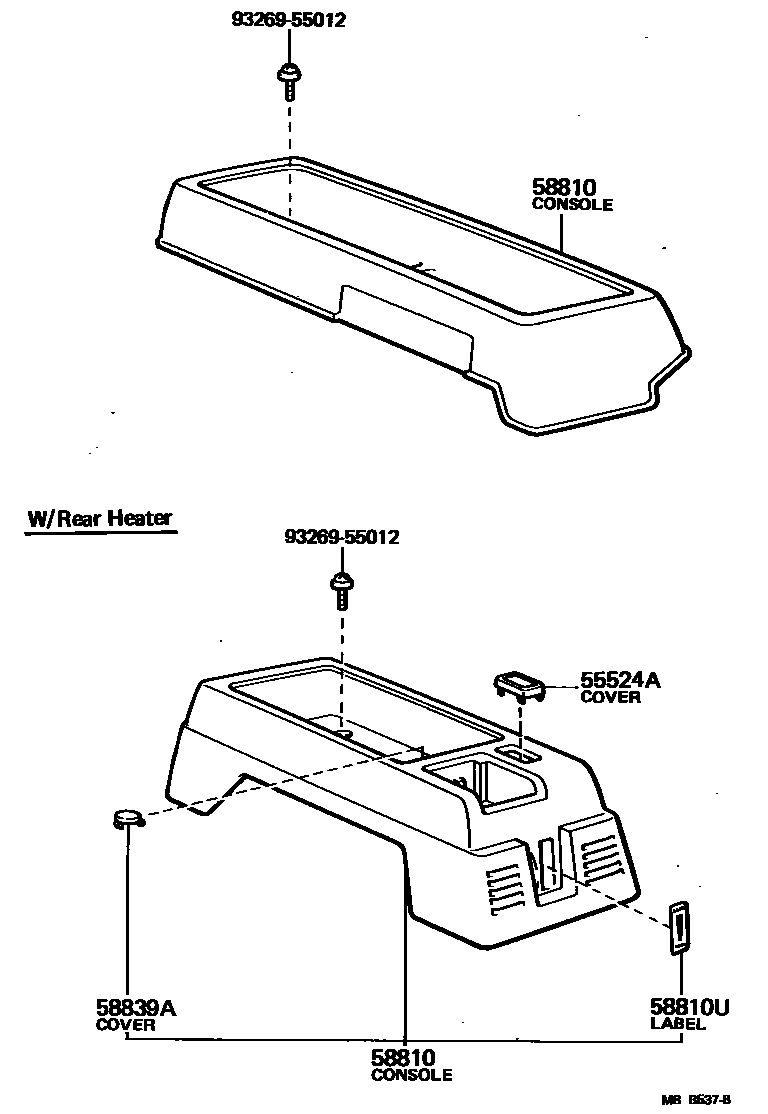

Toyota LAND CRUISER — CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55524-90A00i198008-198510

W/RR HEATER

58810CONSOLE ASSY

main58811-90800i198008-198210

W/RR HEATER

main58811-90800-03i198210-198510

W/RR HEATER,GRAY,DARK GRAY

main58811-90800-06i198210-198510

W/O ROLL BAR,W/RR HEATER,BROWN,DARK BROWN

main58811-90802i198110-198210

W/O ROLL BAR,BROWN

main58811-90802-03i198210-198604

GRAY,DARK GRAY

main58811-90802-06i198210-198510

W/O ROLL BAR,BROWN,DARK BROWN

main58811-90803i198110-198210

W/O ROLL BAR,W/RR HEATER,BROWN

main58811-90806i198305-198403

*SAA,DARK WINE

main58951-90300i198008-198210

58810ULABEL, HEATER WARM CONTROL INDICATOR

main58829-90800i198008-198510

W/RR HEATER

58839ACOVER, CONSOLE BOX HOLE

main58839-90800i198008-198210

W/RR HEATER

main58839-90800-03i198210-198510

W/RR HEATER,GRAY,DARK GRAY

main58839-90800-06i198210-198510

W/O ROLL BAR,W/RR HEATER,BROWN,DARK BROWN

main58839-90802i198110-198210

W/O ROLL BAR,W/RR HEATER,BROWN

9326955012

main93269-55012

5 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota LAND CRUISER

This section contains 5 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LAND CRUISER. Key components include: COVER, SWITCH BASE HOLE, CONSOLE ASSY, LABEL, HEATER WARM CONTROL INDICATOR, COVER, CONSOLE BOX HOLE.
