Toyota LAND CRUISER — CLUTCH & RELEASE FORK

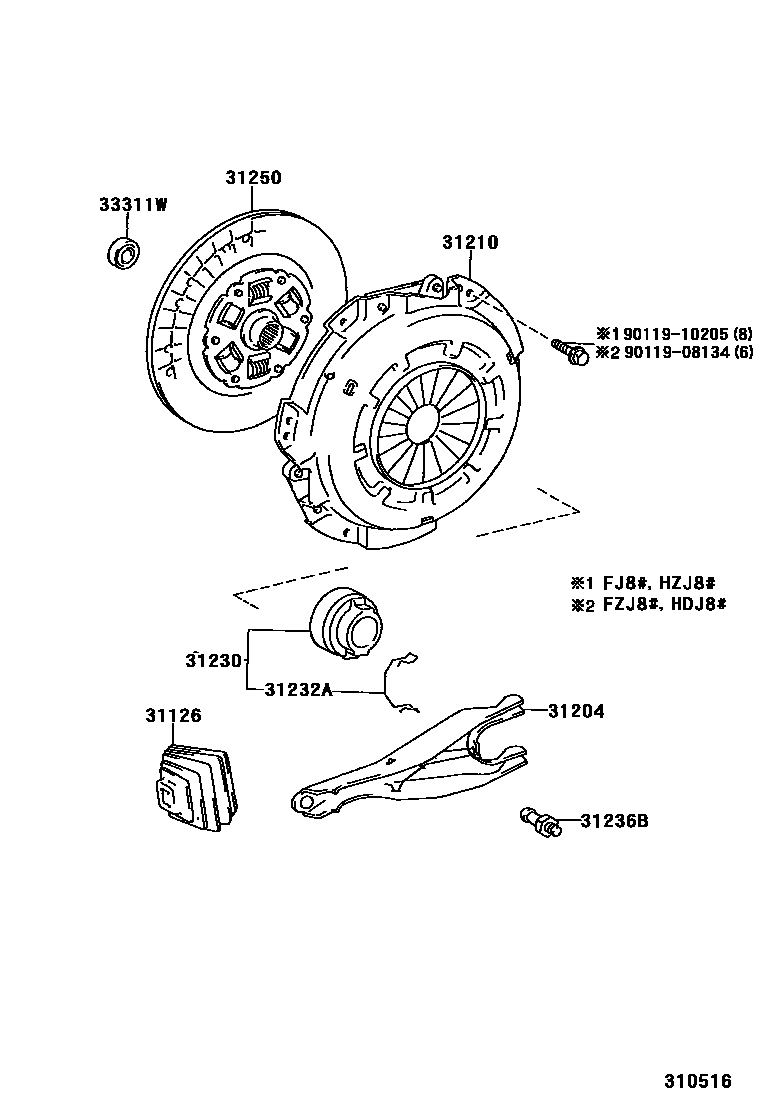

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-60050i199208-200104

main31126-60090i200104

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-36110i199208

31210COVER ASSY, CLUTCH

main31210-0W030i199608-199712

main31210-0W031i199712-200106

main31210-0W032i200106

main31210-36160i199208-200103

main31210-60100i199001-199208

main31210-60120i199208-199501

main31210-60160i199208-200103

31230BEARING ASSY, CLUTCH RELEASE

main31230-36160i199001-199208

main31230-60120i199208-200103

main31230-60130i199208-199501

main31230-60150i199208-199608

main31230-60180i199501-200108

main31230-60181i200108

31232ACLIP, RELEASE BEARING HUB

main31232-36010i199001-199208

main31232-36020i199001-199208

31236BSUPPORT, RELEASE FORK

main31236-35030i199001-199208

31250DISC ASSY, CLUTCH

main31250-0W030i199608-200411

main31250-0W031i200411

main31250-60230i199001-199208

main31250-60231i199412-200012

main31250-60232i200012-200103

main31250-60270i199001-199208

main31250-60280i199208-199412

main31250-60282i199412-200004

main31250-60283i200004-200103

main31250-60300i199201-199208

main31250-60310i199208-199412

main31250-60311i199412-199608

33311WBEARING (FOR INPUT SHAFT)

main90363-15004i199001-199208

main90363-15017i199001-199208

9011908134

main90119-08134

9011910205

main90119-10205

10 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota LAND CRUISER

This section contains 10 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota LAND CRUISER. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
