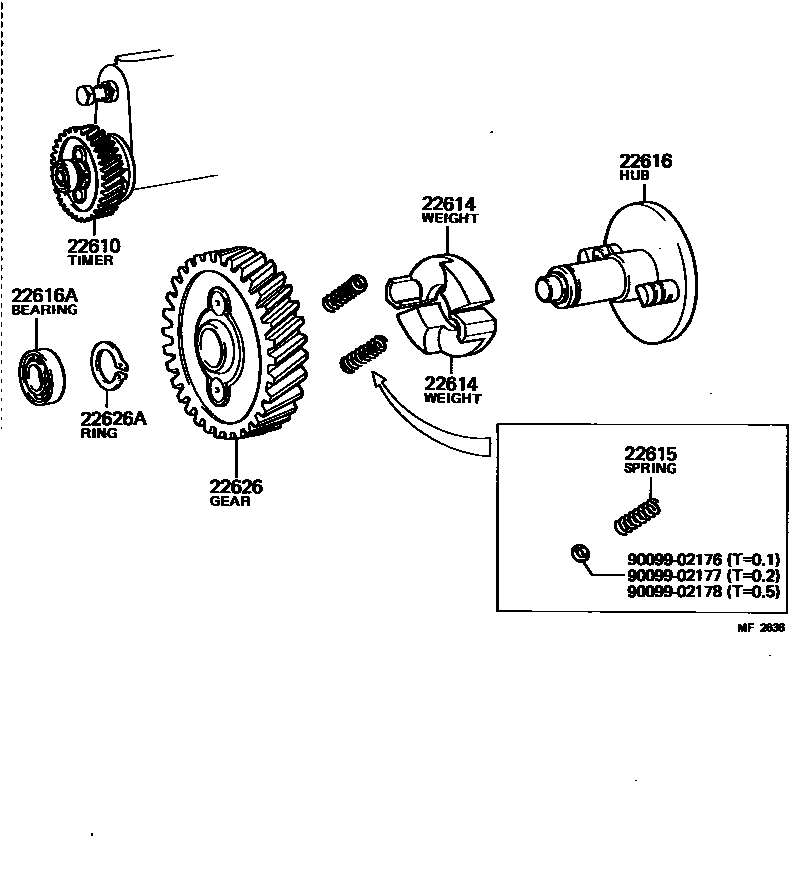

Toyota LAND CRUISER — AUTOMATIC TIMER
22610TIMER ASSY, AUTOMATIC
22614WEIGHT, TIMER
COLD SPEC
22615SPRING, TIMER
22616HUB, TIMER
22616ABEARING(FOR TIMER HUB)
22626GEAR, DRIVE
22626ARING, CLAMP(FOR DRIVE GEAR)
9009902176
main90099-02176
9009902177
main90099-02177
9009902178
main90099-02178
10 parts on this diagram · 3 diagrams in section
AUTOMATIC TIMER for Toyota LAND CRUISER
This section contains 31 genuine Toyota parts for the AUTOMATIC TIMER system of the Toyota LAND CRUISER. Key components include: TIMER ASSY, AUTOMATIC, FLANGE, TIMER DRIVING, WEIGHT, TIMER, SPRING, TIMER, HUB, TIMER.
