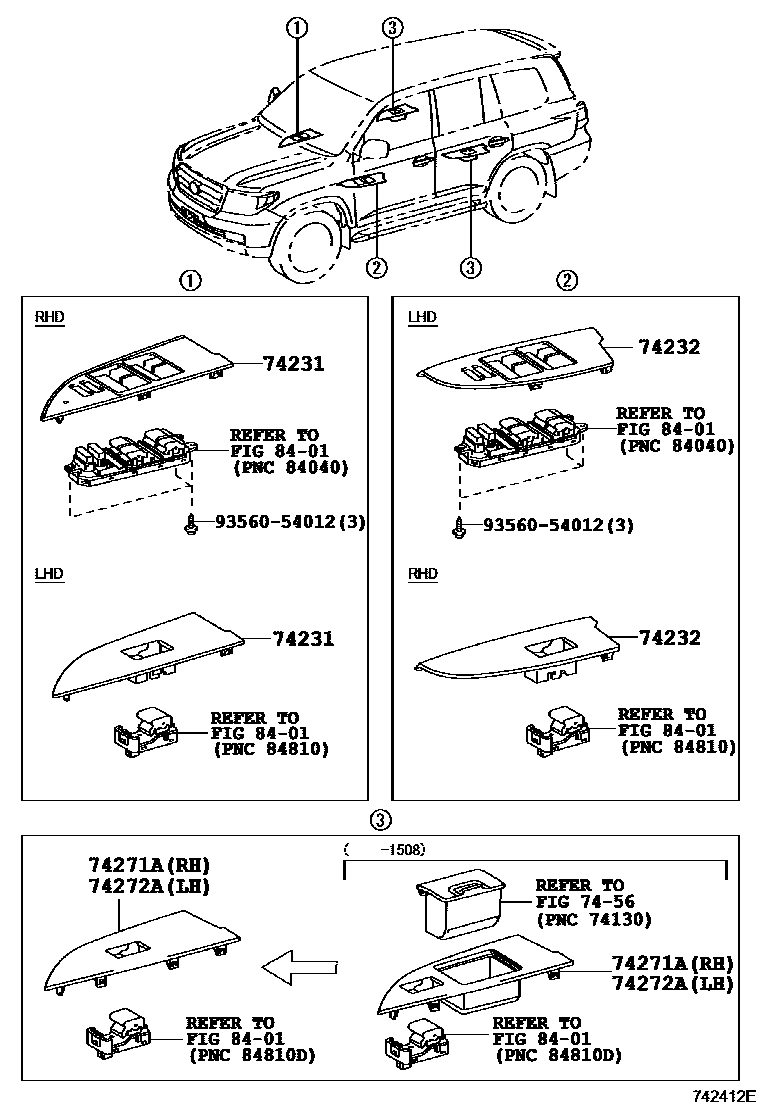

Toyota LAND CRUISER — ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-60530-C0iGRJ200..08S..5FC; GRJ200..09S..GX;VDJ200..LHD..GX;GRJ200,URJ202..LHD..(5F,6FC)..GX..LUB201201-201508
BLACK,TRIM0#,1#; BLACK,TRIM0#,1#,2#
main74231-60540-C0iVDJ200..RHD..(05S,08S)..GX;GRJ200,UZJ200..RHD..08S..GX; VDJ200..RHD..09S..G200709-201201
BLACK,TRIM1#; BLACK,TRIM1#,4#
BLACK,TRIM1#
main74231-60A30iVDJ200..05S..GCC;VDJ200..LHD..5F..GEN;VDJ200..09S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-60510-C0iGRJ200,UZJ200,VDJ200..LHD..(05S,08S)..GX; GRJ200,VDJ200..LHD..09S..G200709-201201
BLACK,TRIM1#; BLACK,TRIM1#,4#
main74232-60520-C0iVDJ200..RHD..(05S,08S)..GX;GRJ200,UZJ200..RHD..08S..GX; VDJ200..RHD..09S..G200709-201201
BLACK,TRIM1#; BLACK,TRIM1#,4#
BLACK,TRIM1#
main74232-60A10iVDJ200..ARL..LUB;VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..RHD..(GX,VXR)201508-202104
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-60180-C0iGRJ200,VDJ200..09S..G; GRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX;GRJ200,UZJ200..08S..GX200709-201201
BLACK,TRIM1#; BLACK,TRIM1#,4#
main74271-60420iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-60180-C0iGRJ200,VDJ200..09S..G; GRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX;GRJ200,UZJ200..08S..GX200709-201201
BLACK,TRIM1#; BLACK,TRIM1#,4#
main74272-60420iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104
7456ASH RECEPTACLE
8401SWITCH & RELAY & COMPUTER
9356054012
main93560-54012
7 parts on this diagram · 3 diagrams in section
ARMREST & VISOR for Toyota LAND CRUISER
This section contains 40 genuine Toyota parts for the ARMREST & VISOR system of the Toyota LAND CRUISER. Key components include: ROOF HEADLINING & SILENCER PAD, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
