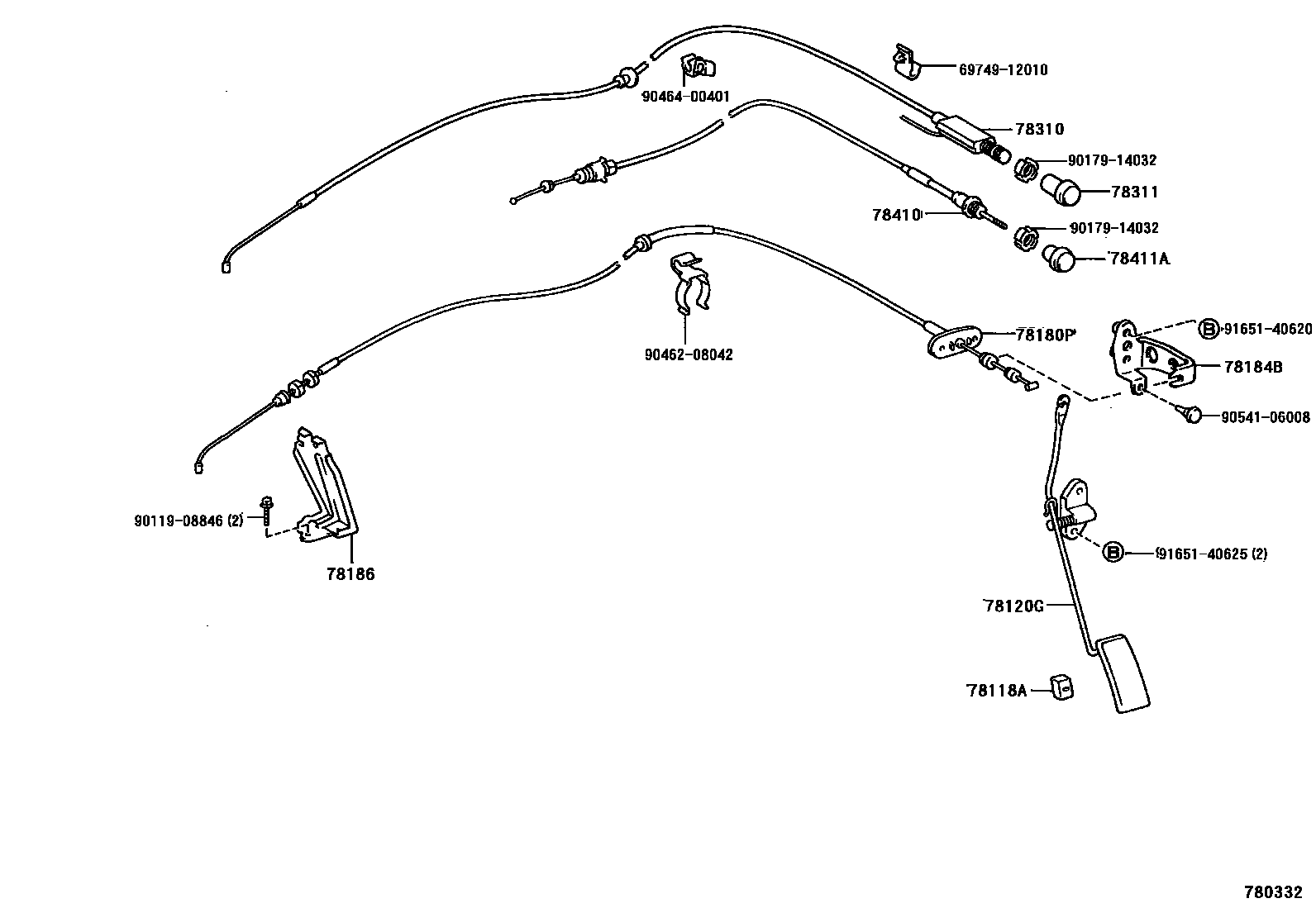

Toyota LAND CRUISER — ACCELERATOR LINK
78118ASTOPPER, ACCELERATOR PEDAL
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
W(*CRC)
W(*CRC)
W(*66)
W(*66)
W(*CRC)
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78310CABLE ASSY, CHOKE
78311KNOB, CHOKE CONTROL CABLE
78410CABLE ASSY, THROTTLE CONTROL
78411AKNOB, THROTTLE CONTROL CABLE
6974912010CLAMP, FRONT DOOR LOCK LINK
main69749-12010
9011908846
main90119-08846
9017914032
main90179-14032
9046208042
main90462-08042
9046400401
main90464-00401
9054106008
main90541-06008
9165140620
main91651-40620
9165140625
main91651-40625
17 parts on this diagram · 14 diagrams in section
ACCELERATOR LINK for Toyota LAND CRUISER
This section contains 71 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, COVER, AUTO DRIVE ACCELERATOR LINK.
