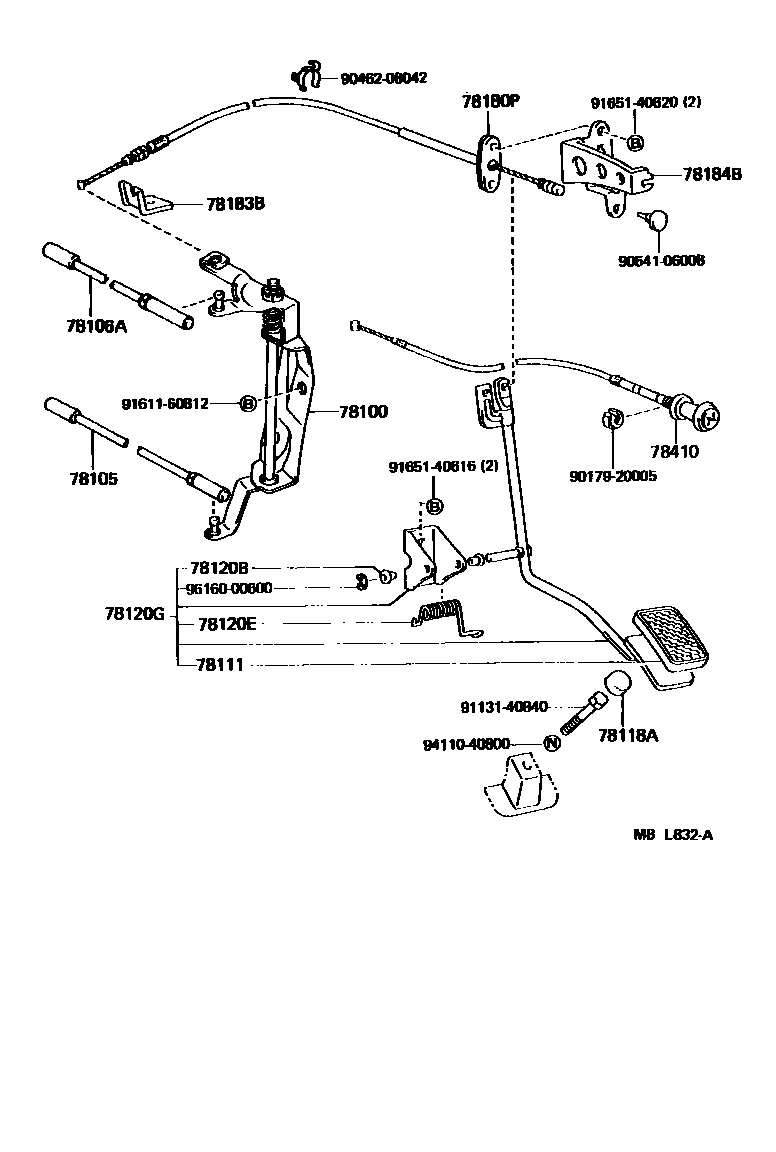

Toyota LAND CRUISER — ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78106AROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78111PEDAL, ACCELERATOR
78118ASTOPPER, ACCELERATOR PEDAL
78120BBUSH (FOR ACCELERATOR LINK ROD)
78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)
78120GROD ASSY, ACCELERATOR PEDAL
W(THROTTLE CONTROL KNOB)
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78410CABLE ASSY, THROTTLE CONTROL
9017920005
main90179-20005
9046208042
main90462-08042
9054106008
main90541-06008
9113140840
main91131-40840
9161160812
main91611-60812
9165140616
main91651-40616
9165140620
main91651-40620
9411040800
main94110-40800
9616000600
main96160-00600
21 parts on this diagram · 7 diagrams in section
ACCELERATOR LINK for Toyota LAND CRUISER
This section contains 41 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4, PEDAL, ACCELERATOR.
