Toyota LAND CRUISER — ACCELERATOR LINK

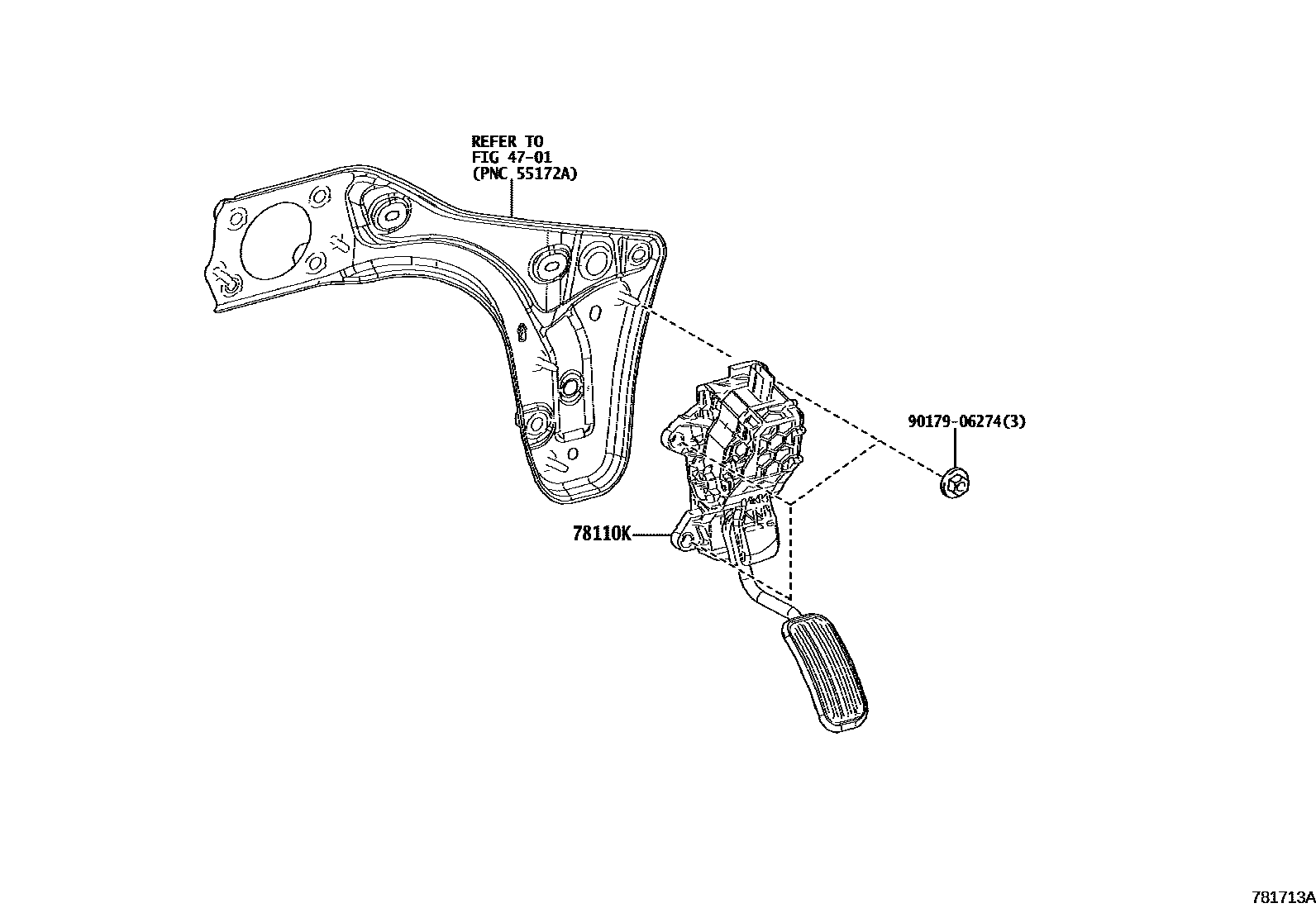

Parts diagram
4701BRAKE PEDAL & BRACKET
→ Go to FIG 47-01
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-60210i202411
main78110-60220i202411
9017906274
main90179-06274

3 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota LAND CRUISER

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
