Toyota LAND CRUISER — ACCELERATOR LINK

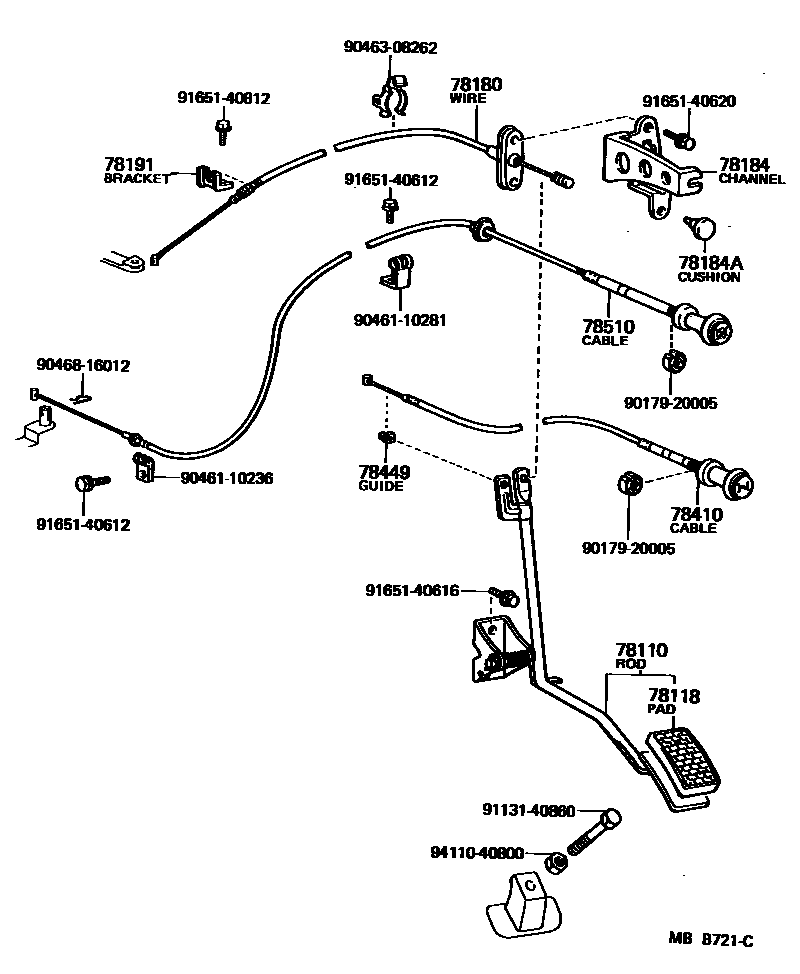

Parts diagram

78110ROD ASSY, ACCELERATOR PEDAL

main78120-90A00i198008-198411

main78120-90A01i198008-198411

W/THROTTLE BUTTON

main78120-90A02i198008-198411

main78120-90A03i198008-198411

main78120-90A04i198411-198708

main78120-90A05i198411-198708

W/THROTTLE BUTTON

main78120-90A06i198411-198708

main78120-90A08i198510-198708

78118PAD, ACCELERATOR PEDAL

main78111-95110i198008-198708

78180WIRE ASSY, ACCELERATOR

main78180-90A00i198008-198411

main78180-90A01i198008-198205

main78180-90A02i198008-198205

main78180-90A03i198008-198205

main78180-90A04i198008-198205

main78180-90A05i198205-198408

main78180-90A06i198205-198708

main78180-90A07i198205-198411

main78180-90A08i198205-198411

main78180-90A10i198411-198704

main78180-90A11i198411-198708

main78180-90A12i198411-198510

main78180-90A13i198411-198708

main78180-90A14i198411-198708

main78180-90A15i198411-198708

main78180-90A19i198411-198704

main78180-90A20i198408-198411

main78180-90A21i198510-198708

main78180-90A22i198510-198708

main78180-90A23i198510-198708

main78180-90A26i198704-198708

main78180-90A27i198704-198708

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78184-90A00i198008-198411

main78184-90A01i198411-198510

main78184-90A02i198510-198708

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008i198008-198708

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78183-90A00i198008-198411

78410CABLE ASSY, THROTTLE CONTROL

main78410-90A00i198008-198411

main78410-90A01i198008-198411

main78410-90A02i198008-198708

main78410-90A04i198103-198410

ENGLAND SPEC

main78410-90A05i198410-198708

ENGLAND SPEC

main78410-90A06i198411-198708

*FRG

78449GUIDE, THROTTLE CABLE

main78449-90300i198008-198507

78510CABLE ASSY, STOP

main78510-90A00i198008-198110

main78510-90A01i198008-198411

main78510-90A02i198008-198110

main78510-90A03i198008-198411

9017920005

main90179-20005

9046110236

main90461-10236

9046110281

main90461-10281

9046308262

main90463-08262

9046816012

main90468-16012

9113140860

main91131-40860

9165140612

main91651-40612

9165140616

main91651-40616

9165140620

main91651-40620

9165140812

main91651-40812

9411040800

main94110-40800

20 parts on this diagram · 14 diagrams in section

ACCELERATOR LINK for Toyota LAND CRUISER

This section contains 67 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LAND CRUISER. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, SPRING (FOR ACCELERATOR CONNECTING ROD, NO.1), ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, ROD ASSY, ACCELERATOR PEDAL.
