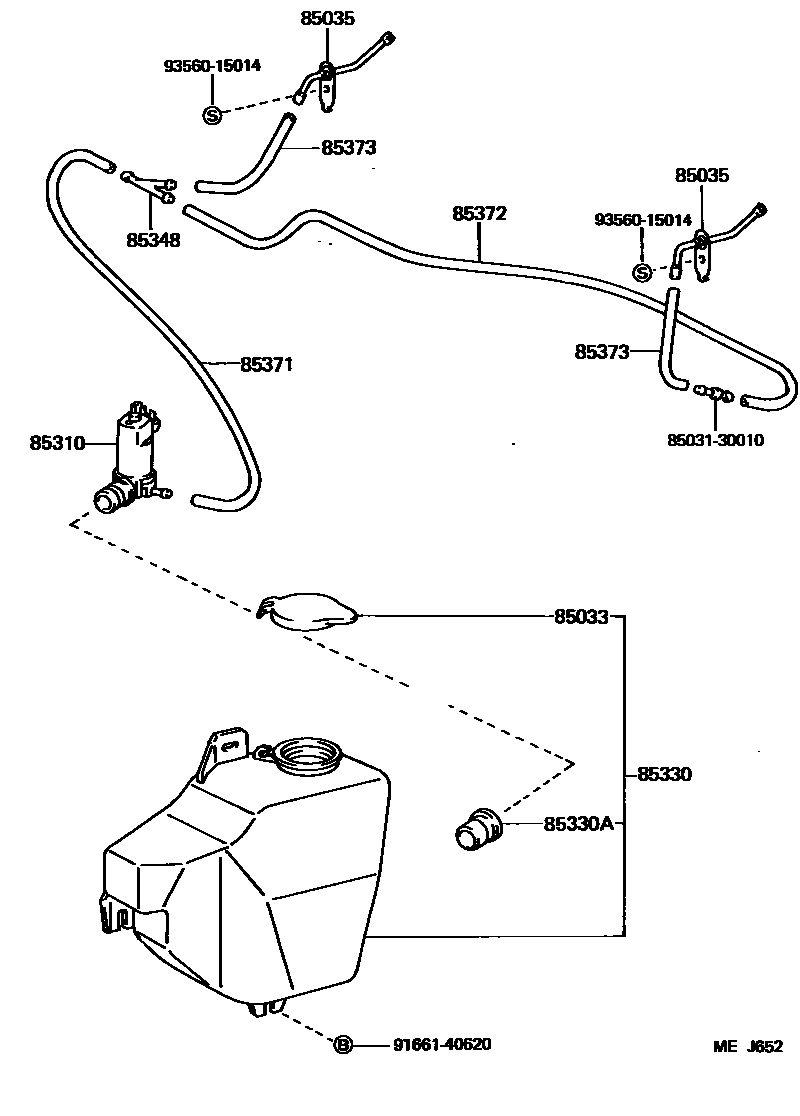

Toyota LAND CRUISER — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-90A00i198708-199001

85035NOZZLE SUB-ASSY, WASHER

main85341-90A03i198708-199001

main85341-90A04i198902-199001

COLD SPEC OR NORWAY SPEC,LH; COLD SPEC OR SWEDEN SPEC,LH; COLD SPEC,LH

main85341-90A06i198708-199001

main85341-90A07i198902-199001

COLD SPEC OR NORWAY SPEC,RH; COLD SPEC OR SWEDEN SPEC,RH; COLD SPEC,RH

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198808-199001

main85310-90B00i198708-199001

85330JAR ASSY, WINDSHIELD WASHER

main85330-90A06i198708-199001

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198708-199001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i198708-199001

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299i198902-199001

L=1000,COLD SPEC; L=1000,COLD SPEC OR NORWAY SPEC; L=1000,COLD SPEC OR SWEDEN SPEC

main90446-06013i198708-199001

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i198708-198902

L=1000,COLD SPEC

main95420-04600i198708-199001

*H,L=600

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2i198708-198902

L=1000,COLD SPEC

main95420-04140×2i198708-199001

*H,L=140

8503130010VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30010

9166140620

main91661-40620

9356015014

main93560-15014

12 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota LAND CRUISER

This section contains 12 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LAND CRUISER. Key components include: CAP ASSY, WINDSHIELD WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
