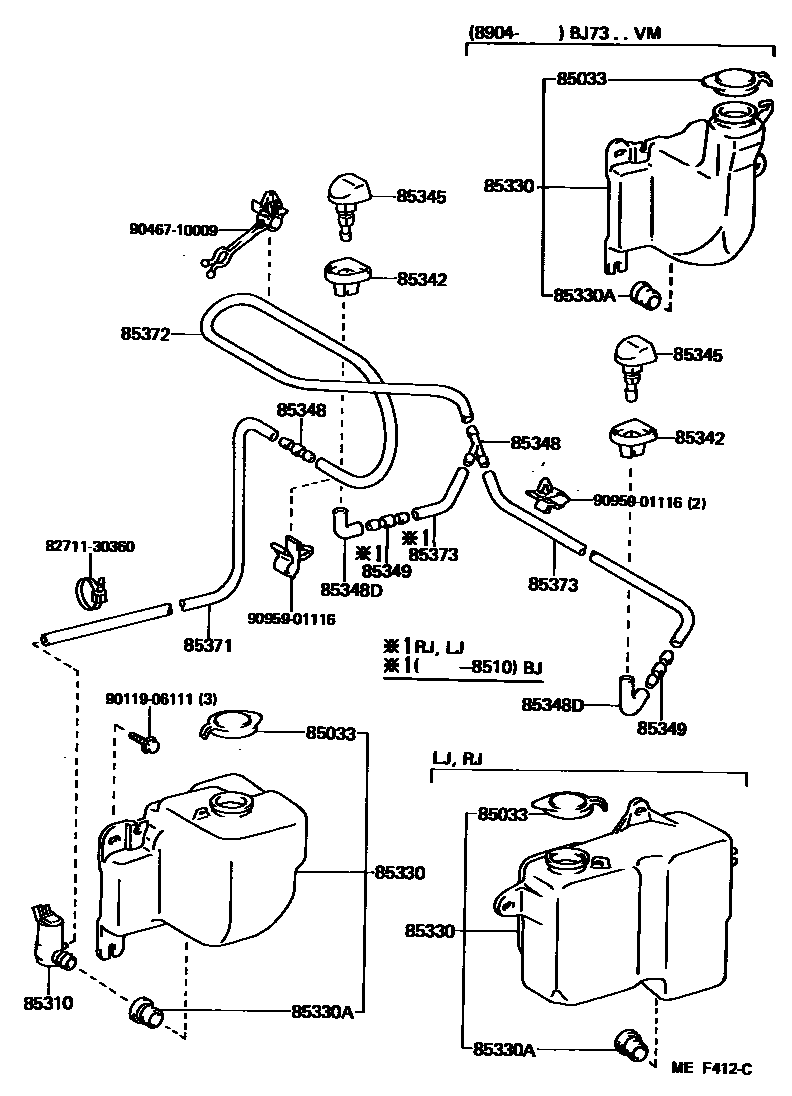

Toyota LAND CRUISER — WINDSHIELD WASHER
85033CAP ASSY, WINDSHIELD WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
12V
24V
85330ABUSH, WINDSHIELD WASHER JAR
85342HOLDER, WASHER NOZZLE
85345NOZZLE, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3 WAY
2 WAY
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=2000,*H,L=1260
L=2000,*H,L=1150
L=1000(*H,L=360)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=610)
L=600(*H,L=560)
L=1450(*H,L=260)
L=1000(*H,L=315)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1800(*H,L=680)
L=650
L=1800(*H,L=140)
L=1000(*H,L=700)
L=1450(*H,L=600)
8271130360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-30360
9011906111
main90119-06111
9046710009
main90467-10009
9095901116
main90959-01116
16 parts on this diagram · 1 diagram in section
