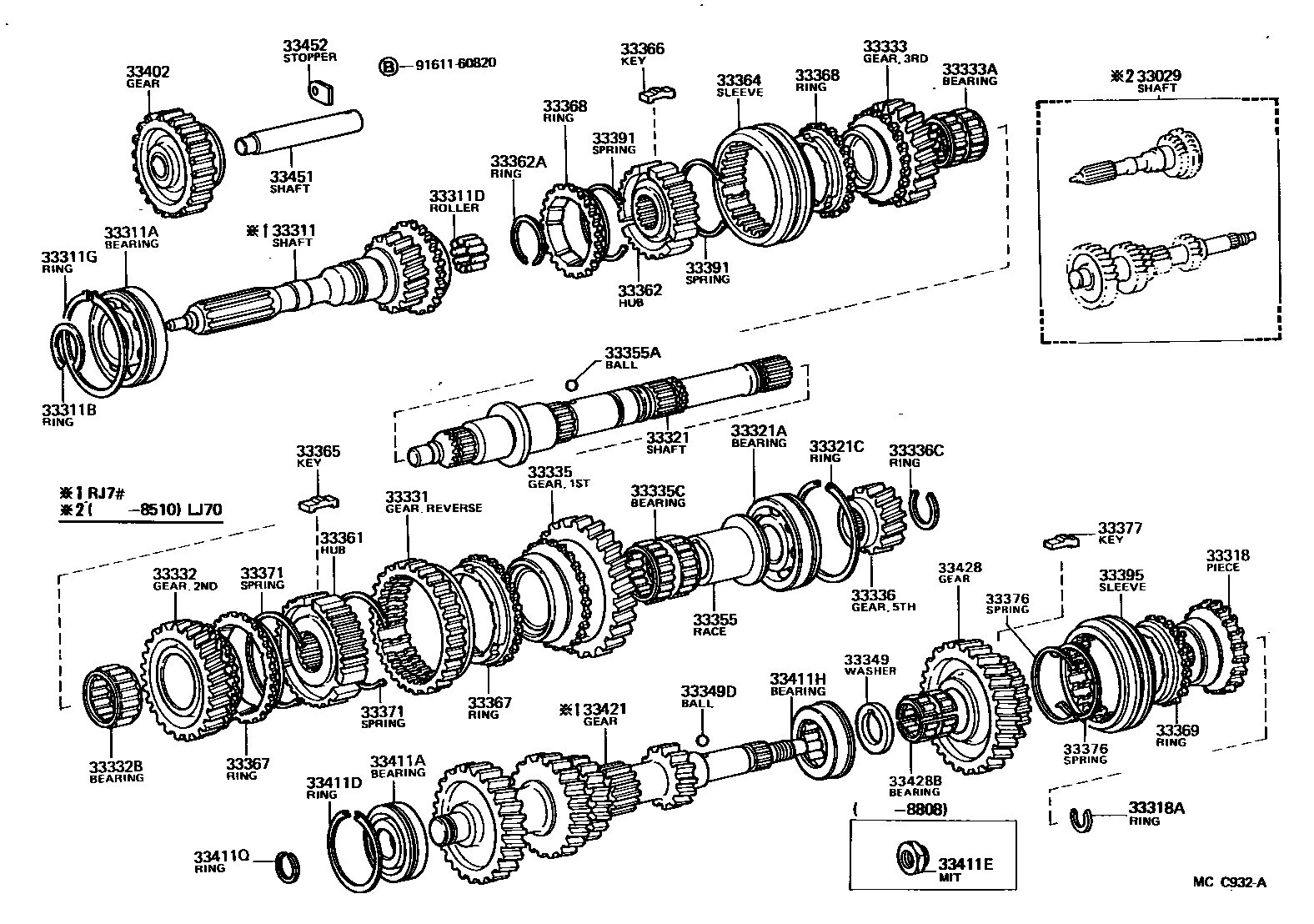

Toyota LAND CRUISER — TRANSMISSION GEAR (MTM)
33029SHAFT SET, INPUT
sub33029-28030
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30,MARK 5,T=2.30
T=3.31-3.42,T=3.31-3.42
T=3.20-3.31,T=3.20-3.31
T=2.10,MARK A,T=2.10
T=2.15,MARK B,T=2.15
T=2.20,MARK C,T=2.20
T=2.25,MARK D,T=2.25
T=2.30,MARK E,T=2.30
T=2.35,MARK F,T=2.35
T=2.40,MARK G,T=2.40
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318ARING, SHAFT SNAP(FOR GEAR SPLINE PIECE NO.5)
T=2.85,T=2.85,MARK A
T=2.90,T=2.90,MARK B
T=2.95,T=2.95,MARK C
T=3.00,T=3.00,MARK D
T=3.05,T=3.05,MARK E
T=3.10,T=3.10,MARK F
T=3.15,T=3.15,MARK G
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
T=1.65,ID=81.4
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.67-2.72,MARK A,T=2.67
T=2.73-2.78,MARK B,T=2.73
T=2.79-2.84,MARK C,T=2.79
T=2.85-2.90,MARK D,T=2.85
T=2.91-2.96,MARK E,T=2.91
T=2.97-3.02,MARK F,T=2.97
T=3.03-3.08,MARK G,T=3.03
T=3.09-3.14,MARK H,T=3.09
T=3.15-3.20,MARK J,T=3.15
T=3.21-3.26,MARK K,T=3.21
T=3.27-3.32,MARK L,T=3.27
33349DBALL (FOR 5TH GEAR THRUST WASHER)
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.85-1.90,MARK D-1,T=1.85
T=1.95-2.00,MARK E-1,T=1.95
T=1.75-1.80,MARK C-1,T=1.75
T=2.05-2.10,MARK F-1,T=2.05
T=1.80-1.85,MARK D,T=1.80
T=1.90-1.95,MARK E,T=1.90
T=2.00-2.05,MARK F,T=2.00
T=2.40-2.45,T=2.40
T=2.45-2.50,T=2.45
T=2.50-2.55,T=2.50
T=2.55-2.60,T=2.55
T=2.60-2.65,T=2.60
T=2.65-2.70,T=2.65
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-26020
sub33214-26020
sub33214-35040
sub33231-35070
sub33244-35050
sub33245-26010
sub33245-35080
sub90105-06143
sub33395-60030
sub33395-60010
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.05,MARK 0,T=2.05
T=2.15,MARK 2,T=2.15
T=2.25,MARK 4,T=2.25
T=1.07,OD=55.6
T=1.07,OD=62
33411ENUT(FOR COUNTER GEAR SHAFT)
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A,T=2.00
T=2.05,MARK B,T=2.05
T=2.10,MARK C,T=2.10
T=2.15,MARK D,T=2.15
T=2.20,MARK E,T=2.20
T=2.10-2.15,T=2.10
T=2.20-2.25,T=2.20
T=2.05-2.10,T=2.05
T=2.15-2.20,T=2.15
T=2.25-2.30,T=2.25
T=2.30-2.35,T=2.35
33421GEAR, COUNTER
sub33421-60160
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
33428BBEARING (FOR COUNTER 5TH GEAR)
33452STOPPER, REVERSE IDLER GEAR SHAFT
9161160820
main91611-60820
