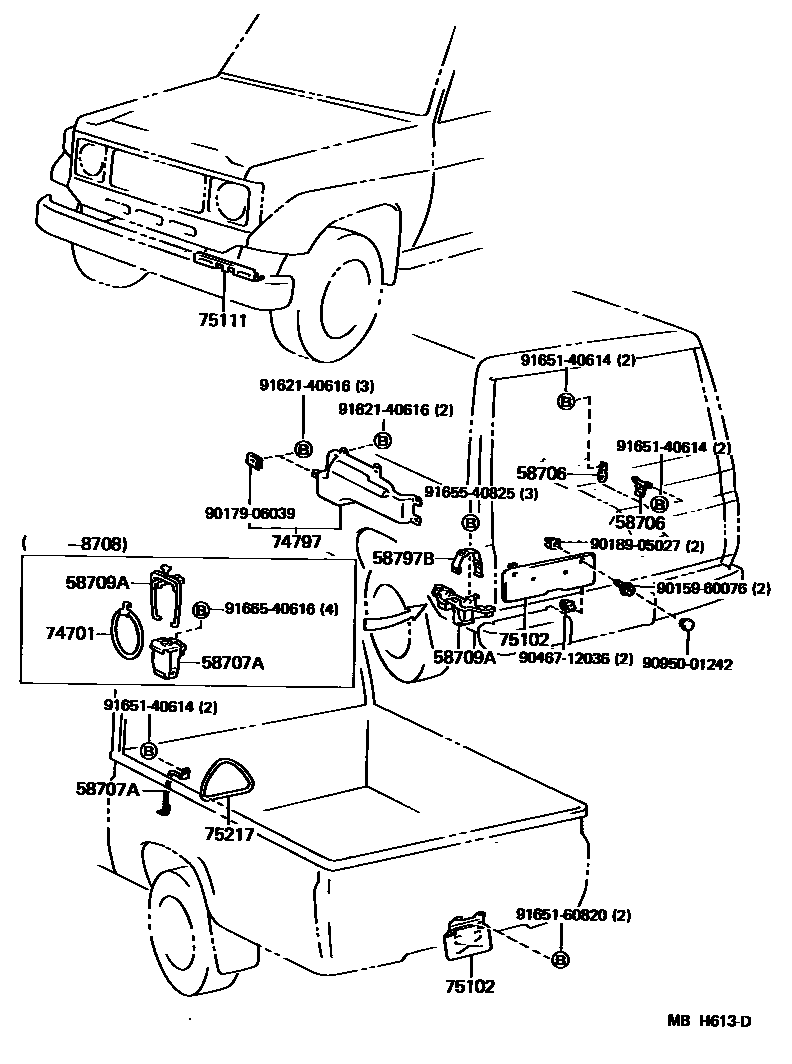

Toyota LAND CRUISER — TOOL BOX & LICENSE PLATE BRACKET

58706BRACKET SUB-ASSY, JACK HANDLE

main58706-90K00iBJ75..HT198411-199001

RR

main58796-90K00iBJ75..HT198411-199001

FR

58707AHOLDER SUB-ASSY, JACK

main58707-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-198708

main58707-90K01iBJ75..PIC198411-199001

58709ACARRIER SUB-ASSY, JACK

main58708-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-198708

main58709-90K01iBJ70,71,73,LJ7#,RJ7#198708-199001

sub58709-60010

main58709-90K02iBJ75..HT198708-199001

sub58709-60010

58797BBAND, JACK CLAMP

main58797-90K02iBJ7#,LJ7#,RJ7#..HT,SOT198708-199001

74701CLAMP SUB-ASSY, TOOL BAG

main58705-90K00iBJ70,71,73,LJ7#,RJ7#198411-198708

74797BOX, WARNING REFLECTOR

main74797-90K00iBJ73,LJ73,RJ73198411-199001

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-90K00iBJ70,71,73,LJ7#,RJ7#198510-199001

sub75102-60080

main75122-60040iBJ75..PIC198411-199001

75111BRACKET, FRONT LICENSE PLATE

main75111-60030iBJ7#,LJ7#,RJ7#198411-198910

sub75111-60050

main75111-60050iBJ7#,LJ7#,RJ7#..LX,STD198910-199001

75217BAND, TOOL BAG

main75217-90300iBJ75..PIC198411-199001

9015960076

main90159-60076

9017906039

main90179-06039

9018905027

main90189-05027

9046712036

main90467-12036

9095001242

main90950-01242

9162140616

main91621-40616

9165140614

main91651-40614

9165160820

main91651-60820

9165540825

main91655-40825

9166540616

main91665-40616

19 parts on this diagram · 1 diagram in section
