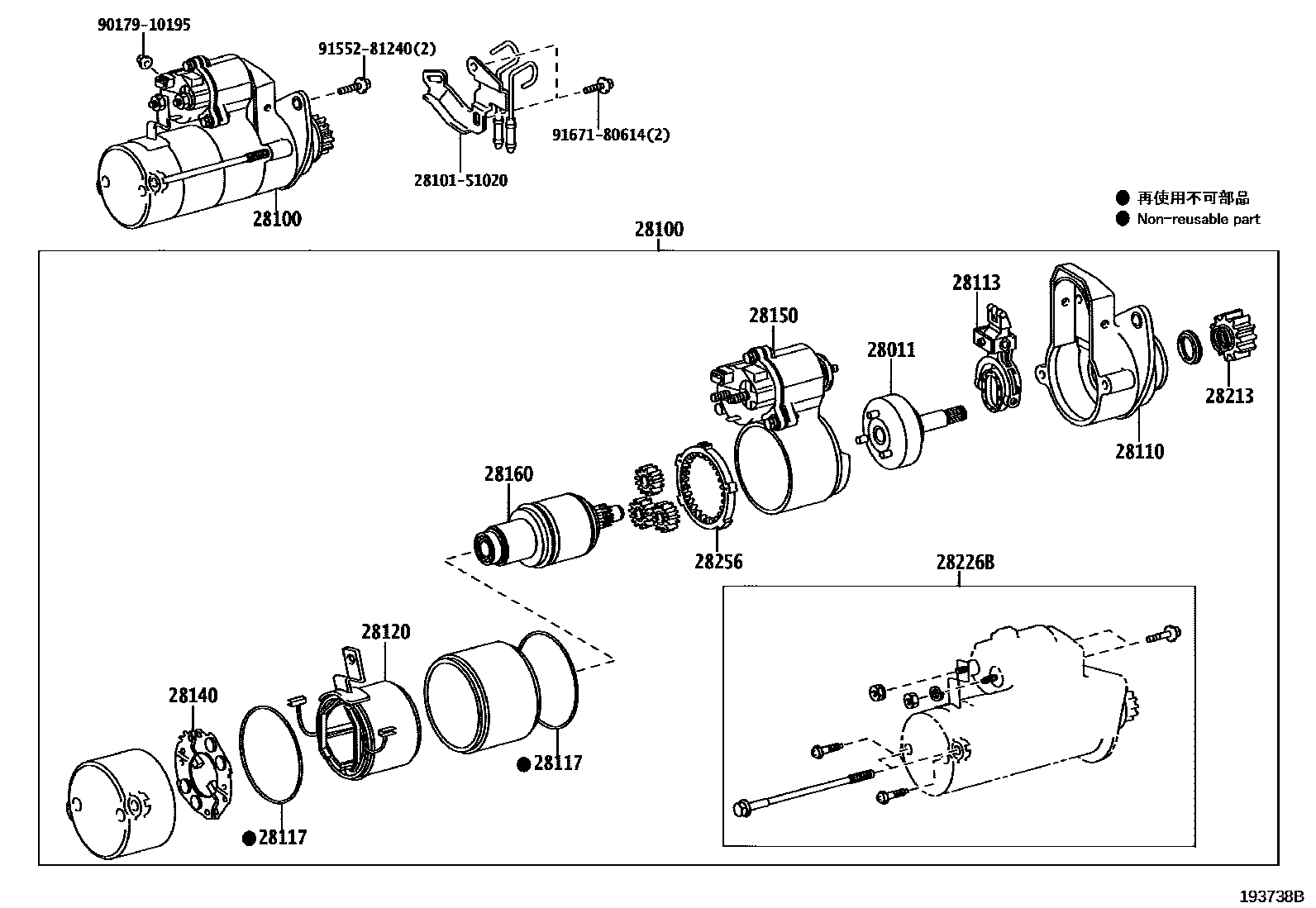

Toyota LAND CRUISER — STARTER

0001 112V 2.7KW 0002 112V 2.0KW 0003 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-50100i2UZFE..UZJ200200709-201201

main28011-51060i1VDFTV..VDJ200200709-202104

28100STARTER ASSY

main28100-38070i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

12V 2.0KW

main28100-50101i2UZFE..UZJ200200709-201201

12V 2.0KW

main28100-51070i1VDFTV..VDJ200200709-200710

12V 2.7KW

sub28100-51071

main28100-51071i1VDFTV..VDJ200200711-201407

12V 2.7KW

sub28100-51072

main28100-51072i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S201408-202104

12V 2.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-51070i1VDFTV..VDJ200200709-200710

sub28110-51071

main28110-51071i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S200711-202104

28113LEVER, STARTER PINION DRIVE

main28113-51060i1VDFTV..VDJ200200709-202104

28117RUBBER(FOR STARTER YOKE)

main28117-51060i1VDFTV..VDJ200200709-202104

28120YOKE ASSY, STARTER

main28120-38070i1URFE..URJ202201201-202104

main28120-50070i2UZFE..UZJ200200709-201201

main28120-51060i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S200709-202104

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main28140-51060i1VDFTV..VDJ200200709-202104

main28140-54380i2UZFE..UZJ200200709-201201

28150SWITCH ASSY, MAGNET STARTER

main28150-38030i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main28150-50110i2UZFE..UZJ200200709-201201

main28150-51060i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S200709-202104

28160ARMATURE ASSY, STARTER

main28160-36110i1URFE..URJ202..VXR;1URFE..URJ202..05S201910-202104

main28160-38070i1URFE..URJ202201201-201801

main28160-38080i1URFE..URJ202201801-201910

sub28160-36110

main28160-51060i1VDFTV..VDJ200..05S;1VDFTV..VDJ200..RHD..VXR200709-202104

main28160-75120i2UZFE..UZJ200200709-201201

28213PINION, STARTER CLUTCH

main28213-51060i1VDFTV..VDJ200200709-202104

28226BSTARTER KIT, REPAIR SERVICE

main28226-51060i1VDFTV..VDJ200200709-202104

28256GEAR, STARTER INTERNAL

main28256-51060i1VDFTV..VDJ200200709-202104

2810151020BRACKET SUB-ASSY, STARTER HOSE

main28101-51020

9017910195

main90179-10195

9155281240

main91552-81240

9167180614

main91671-80614

16 parts on this diagram · 3 diagrams in section
