Toyota LAND CRUISER — SPARE WHEEL CARRIER

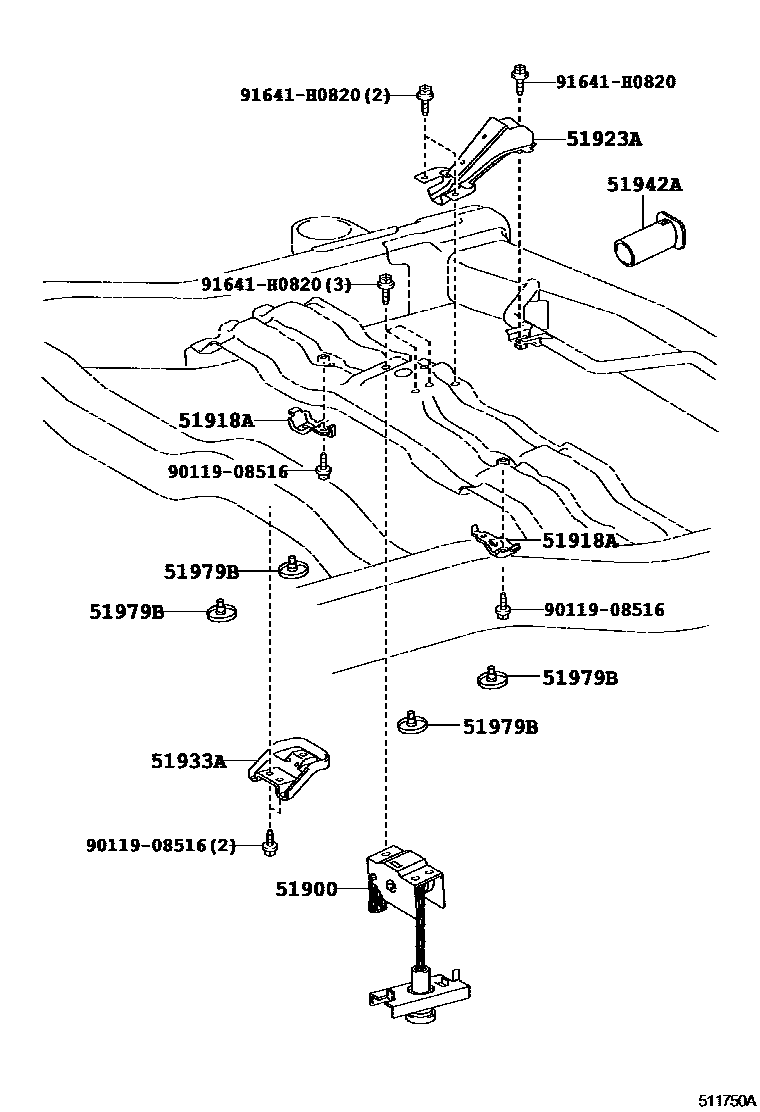

Parts diagram
51900CARRIER ASSY, SPARE WHEEL
main51900-60320i200709-201201
sub51900-60321
main51900-60320i201201-201211
TIRE & DISC WHEEL-285/65R17,8J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
sub51900-60321
main51900-60320i201201-201211
TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
sub51900-60321
main51900-60320i201201-201211
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
sub51900-60321
main51900-60321i201212-201505
TIRE & DISC WHEEL-285/65R17,8J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
sub51900-60322
main51900-60321i201212-201505
TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
sub51900-60322
main51900-60321i201212-201505
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
sub51900-60322
main51900-60322i201506-201508
TIRE & DISC WHEEL-285/65R17,8J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
main51900-60322i201506-201508
TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51900-60322i201506-202104
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51900-60322i201508-202103
FUEL TANK-WITH(SUB TANK)&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51900-60322i201508-202103
TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51900-60322i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)
main51900-60322i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
main51900-60322i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51900-60322i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
51918ASTOPPER, SPARE WHEEL CARRIER
51923AGUIDE, SPARE WHELL CARRIER HANDLE
main51923-60030i200709-201201
main51923-60030i201201-201508
TIRE & DISC WHEEL-285/65R17,8J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
main51923-60030i201201-201508
TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51923-60030i201201-202104
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51923-60030i201508-202103
FUEL TANK-WITH(SUB TANK)&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51923-60030i201508-202103
TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51923-60030i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)
main51923-60030i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
main51923-60030i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51923-60030i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
51933ASTOPPER, SPARE WHEEL, NO.1
main51933-60170i200709-201201
main51933-60170i201201-201508
TIRE & DISC WHEEL-285/65R17,8J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
main51933-60170i201201-201508
TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51933-60170i201201-202104
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51933-60170i201508-202103
FUEL TANK-WITH(SUB TANK)&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51933-60170i201508-202103
TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51933-60170i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)
main51933-60170i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
main51933-60170i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51933-60170i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
51942AHANDLE, SPARE WHEEL CARRIER BOLT
main51942-60050i200709-202104
51979BCUSHION, SPARE WHEEL CARRIER PROTECTOR
main51979-60020i200709-201201
main51979-60020i201201-201508
TIRE & DISC WHEEL-285/65R17,8J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
main51979-60020i201201-201508
TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51979-60020i201201-201508
TIRE & DISC WHEEL-285/60R18,8J ALUMINUM
main51979-60020i201201-202104
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51979-60020i201508-202103
FUEL TANK-WITH(SUB TANK)&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51979-60020i201508-202103
TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51979-60020i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)
main51979-60020i201508-202104
RUSSIA SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT& WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
main51979-60020i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main51979-60020i201508-202104
KAZAKHSTAN SPEC&TIRE & DISC WHEEL-285/65R17, 8J, ALUMINUM&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&MOON ROOF-WITH(REMOTE CONTROL)
9011908516
main90119-08516
91641H0820
main91641-H0820

8 parts on this diagram · 1 diagram in section
