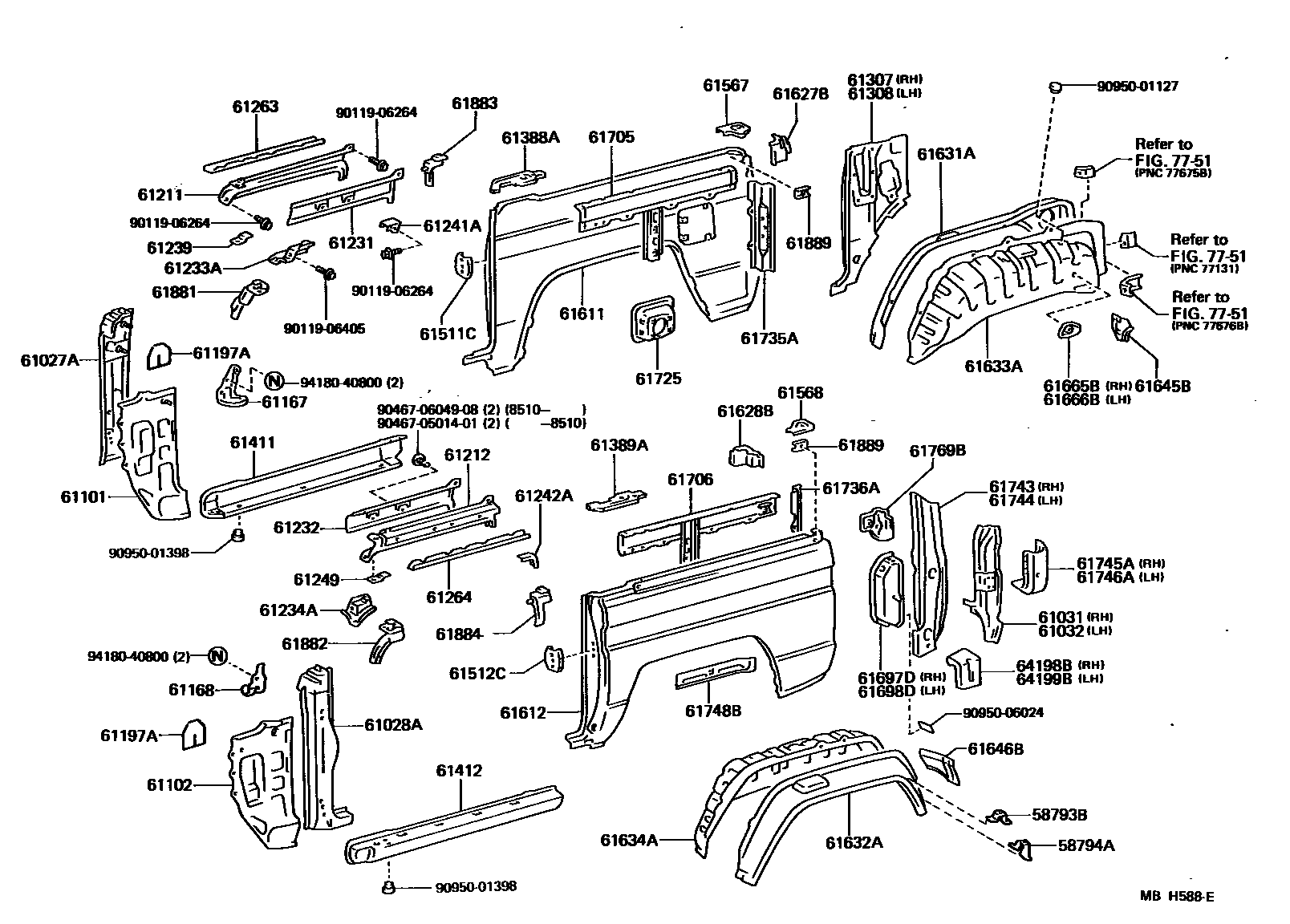

Toyota LAND CRUISER — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

58793BBRACKET, JACK CARRIER, NO.1

main58793-90K01iBJ70,71,73,LJ7#,RJ7#198708-199001

58794ABRACKET, JACK CARRIER, NO.2

main58794-90K01iBJ70,71,73,LJ7#,RJ7#198708-199001

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-90K00iBJ70,71,75,LJ70,RJ70..HT198411-199001

sub61027-60130

main61027-90K02iBJ73,LJ73,RJ73198411-199001

sub61027-60170

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-90K00iBJ70,71,75,LJ70,RJ70..HT198411-199001

sub61028-60090

main61028-90K02iBJ73,LJ73,RJ73198411-199001

sub61028-60110

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61031-90K01iBJ70,71,LJ70,RJ70..HT198411-199001

sub61031-60150

main61031-90K03iBJ73,LJ73,RJ73198411-199001

main61031-90K04iBJ75..HT198411-199001

sub61031-60100

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61032-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main61032-90K03iBJ73,LJ73,RJ73198411-199001

main61032-90K05iBJ75..HT198411-199001

sub61032-60070

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-90K03iBJ7#,LJ7#,RJ7#198411-198608

sub61101-90K14

sub91651-40614

main61101-90K14iBJ7#,LJ7#,RJ7#..LHD198608-199001

main61101-90K17iBJ70,LJ70..RHD198608-199001

sub61101-90K16

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-90K02iBJ7#,LJ70,RJ70198411-198510

sub61102-90K14

sub91651-40614

main61102-90K03iBJ7#,LJ7#,RJ7#198411-198608

W/RADIO

sub61102-90K23

sub91651-40614

main61102-90K17iBJ70,LJ70..RHD198608-199001

main61102-90K23iBJ7#,LJ7#,RJ7#..LHD198608-199001

sub61102-90K22

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-90K00iBJ7#,LJ7#,RJ7#198411-198608

main61165-90K01iBJ7#,LJ7#,RJ7#198608-199001

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-90K00iBJ7#,LJ7#,RJ7#198411-198608

main61166-90K01iBJ7#,LJ7#,RJ7#198608-199001

61197ACOVER, FRONT PILLAR, RH

main61197-90K00iBJ7#,LJ7#,RJ7#198411-199001

61211RAIL, ROOF SIDE, OUTER RH

main61211-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

sub61211-60100

main61211-90K01iLJ70..SOT198411-199001

main61211-90K02iBJ73,LJ73,RJ73198411-199001

main61211-90K03iBJ75..HT198411-199001

main61211-90K04iBJ75..PIC198411-199001

61212RAIL, ROOF SIDE, OUTER LH

main61212-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

sub61212-60100

main61212-90K01iLJ70..SOT198411-199001

main61212-90K02iBJ73,LJ73,RJ73198411-199001

main61212-90K03iBJ75..HT198411-199001

main61212-90K04iBJ75..PIC198411-199001

61231RAIL, ROOF SIDE, INNER RH

main61203-90K01iBJ75..HT198411-199001

sub61203-60010

main61231-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

sub61231-60180

main61231-90K02iBJ73,LJ73,RJ73198411-199001

61232RAIL, ROOF SIDE, INNER LH

main61204-90K01iBJ75..HT198411-199001

sub61204-60010

main61232-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main61232-90K02iBJ73,LJ73,RJ73198411-199001

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-90K00iBJ73,LJ73,RJ73198411-199001

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-90K00iBJ73,LJ73,RJ73198411-199001

61239RETAINER, ROOF SIDE RAIL OUTER, RH

main61239-90K00iBJ73,LJ73,RJ73198411-199001

61241AGUSSET, ROOF SIDE RAIL, REAR RH

main61241-90K00iBJ73,LJ73,RJ73198411-199001

61242AGUSSET, ROOF SIDE RAIL, REAR LH

main61242-90K00iBJ73,LJ73,RJ73198411-199001

61249RETAINER, ROOF SIDE RAIL, OUTER LH

main61249-90K00iBJ73,LJ73,RJ73198411-199001

61263CHANNEL, ROOF DRIP, REAR RH

main61267-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main61267-90K01iLJ70..SOT198411-199001

main61267-90K02iBJ75..HT198411-199001

61264CHANNEL, ROOF DRIP, REAR LH

main61268-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main61268-90K01iLJ70..SOT198411-199001

main61268-90K02iBJ75..HT198411-199001

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main61307-90K09iLJ70..SOT198411-199001

main61307-90K10iBJ73,LJ73,RJ73198411-199001

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-90K00iBJ70,71,LJ70,RJ70..HT198411-199001

main61308-90K09iLJ70..SOT198411-199001

main61308-90K10iBJ73,LJ73,RJ73198411-199001

61388APLATE, CENTER BODY PILLAR END, RH

main61388-90K00iLJ70..SOT198411-199001

61389APLATE, CENTER BODY PILLAR END, LH

main61389-90K00iBJ73,LJ73,RJ73198411-199001

61411PANEL, ROCKER, OUTER RH

main61401-90K00iBJ70,71,LJ70,RJ70198411-199001

main61401-90K01iBJ75198411-199001

main61401-90K02iBJ73,LJ73,RJ73198411-199001

61412PANEL, ROCKER, OUTER LH

main61402-90K00iBJ70,71,LJ70,RJ70198411-199001

main61402-90K01iBJ75..HT198411-199001

main61402-90K02iBJ73,LJ73,RJ73198411-199001

61511CREINFORCEMENT, QUARTER LOCK PILLAR, RH

main61503-20030iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61512CREINFORCEMENT, QUARTER LOCK PILLAR, LH

main61503-20030iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61567PLATE, QUARTER PANEL END, RH

main61567-90K01iBJ73,LJ73,RJ73198411-199001

main61567-90K02iLJ70..SOT198411-199001

61568PLATE, QUARTER PANEL END, LH

main61568-90K01iBJ73,LJ73,RJ73198411-199001

main61568-90K02iLJ70..SOT198411-199001

61611PANEL, QUARTER, RH

main61611-90K07iLJ70,RJ70..HT198411-198602

*FRG

sub61611-90K17

main61611-90K08iLJ70..SOT198411-199001

sub60161-60290

main61611-90K09iBJ73,LJ73,RJ73198411-199001

sub60161-60250

main61611-90K10iBJ75..HT198411-199001

sub60161-60320

main61611-90K11iBJ70,71,LJ70,RJ70..HT198601-199001

W/OVER FENDER

sub60161-90K00

main61611-90K12iBJ70,71,LJ70,RJ70..HT198510-198601

W/OVER FENDER

sub61611-90K11

main61611-90K14iBJ73,LJ73,RJ73..LX,STD198411-199001

W/OVER FENDER

sub60161-60280

main61611-90K17iBJ70,71,LJ70,RJ70..HT..(LX,STD)198411-199001

sub60161-90K01

main61611-90K18iLJ70..SOT198510-199001

W/OVER FENDER

sub60161-60300

main61611-90K19iLJ73198710-199001

*FRG

sub60161-60270

61612PANEL, QUARTER, LH

main61612-90K07iLJ70,RJ70..HT198411-198601

*FRG

sub61612-90K35

main61612-90K08iLJ70..SOT198411-199001

sub60162-60230

main61612-90K09iBJ73,LJ73,RJ73198411-199001

sub60162-60190

main61612-90K11iBJ75..HT198411-199001

sub60162-60250

main61612-90K23iBJ70,71,LJ70,RJ70..HT198601-199001

W/OVER FENDER

sub60162-90K01

main61612-90K24iBJ70,71,LJ70,RJ70..HT198510-198601

W/OVER FENDER

sub61612-90K23

main61612-90K29iBJ73,LJ73,RJ73198510-199001

W/OVER FENDER

sub60162-60200

main61612-90K35iLJ70..LHD..VX198411-199001

sub60162-90K02

main61612-90K35iBJ70,LJ70,RJ70..HT198601-198602

*FRG

sub60162-90K02

main61612-90K36iLJ70..SOT198510-199001

W/OVER FENDER

sub60162-60240

main61612-90K37iLJ73198710-199001

*FRG

sub60162-60220

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-90K00iLJ70..SOT198411-199001

main61627-90K01iBJ73,LJ73,RJ73198411-199001

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-90K00iLJ70..SOT198411-199001

main61628-90K01iBJ73,LJ73,RJ73198411-199001

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-90K01iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

sub61631-60110

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-90K01iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

sub61632-60110

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

sub61634-60030

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-12010iBJ70,71,LJ70,RJ70198411-199001

main61665-90K00iBJ75..HT198411-199001

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61665-12010iBJ70,71,LJ70,RJ70198411-199001

main61666-90K00iBJ75..HT198411-199001

61697DHOUSING, QUARTER PANEL END, RH

main61065-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61698DHOUSING, QUARTER PANEL END, LH

main61066-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-90K00iBJ70,71,LJ70,RJ70..HT198411-198708

W/O RR SEAT

sub61705-90K58

main61705-90K01iBJ70..LHD198608-198708

*SWZ,W/PARALLEL SEAT

sub61705-90K59

main61705-90K03iBJ70,LJ70,RJ70..HT198411-198510

sub61705-90K19

main61705-90K05iLJ70..SOT198411-198608

sub61705-90K32

main61705-90K07iBJ73,LJ73,RJ73198411-198608

sub61705-90K34

main61705-90K09iBJ75..HT198411-198608

sub61705-90K38

main61705-90K15iBJ75..HT198411-198608

W/*FFRS

sub61705-90K40

main61705-90K19iBJ70,71,LJ70,RJ70..HT198510-198708

sub61705-90K61

main61705-90K19iBJ70,LJ70,RJ70..HT198411-198510

W/SUN ROOF

sub61705-90K61

main61705-90K21iBJ75..HT198411-198608

W/O RR SEAT

sub61705-90K36

main61705-90K29iLJ70..SOT198608-199001

main61705-90K32iLJ70..SOT198608-199001

W/O RR SEAT

sub61705-90K29

main61705-90K34iBJ73..STD,VM198608-199001

sub61705-90K56

main61705-90K36iBJ75..HT198608-199001

W/O RR SEAT

sub61705-60620

main61705-90K38iBJ75..HT198608-199001

sub61705-60630

main61705-90K40iBJ75..HT198608-199001

W/*FFRS

sub61705-60650

main61705-90K50iLJ70..LHD..VX198708-199001

W/O RR SEAT,*RW

main61705-90K51iRJ70..EFI198708-199001

*SWZ,W/PARALLEL SEAT,*RW

main61705-90K53iBJ70,71,LJ70,RJ70..HT198708-199001

W/*RW

main61705-90K55iBJ73..LX,STD198708-198808

*SWZ,W/PARALLEL SEAT,*RW

main61705-90K56iBJ73,LJ73,RJ73198708-199001

W/*RW

sub61705-60250

main61705-90K58iBJ70,LJ70,RJ70..HT..STD198708-199001

W/O RR SEAT

sub61705-90K50

main61705-90K59iBJ70..LHD..STD198708-198808

*SWZ,W/PARALLEL SEAT

sub61705-90K51

main61705-90K61iBJ70,LJ70,RJ70..HT..STD198708-199001

sub61705-90K53

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-90K00iBJ70,71,LJ70,RJ70..HT198411-198708

W/O RR SEAT

sub61706-90K46

main61706-90K01iBJ70..LHD198608-198708

*SWZ,W/PARALLEL SEAT

sub61706-90K47

main61706-90K03iBJ70,LJ70,RJ70..HT198411-198510

sub61706-90K18

main61706-90K05iLJ70..SOT198411-198608

sub61706-90K30

main61706-90K07iBJ73,LJ73,RJ73198411-198608

sub61706-90K32

main61706-90K09iBJ75..HT198411-198608

sub61706-90K36

main61706-90K14iBJ75..HT198411-198608

W/*FFRS

sub61706-90K38

main61706-90K18iBJ70,LJ70,RJ70..HT198411-198510

W/SUN ROOF

main61706-90K18iBJ70,71,LJ70,RJ70..HT198510-198708

main61706-90K20iBJ75..HT198411-198608

W/O RR SEAT

sub61706-90K34

main61706-90K27iLJ70..SOT198608-198708

sub61706-90K51

main61706-90K30iLJ70..SOT198608-198708

W/O RR SEAT

main61706-90K32iBJ73,LJ73198608-198708

main61706-90K34iBJ75..HT198608-199001

W/O RR SEAT

sub61706-60560

main61706-90K36iBJ75..HT198608-199001

sub61706-60570

main61706-90K38iBJ75..HT198608-199001

W/*FFRS

sub61706-60590

main61706-90K42iBJ73..LX,STD198608-198708

*SWZ,W/PARALLEL SEAT

main61706-90K46iBJ70,71,LJ70,RJ70..HT..(LX,STD)198708-199001

W/O RR SEAT

main61706-90K47iRJ70..EFI198708-199001

*SWZ,W/PARALLEL SEAT

main61706-90K49iBJ70,71,LJ70,RJ70..HT198708-199001

main61706-90K51iLJ70..SOT198708-199001

main61706-90K54iLJ70..SOT198708-199001

W/O RR SEAT

sub61706-90K51

main61706-90K56iBJ73..LX,STD198708-198808

*SWZ,W/PARALLEL SEAT

main61706-90K57iBJ73,LJ73,RJ73198708-199001

sub61706-60050

61725BOX, FUEL INLET

main61709-90K00iLJ73198710-199001

*FRG

main61709-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

main61709-90K01iBJ75..HT198411-199001

main61725-90K02iBJ70,71,73,LJ7#,RJ7#..LX198411-199001

W/FUEL FILLER DOOR OPENER

61735APANEL, ROOF SIDE, INNER REAR RH

main61071-90K02iBJ73,LJ73,RJ73198411-199001

main61071-90K03iBJ73..LX,STD198608-198808

*SWZ,W/PARALLEL SEAT

sub61071-60030

61736APANEL, ROOF SIDE, INNER REAR LH

main61072-90K02iLJ70..SOT198411-199001

main61072-90K03iBJ73..LX,STD198608-198808

*SWZ,W/PARALLEL SEAT

sub61072-60030

61743REINFORCEMENT, BACK DOOR OPENING, INNER RH

main61743-90K03iBJ70,71,LJ70,RJ70..HT198411-199001

sub61743-90K00

main61743-90K04iBJ73,LJ73,RJ73198411-199001

sub61743-90K01

main61743-90K05iBJ75..HT198411-199001

sub61743-90K02

61744REINFORCEMENT, BACK DOOR OPENING, INNER LH

main61744-90K03iBJ70,71,LJ70,RJ70..HT198411-199001

sub61744-90K00

main61744-90K04iBJ73,LJ73,RJ73198411-199001

sub61744-90K01

main61744-90K05iBJ75..HT198411-199001

sub61744-90K02

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH

main61749-90K00iBJ70,71,73,LJ7#,RJ7#198411-198708

main61749-90K01iBJ75..HT198411-199001

main61749-90K02iBJ70,71,73,LJ7#,RJ7#198708-199001

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-90K00iBJ70,71,73,LJ7#,RJ7#198411-199001

61881SEAL, ROOF SIDE RAIL, FRONT RH

main61881-90K00iLJ70..SOT198411-199001

main61881-90K01iBJ75..PIC198411-199001

main61881-90K02iBJ73,LJ73,RJ73198411-199001

61882SEAL, ROOF SIDE RAIL, FRONT LH

main61882-90K00iLJ70..SOT198411-199001

main61882-90K01iBJ75..PIC198411-199001

main61882-90K02iBJ73,LJ73,RJ73198411-199001

61883SEAL, ROOF SIDE RAIL, REAR RH

main61883-90K00iBJ73,LJ73,RJ73198411-199001

61884SEAL, ROOF SIDE RAIL, REAR LH

main61884-90K00iBJ73,LJ73,RJ73198411-199001

61889RETAINER, SIDE PANEL

main58169-90A00iLJ70..SOT198707-199001

main61889-90K00iLJ70..SOT198411-198707

sub58169-90A00

64198BBRACKET, LOWER BACK RAIL, INNER SIDE RH

main64198-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

64199BBRACKET, LOWER BACK RAIL, INNER SIDE LH

main64199-90K00iBJ7#,LJ7#,RJ7#..HT,SOT198411-199001

7751

9011906264

main90119-06264

9011906405

main90119-06405

904670501401

main90467-0501401

904670604908

main90467-0604908

9095001127

main90950-01127

9095001398

main90950-01398

9095006024

main90950-06024

9418040800

main94180-40800

74 parts on this diagram · 6 diagrams in section
