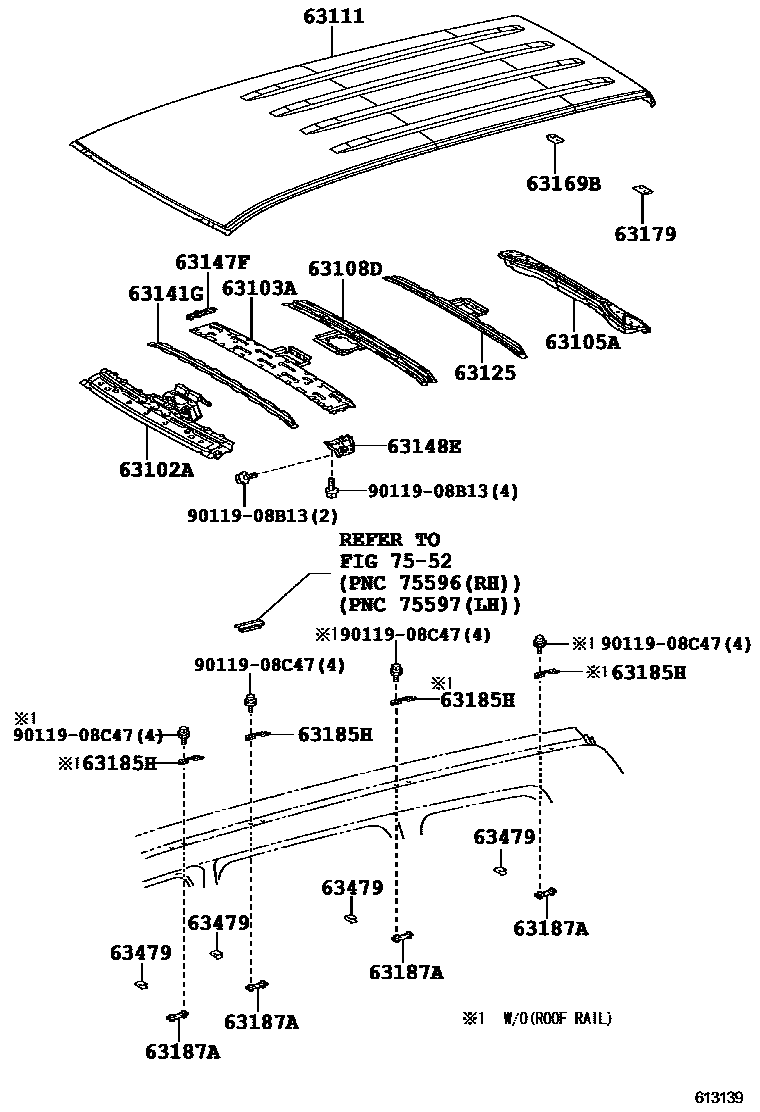

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF PANEL(MOON ROOF) 0003 1MOON ROOF 0004 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60110iURJ202..RHD201201-201508

MOON ROOF-WITH(REMOTE CONTROL)

main63102-60110iUZJ200..RHD201008-201201

main63102-60120iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-60050iUZJ200..RHD200709-202104

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60280iURJ202,VDJ200200709-202104

63108DSUPPORT SUB-ASSY, ROOF PANEL

main63108-60040iVDJ200;URJ202..LHD200709-202104

63111PANEL, ROOF

main63111-60560iURJ202200709-202104

main63111-60580iURJ202..RHD201201-201508

MOON ROOF-WITH(REMOTE CONTROL)

main63111-60580iUZJ200..RHD201008-201201

main63111-60810iURJ202..VXR;URJ202..05S201908-202104

UKRAINE SPEC&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&MAYDAY SYSTEM-WITHOUT

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60100iVDJ200;URJ202..LHD200709-202104

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-60050iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-60050iVDJ200;UZJ200..LHD200709-202104

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

63185HBRACKET, ROOF RACK

main63185-42020iUZJ200,VDJ200200709-201508

ROOF RACK-ROOF RAIL ONLY

main63185-42020iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

63187ABRACKET, ROOF RACK, REAR

main63187-60040iUZJ200,VDJ200200709-202104

63479RETAINER, ROOF INNER RACK

main63479-60020iUZJ200,VDJ200200709-202104

7552

9011908B13

main90119-08B13

9011908C47

main90119-08C47

17 parts on this diagram · 4 diagrams in section
