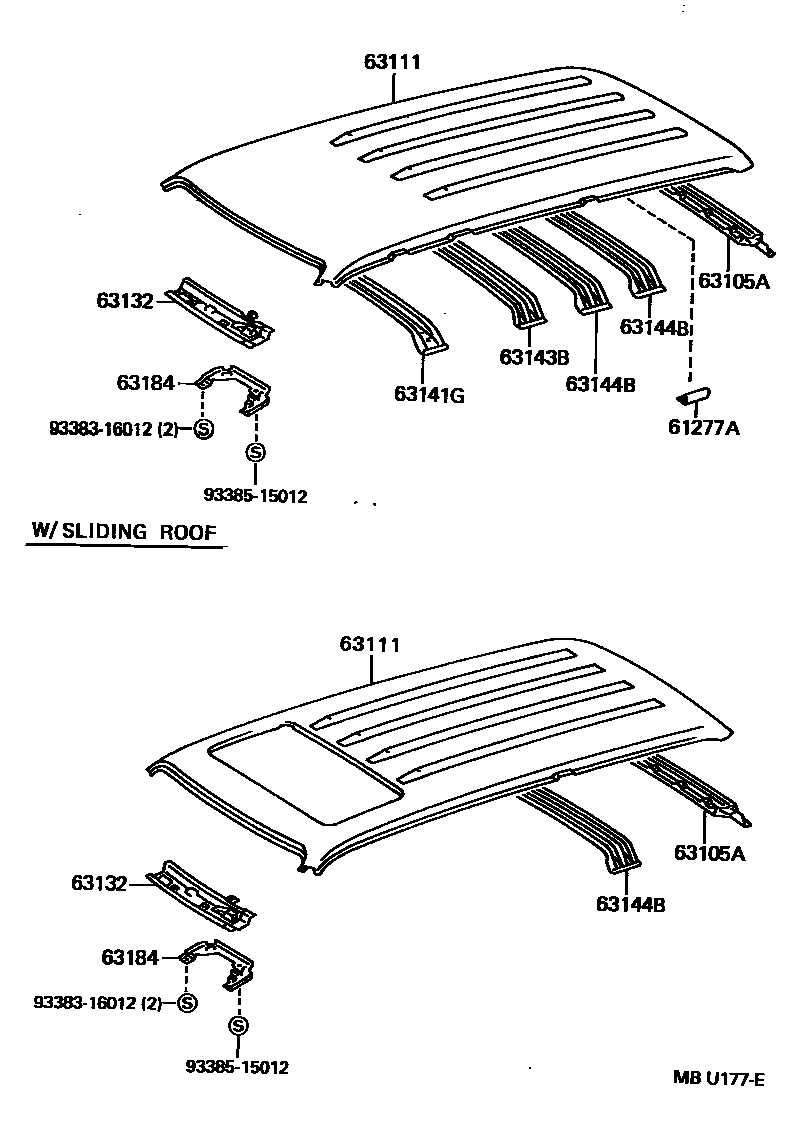

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

61277AJOINT, ROOF DRIP CHANNEL

main61277-60010×2i199001-199103

main61277-90K00×2i199103-199801

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60060i199001-199208

W(REAR TRANSVERS SEAT)

main63105-60090i199001-199108

W(REAR TRANSVERS SEAT)

main63105-60100i199001-199501

main63105-60130i199501-199801

63111PANEL, ROOF

main63014-60020i199001-199801

W(*MR)

main63014-60040i199501-199801

W(*MR & ROOF RACK)

main63014-60050i199501-199801

W(*MR)

main63014-60060i199503-199801

W(*MR)

main63111-60050i199001-199801

W(ROOF RACK)

main63111-60110i199001-199501

W(ROOF RACK)

main63111-60190i199001-199801

main63111-60200i199001-199501

63132PANEL, WINDSHIELD HEADER, INNER

main63102-60020i199001-199106

main63102-60021i199106-199501

main63102-60022i199501-199801

main63102-60030i199001-199106

W(*MR)

main63102-60031i199106-199501

W(*MR)

main63102-60032i199501-199503

W(*MR)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60010i199001-199801

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60010i199001-199801

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-60010×2i199001-199208

W(ROOF CARRIER & ACCESSORY METER)

63184BRACKET, ROOF CONSOLE, REAR

main63184-60020i199503-199801

9338316012

main93383-16012

9338515012

main93385-15012

10 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 71 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: JOINT, ROOF DRIP CHANNEL, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, REINFORCEMENT, ROOF PANEL, NO.1.
