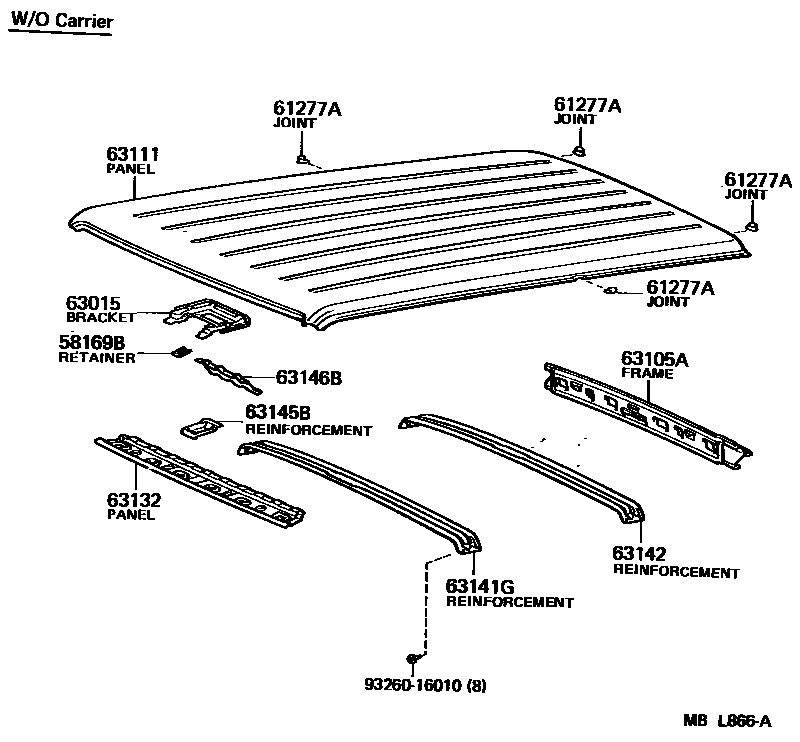

Toyota LAND CRUISER — ROOF PANEL & BACK PANEL

58169BRETAINER, REAR HEATER MOUNTING

main58169-90A00i198708-199001

61277AJOINT, ROOF DRIP CHANNEL

main61277-90K00×4i198708-199001

63015BRACKET SUB-ASSY, ROOF CONSOLE

main63015-90A00i198708-199001

main63015-90A01i198708-199001

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-90A00i198708-199001

main63105-90A09i198708-199001

main63105-90A14i198708-199001

main63105-90A15i198708-199001

63111PANEL, ROOF

main63111-90A00i198708-199001

main63111-90A01i198708-199001

W(ROOF CARRIER)

main63111-90A02i198708-199001

W(SUN ROOF)

main63111-90A03i198708-199001

63132PANEL, WINDSHIELD HEADER, INNER

main63132-90A00i198708-199001

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63043-90A00i198708-199001

main63141-90A00i198708-199001

63142REINFORCEMENT, ROOF PANEL, NO.2

main63044-90A00i198708-199001

main63141-90A00i198708-199001

main63142-30010i198708-199001

W(SUN ROOF)

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-90A00i198708-199001

63146BREINFORCEMENT, WINDSHIELD HEADER PANEL, NO.2

main63146-90A00i198708-199001

9326016010

main93260-16010

11 parts on this diagram · 4 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LAND CRUISER

This section contains 67 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LAND CRUISER. Key components include: RETAINER, REAR HEATER MOUNTING, JOINT, ROOF DRIP CHANNEL, BRACKET SUB-ASSY, ROOF CONSOLE, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 A, FRAME SUB-ASSY, BACK DOOR OPENING.
