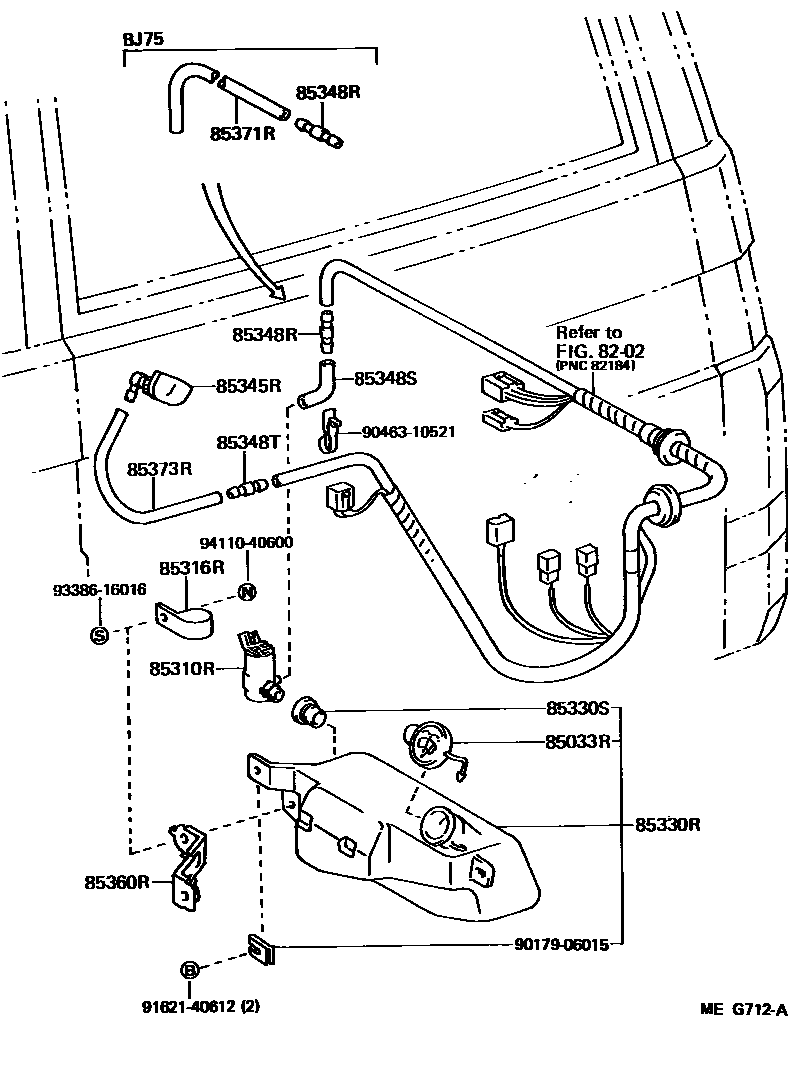

Toyota LAND CRUISER — REAR WASHER

8202

85033RCAP ASSY, REAR WASHER

main85033-36120iBJ70,73,LJ70,RJ70..HT198411-199001

85310RMOTOR ASSY, REAR WASHER

main85310-22080iBJ73,LJ7#,RJ7#..HT198411-199001

12V

main85310-90B00iBJ70,73198411-199001

24V

85316RSUPPORT, REAR WASHER MOTOR

main85316-23010iBJ70,73,LJ70,RJ70..HT198411-199001

85330RJAR ASSY, REAR WASHER

main85330-90K03iBJ70,71,73,LJ7#,RJ7#..HT198411-199001

main85330-90K09iBJ75..HT198510-199001

85330SBUSH, REAR WASHER JAR

main90099-32089iBJ70,73,LJ70,RJ70..HT198411-199001

85345RNOZZLE, REAR WASHER

main85035-90K02iBJ70,73,LJ70,RJ70..HT198411-199001

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iBJ7#,LJ7#,RJ7#..HT198708-199001

main85355-87201iBJ70,73,LJ70,RJ70..HT198411-198510

sub85349-89122

main85355-89122iBJ7#,LJ7#,RJ7#..HT198510-198708

sub85349-89122

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iBJ7#,LJ7#,RJ7#..HT198705-199001

main85355-20070iBJ70,73,LJ70,RJ70..HT198411-198705

sub85355-14481

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iBJ7#,LJ7#,RJ70..HT198708-199001

main85355-87201iBJ70,73,LJ70,RJ70..HT198411-198510

sub85349-89122

main85355-89122iBJ7#,LJ7#,RJ7#..HT198510-198708

sub85349-89122

85360RBRACKET ASSY, REAR WASHER

main85361-90K01iBJ75..HT198510-199001

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iBJ75..HT198510-199001

L=1000

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBJ70,73,LJ70,RJ70..HT198411-199001

L=1450(*H,L=230)

9017906015

main90179-06015

9046310521

main90463-10521

9162140612

main91621-40612

9338616016

main93386-16016

9411040600

main94110-40600

18 parts on this diagram · 1 diagram in section
