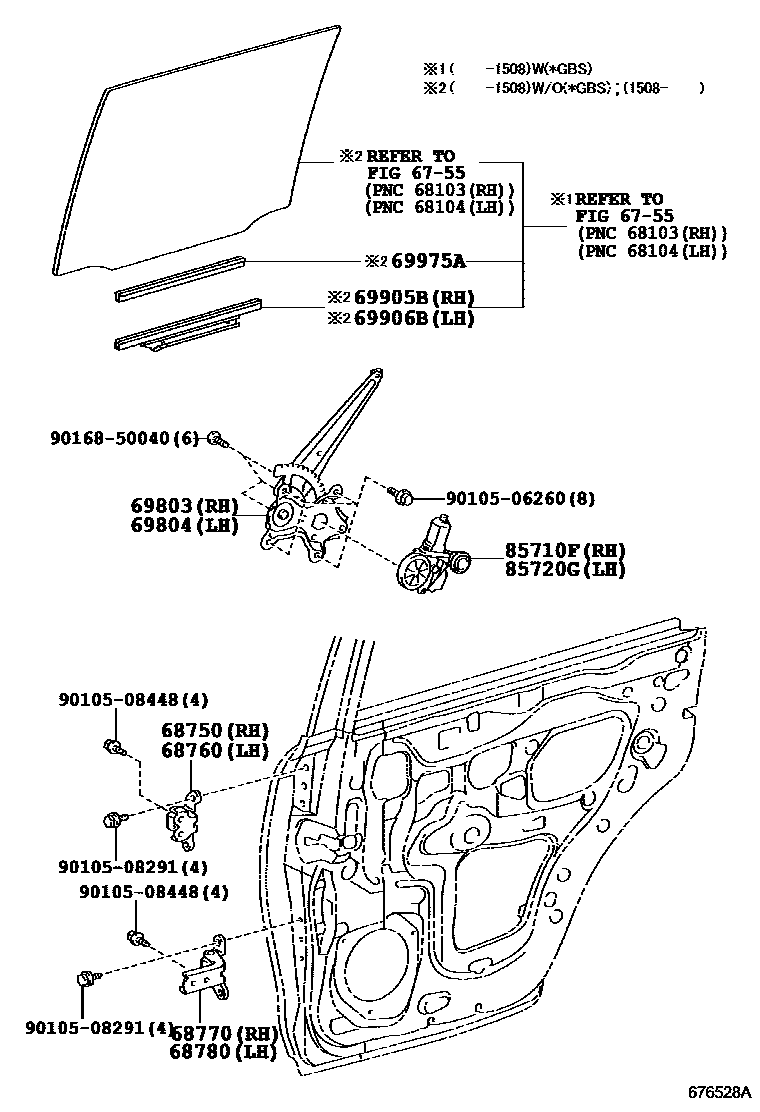

Toyota LAND CRUISER — REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60080iUZJ200,VDJ200200709-202104

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60060iUZJ200,VDJ200200709-202104

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60040iUZJ200,VDJ200200709-202104

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60040iUZJ200,VDJ200200709-202104

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35080iUZJ200,VDJ200200709-202104

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35080iUZJ200,VDJ200200709-202104

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0C020iUZJ200,VDJ200200709-202104

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0C020iUZJ200,VDJ200200709-202104

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010iUZJ200,VDJ200200709-202104

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-60160iUZJ200,VDJ200200709-200910

sub85720-60161

main85720-60161iUZJ200,VDJ200200911-201212

sub85720-60162

main85720-60162iURJ202,VDJ200201301-201508

main85720-60341iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-60180iUZJ200,VDJ200200709-200910

sub85710-60181

main85710-60181iUZJ200,VDJ200200911-201212

sub85710-60182

main85710-60182iURJ202,VDJ200201301-201508

main85710-60361iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
