Toyota LAND CRUISER — REAR AXLE SHAFT & HUB

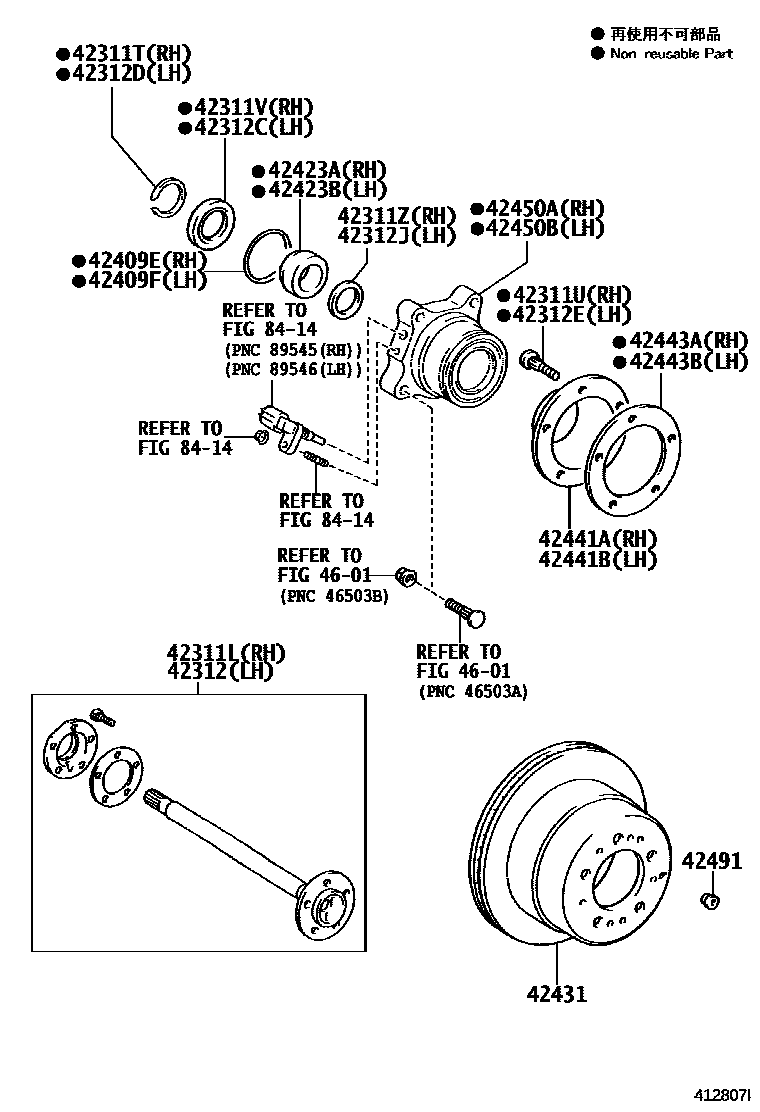

Parts diagram

42311LSHAFT, REAR AXLE, RH

main42301-60030i200709-202104

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-46014i200709-202104

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02077i200709-200711

main90942-02083i200712-202104

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-63001i200709-202104

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-49001i200709-202104

42312SHAFT, REAR AXLE, LH

main42301-60030i200709-202104

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-63001i200709-202104

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-46014i200709-202104

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02077i200709-200711

main90942-02083i200712-202104

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-49001i200709-202104

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-88004i200709-202104

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-88004i200709-202104

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-34040i200709-202104

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-34040i200709-202104

42431DISC, REAR

main42431-60290i200709-202104

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-34020i200709-202104

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-34020i200709-202104

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-60020i200709-202104

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-60020i200709-202104

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-60070i200709-202104

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-60030i200709-202104

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020i200709-202104

4601

8414

24 parts on this diagram · 1 diagram in section
