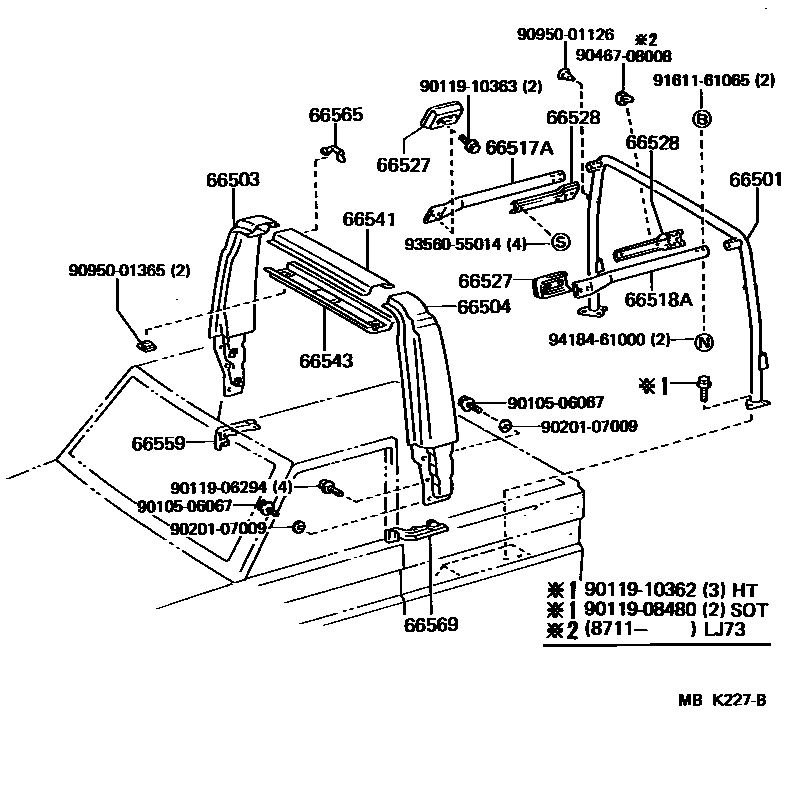

Toyota LAND CRUISER — PROTECTOR PIPE, ROLL BAR & HANDRAIL
66503PANEL SUB-ASSY, ROLL OVER SIDE, RH
66504PANEL SUB-ASSY, ROLL OVER SIDE, LH
66527PROTECTOR, ROLL OVER SUPPORT, FRONT
66528PROTECTOR, ROLL OVER SUPPORT, REAR
*FRG
66541PANEL, ROLL OVER, OUTER
66543PANEL, ROLL OVER, INNER
66559SEAL, ROLL OVER PANEL, RH
66565CATCH, ROLL OVER PANEL, UPPER
66569SEAL, ROLL OVER PANEL, LH
9010506067
main90105-06067
9011906294
main90119-06294
9011908480
main90119-08480
9011910362
main90119-10362
9011910363
main90119-10363
9020107009
main90201-07009
9046708008
main90467-08008
9095001126
main90950-01126
9095001365
main90950-01365
9161161065
main91611-61065
9356055014
main93560-55014
9418461000
main94184-61000
24 parts on this diagram · 1 diagram in section
