EPC Data

Toyota LAND CRUISER — PARTIAL ENGINE ASSEMBLY

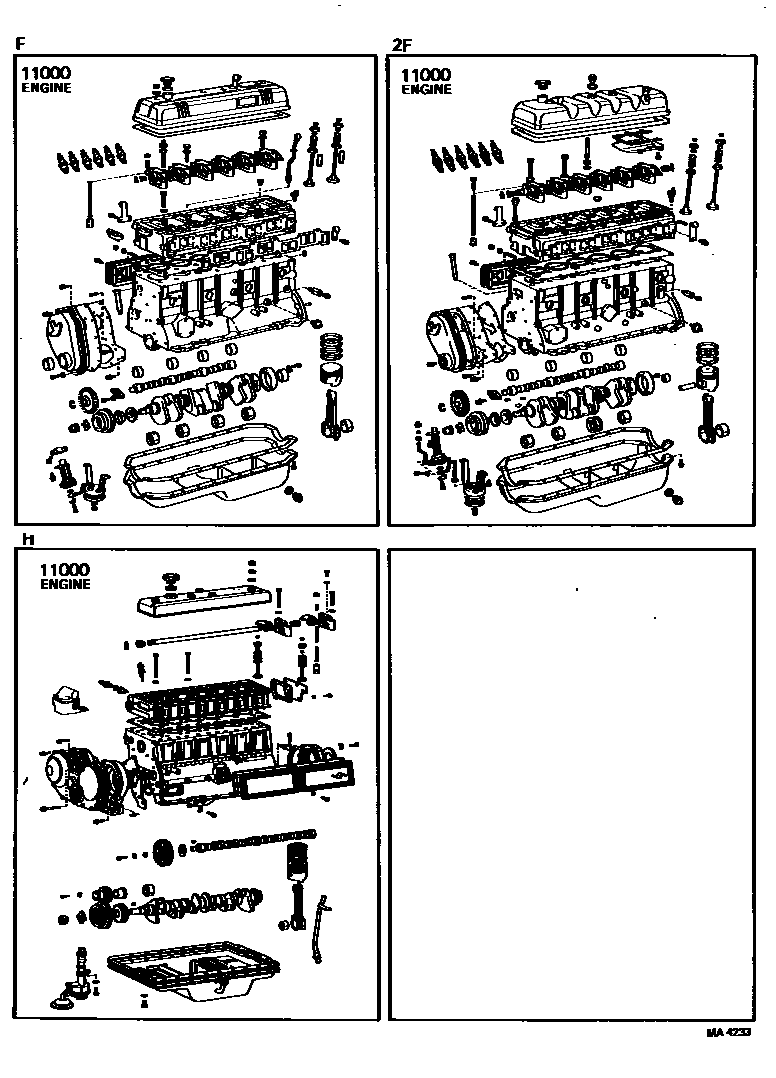

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-47020i197204-197306
main19000-47021i197306-197709
main19000-47022i197709-198007
main19000-47040i197604-197709
main19000-47041i197709-198007
main19000-56020i197402-197709
sub19000-56023
sub12311-56010
sub12315-87304
sub19850-56012
main19000-56021i197709-197811
24V
main19000-56022i197811-197901
24V
main19000-56041i197709-197811
12V
main19000-56042i197811-197901
12V
main19000-56070i197901-198004
sub19000-56015
sub12311-56010
sub12315-87304
main19000-56071i198004-198007
sub19000-56015
main19000-60012i196909-197209
sub19000-60013
sub11201-60915
main19000-60021i196903-196909
main19000-60051i196909-197209
sub11201-60915
main19000-60052i197209-197309
sub19000-69015
sub17700-60270
sub17700-60350
main19000-60054i197309-197501
sub19000-60055
main19000-60060i196903-196909
main19000-61010i197501-197601
sub19000-61280
sub90101-10133
sub91612-61040
main19000-61011i197601-197608
main19000-61012i197608-197901
sub19000-61013
sub90101-10133
sub91612-61040
main19000-61022i197901-198007
HONG KONG SPEC.
sub19000-61023
sub90101-10132
sub90101-10133
sub91612-61040
sub92112-61028
main19000-61032i197901-198007
sub19000-61033
sub90101-10132
sub90101-10133
sub91612-61040
sub92112-61028
main19000-61060i197501-197601
FOR LOW-OCTANE
main19000-61061i197601-197608
FOR LOW-OCTANE
main19000-61062i197608-197901
FOR LOW-OCTANE
sub19000-61063
sub90101-10133
sub91612-61040
main19000-61080i197608-197901
sub19000-61290
sub90101-10132
sub90101-10133
sub91612-61040
sub92112-61028
main19000-61090i197608-197804
NEW SOUTH WALES

1 parts on this diagram · 2 diagrams in section
