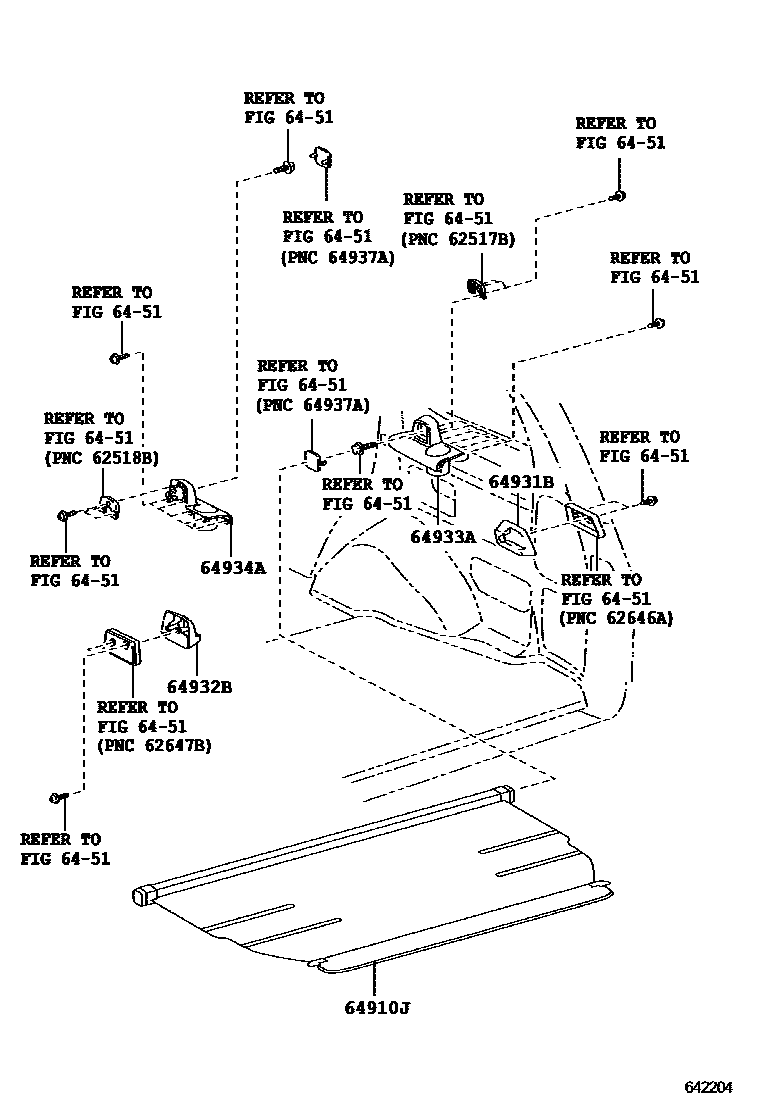

Toyota LAND CRUISER — PACKAGE TRAY PANEL
6451INSIDE TRIM BOARD
64910JCOVER ASSY, TONNEAU
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#,2#; BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,42,46; TONNEAU COVER-WITH,BLACK,TRIM1#,2#,42,46
NEUTRAL BEIGE,TRIM47; TONNEAU COVER-WITH,NEUTRAL BEIGE,TRIM47
64931BHANGER, TONNEAU COVER, RH
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM1#,2#,42,46
DK. BROWN,TRIM4#
NEUTRAL BEIGE,TRIM47; TONNEAU COVER-FOR ACCESSORY,NEUTRAL BEIGE,TRIM47; TONNEAU COVER-WITH&REAR NO.2 SEAT-WITHOUT&EMV & NAVIGATION SYSTEM-WITH(*VCS),NEUTRAL BEIGE,TRIM47; TONNEAU COVER-WITH&REAR NO.2 SEAT-WITHOUT,NEUTRAL BEIGE,TRIM47
64932BHANGER, TONNEAU COVER, LH
SHELL,TRIM0#
FLAXEN,TRIM0#
AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,BLACK,TRIM2#,4#; AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&EMV & NAVIGATION SYSTEM-WITH(*VCS),BLACK,TRIM2#,4#; AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM2#,4#; BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
NEUTRAL BEIGE,TRIM47; TONNEAU COVER-FOR ACCESSORY,NEUTRAL BEIGE,TRIM47; TONNEAU COVER-WITH&REAR NO.2 SEAT-WITHOUT&EMV & NAVIGATION SYSTEM-WITH(*VCS),NEUTRAL BEIGE,TRIM47; TONNEAU COVER-WITH&REAR NO.2 SEAT-WITHOUT,NEUTRAL BEIGE,TRIM47
64933ABRACKET, TONNEAU COVER HOLDER, RH
SHELL,TRIM0#
FLAXEN,TRIM0#
AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER,BLACK,TRIM2#,4#; AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&EMV & NAVIGATION SYSTEM-WITH(*VCS),BLACK,TRIM2#,4#; AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM2#,4#; BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
NEUTRAL BEIGE,TRIM47
64934ABRACKET, TONNEAU COVER HOLDER, LH
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#,42,46
DK. BROWN,TRIM4#
NEUTRAL BEIGE,TRIM47
6 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL for Toyota LAND CRUISER
This section contains 6 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota LAND CRUISER. Key components include: INSIDE TRIM BOARD, COVER ASSY, TONNEAU, HANGER, TONNEAU COVER, RH, HANGER, TONNEAU COVER, LH, BRACKET, TONNEAU COVER HOLDER, RH.
