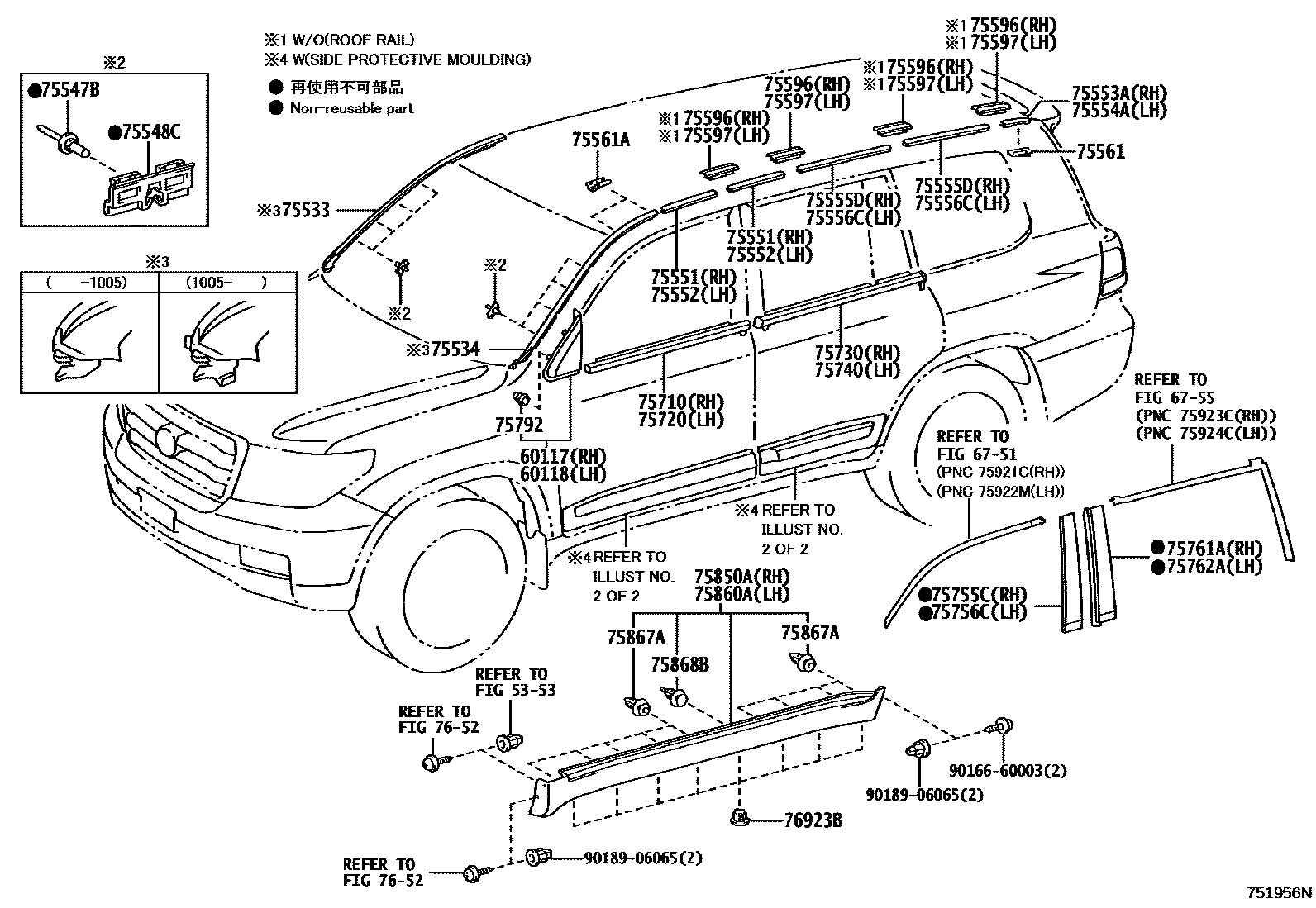

Toyota LAND CRUISER — MOULDING

0001 1 0002 1W(SIDE PROTECTIVE MOULDING) 0003 1W(SIDE PROTECTIVE MOULDING)

5353

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-60010iUZJ200,VDJ200200709-201201

main60117-60020iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201201-202104

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-60010iUZJ200,VDJ200200709-201201

main60118-60020iURJ202,VDJ200201201-202104

6751

6755

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-60080iUZJ200,VDJ200200709-201005

sub75533-60100

main75533-60081iUZJ200,VDJ200201005-201103

sub75533-60082

main75533-60082iUZJ200,VDJ200201103-202104

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-60070iUZJ200,VDJ200200709-201005

sub75534-60080

main75534-60071iUZJ200,VDJ200201005-201103

sub75534-60072

main75534-60072iUZJ200,VDJ200201103-202104

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021iUZJ200,VDJ200200709-202104

75548CPAD, WINDSHIELD MOULDING, NO.4

main75548-60020iUZJ200,VDJ200200709-200912

sub75548-60021

main75548-60021iUZJ200,VDJ200201001-202104

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-60110iUZJ200,VDJ200200709-201508

NO PAINT REQ.

main75551-60110iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75551-60110iUZJ200,VDJ200200709-201508

NO PAINT REQ.

main75551-60110iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-60040iUZJ200,VDJ200200709-202104

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-60040iUZJ200,VDJ200200709-202104

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-60020iUZJ200,VDJ200200709-202104

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-60020iUZJ200,VDJ200200709-202104

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42030iUZJ200,VDJ200200709-200807

sub75561-60010

main75561-60010iUZJ200,VDJ200200807-201103

sub75561-60030

main75561-60030iUZJ200,VDJ200201103-201611

sub75561-60031

main75561-60031iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201612-202104

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-42030iUZJ200,VDJ200200709-200807

sub75561-60010

main75561-60010iUZJ200,VDJ200200807-201103

sub75561-60030

main75561-60030iUZJ200,VDJ200201103-201611

sub75561-60031

main75561-60031iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201612-202104

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-35030iUZJ200,VDJ200200709-202104

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-35030iUZJ200,VDJ200200709-202104

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-60070iUZJ200,VDJ200200709-201508

main75710-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-60070iUZJ200,VDJ200200709-201508

main75720-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-60050iUZJ200,VDJ200200709-201508

main75730-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-60050iUZJ200,VDJ200200709-201508

main75740-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-60040iUZJ200,VDJ200200709-201201

main75755-60060iURJ202,VDJ200201201-201709

sub75755-60061

main75755-60061iVDJ200..08S;URJ202..VXR;URJ202..05S201710-202104

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-60040iUZJ200,VDJ200200709-201201

main75756-60060iURJ202,VDJ200201201-201709

sub75756-60061

main75756-60061iVDJ200..08S;URJ202..VXR;URJ202..05S201710-202104

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-60040iUZJ200,VDJ200200709-201201

NO PAINT REQ.

main75761-60060iURJ202,VDJ200201201-201508

NO PAINT REQ.

main75761-60060iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-60040iUZJ200,VDJ200200709-201201

NO PAINT REQ.

main75762-60060iURJ202,VDJ200201201-201508

NO PAINT REQ.

main75762-60060iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

75792CLIP, DOOR WINDOW FRAME MOULDING

main90044-67440iUZJ200,VDJ200200709-202104

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-60040-A0iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP),SUPER WHITE 2,040

main75850-60040-A0iVDJ200..05S;VDJ200..RHD..VXR200709-202104

SUPER WHITE 2,040

main75850-60040-A1iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),WHITE PEARL CS.,070

main75850-60040-A1iURJ202200709-202104

WHITE PEARL CS.,070

main75850-60040-B0iURJ202,VDJ200200709-202104

SILVER ME.,1F7

main75850-60040-B0iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP),SILVER ME.,1F7

main75850-60040-B1iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),GRAY ME.,1G3

main75850-60040-B1iUZJ200,VDJ200200709-202104

GRAY ME.,1G3

main75850-60040-C0iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),BLACK,202

main75850-60040-C0iURJ202,VDJ200..LHD200709-202104

BLACK,202

main75850-60040-C1iURJ202,VDJ200..LHD201201-202104

ATTITUDE BLACK MC.,218

main75850-60040-C1iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),ATTITUDE BLACK MC.,218

main75850-60040-C2iURJ202201908-202006

SPARKLING BLACK PEARL CS.,220

main75850-60040-C2iVDJ200..LHD201908-202006

SIDE STEP-WITH(BLACK ALUMITE),SPARKLING BLACK PEARL CS.,220

main75850-60040-C2iURJ202..05S201908-202006

SIDE STEP-WITHOUT,SPARKLING BLACK PEARL CS.,220

main75850-60040-C2iURJ202..05S201908-202006

SIDE STEP-WITH(STEP LAMP),SPARKLING BLACK PEARL CS.,220

main75850-60040-D0iURJ202,VDJ200200709-202104

DK. RED M.M.,3Q3

main75850-60040-D0iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP),DK. RED M.M.,3Q3

main75850-60040-E0iURJ202200709-202006

BEIGE M.M.,4R3

main75850-60040-E0iURJ202201201-202006

SIDE STEP-WITH(STEP LAMP),BEIGE M.M.,4R3

main75850-60040-E2iURJ202,VDJ200201508-201908

COPPER BROWN MC.,4S6

main75850-60040-E2iURJ202,VDJ200201508-201908

SIDE STEP-WITH(STEP LAMP),COPPER BROWN MC.,4S6

main75850-60040-F0iUZJ200,VDJ200200709-201201

GOLD M.M.,5A5

main75850-60040-G0iURJ202,VDJ200200709-201508

GREEN M.M.,6V2

main75850-60040-G0iURJ202,VDJ200..LHD201201-201508

SIDE STEP-WITH(STEP LAMP),GREEN M.M.,6V2

main75850-60040-J0iUZJ200,VDJ200200709-201201

GRAYISH BLUE ME.,8R3

main75850-60040-J1iURJ202,VDJ200..LHD201201-201408

SIDE STEP-WITH(STEP LAMP),LT.BLUE M.M.,8S1

main75850-60040-J1iURJ202,VDJ200..LHD201201-201408

LT.BLUE M.M.,8S1

main75850-60040-J2iVDJ200..LHD201508-201912

DARK BLUE MC.,8P8

main75850-60040-J2iURJ202201508-201912

SIDE STEP-WITH(STEP LAMP),DARK BLUE MC.,8P8

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-60040-A0iURJ202200709-202104

SUPER WHITE 2,040

main75860-60040-A0iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),SUPER WHITE 2,040

main75860-60040-A1iVDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

WHITE PEARL CS.,070

main75860-60040-A1iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP),WHITE PEARL CS.,070

main75860-60040-B0iVDJ200..05S;VDJ200..RHD..VXR200709-202104

SILVER ME.,1F7

main75860-60040-B0iURJ202,VDJ200..LHD201201-201908

SIDE STEP-WITH(STEP LAMP),SILVER ME.,1F7

main75860-60040-B1iVDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

GRAY ME.,1G3

main75860-60040-B1iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP),GRAY ME.,1G3

main75860-60040-C0iURJ202,VDJ200..LHD200709-202104

BLACK,202

main75860-60040-C0iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),BLACK,202

main75860-60040-C1iVDJ200..05S;VDJ200..RHD..VXR201201-202104

ATTITUDE BLACK MC.,218

main75860-60040-C1iURJ202201201-201908

SIDE STEP-WITH(STEP LAMP),ATTITUDE BLACK MC.,218

main75860-60040-C2iURJ202..05S201908-202006

SIDE STEP-WITH(STEP LAMP),SPARKLING BLACK PEARL CS.,220

main75860-60040-C2iURJ202201908-202006

SIDE STEP-WITH(BLACK ALUMITE),SPARKLING BLACK PEARL CS.,220

main75860-60040-C2iURJ202201908-202006

SIDE STEP-WITHOUT,SPARKLING BLACK PEARL CS.,220

main75860-60040-C2iVDJ200201908-202006

SPARKLING BLACK PEARL CS.,220

main75860-60040-D0iVDJ200..05S;VDJ200..RHD..VXR200709-202104

DK. RED M.M.,3Q3

main75860-60040-D0iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP),DK. RED M.M.,3Q3

main75860-60040-E0iURJ202,VDJ200..LHD200709-202006

BEIGE M.M.,4R3

main75860-60040-E0iURJ202201201-202006

SIDE STEP-WITH(STEP LAMP),BEIGE M.M.,4R3

main75860-60040-E2iURJ202,VDJ200201508-201908

COPPER BROWN MC.,4S6

main75860-60040-E2iURJ202,VDJ200..LHD201508-201908

SIDE STEP-WITH(STEP LAMP),COPPER BROWN MC.,4S6

main75860-60040-F0iUZJ200,VDJ200200709-201201

GOLD M.M.,5A5

main75860-60040-G0iUZJ200,VDJ200200709-201508

GREEN M.M.,6V2

main75860-60040-G0iURJ202,VDJ200..LHD201201-201508

SIDE STEP-WITH(STEP LAMP),GREEN M.M.,6V2

main75860-60040-J0iUZJ200,VDJ200200709-201201

GRAYISH BLUE ME.,8R3

main75860-60040-J1iURJ202,VDJ200201201-201408

LT.BLUE M.M.,8S1

main75860-60040-J1iURJ202,VDJ200201201-201408

SIDE STEP-WITH(STEP LAMP),LT.BLUE M.M.,8S1

main75860-60040-J2iURJ202201508-201912

SIDE STEP-WITH(STEP LAMP),DARK BLUE MC.,8P8

main75860-60040-J2iVDJ200201508-201912

DARK BLUE MC.,8P8

75867ACLIP, ROCKER PANEL MOULDING

main75867-30130iUZJ200,VDJ200200709-202104

main75867-30130iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP)

75868BCLIP, ROCKER PANEL MOULDING, NO.2

main75868-60020iUZJ200,VDJ200200709-202104

main75868-60020iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP)

7652

76923BRETAINER, SIDE MUDGUARD

main76924-13020iUZJ200,VDJ200200709-202104

main76924-13020iURJ202,VDJ200201201-201908

SIDE STEP-WITH(STEP LAMP)

9016660003

main90166-60003

9018906065

main90189-06065

36 parts on this diagram · 3 diagrams in section
