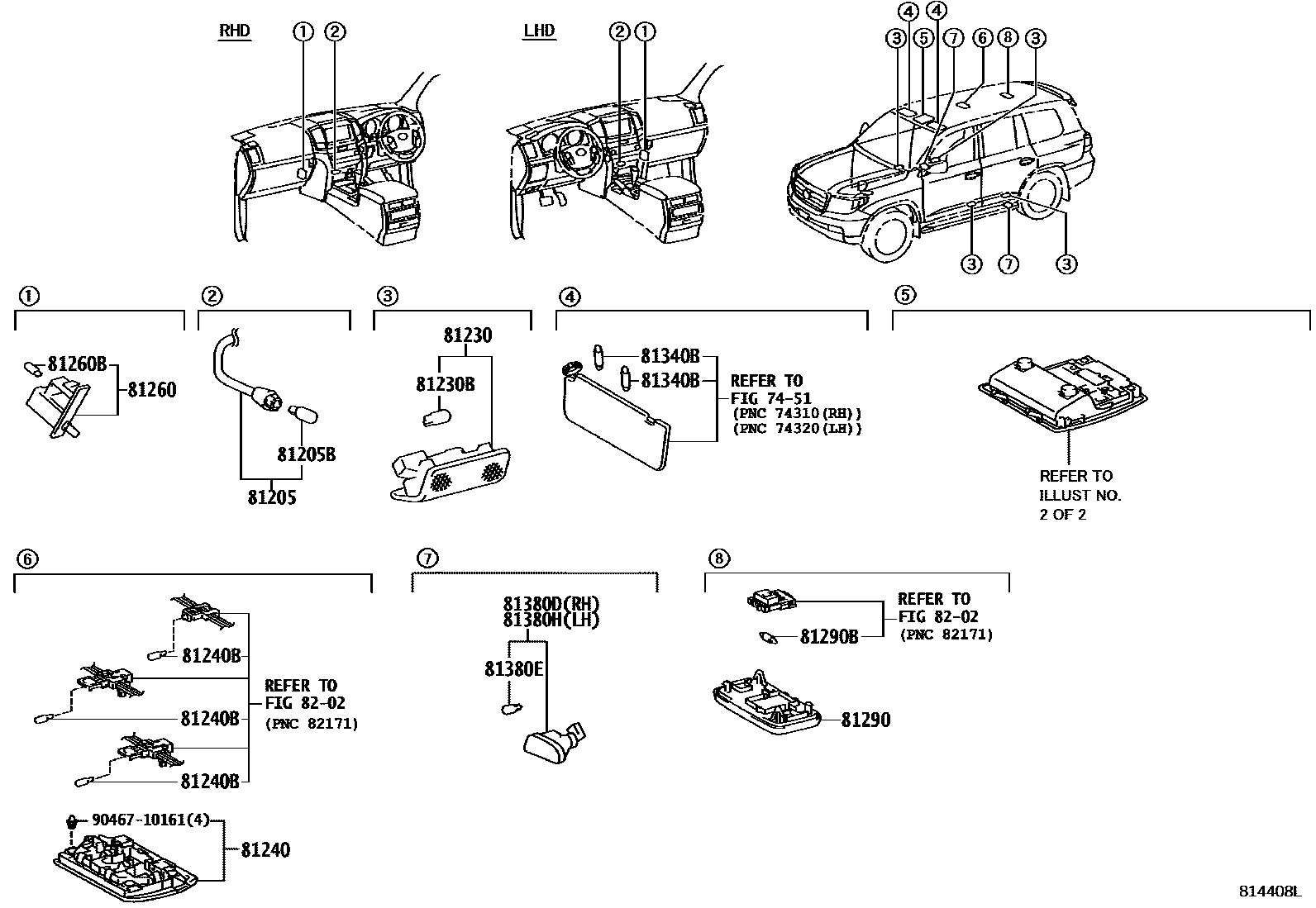

Toyota LAND CRUISER — INTERIOR LAMP
7451
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET
81230LAMP ASSY, COURTESY
DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR)
81230BBULB(FOR COURTESY LAMP)
12V 5W
12V 5W,DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR)
81240LAMP ASSY, ROOM, NO.1
SHELL,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#,46
LT.GRAY,TRIM2#,46
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#,4#
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,LT.GRAY,TRIM1#,2#,46
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,LT.GRAY,TRIM1#,2#,46
LT.GRAY,TRIM1#
LT.GRAY,TRIM2#,4#
SAND BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,NEUTRAL BEIGE,TRIM47
FLAXEN,TRIM0#
LT.GRAY,TRIM2#,46
BLACK,TRIM42
NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),NEUTRAL BEIGE,TRIM47
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81290LAMP ASSY, ROOM, NO.3
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,LT.GRAY,TRIM2#,46
LT.GRAY,TRIM1#,2#,46
LT.GRAY,TRIM2#,46
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,LT.GRAY,TRIM2#,46
NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,LT.GRAY,TRIM1#,2#,46
sub81240-12100
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,LT.GRAY,TRIM1#,2#,46
sub81240-12100
LT.GRAY,TRIM1#,2#,46
sub81240-12100
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM,NEUTRAL BEIGE,TRIM47
sub81240-12100
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
sub81240-12100
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#,46
BLACK,TRIM42
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE),NEUTRAL BEIGE,TRIM47
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE,NEUTRAL BEIGE,TRIM47
NEUTRAL BEIGE,TRIM47
81290BBULB, ROOM LAMP, NO.3
12V 8W
81340BBULB (FOR VANITY LAMP)
12V 2W
81380DLAMP ASSY, STEP
81380EBULB (FOR STEP LAMP)
81380HLAMP ASSY, STEP
8202
9046710161
main90467-10161
17 parts on this diagram · 4 diagrams in section
