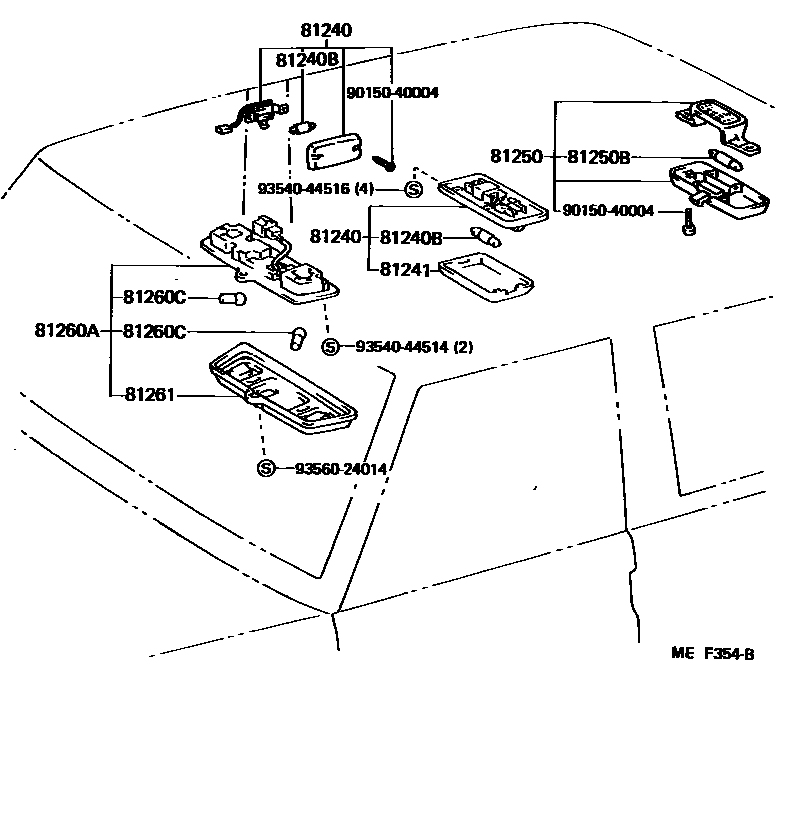

Toyota LAND CRUISER — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
24V
24V,W/SUN ROOF
81240BBULB, ROOM LAMP, NO.1
24V 10W,24V 10W
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
24V 10W,24V 10W
81260CBULB(FOR MAP LAMP)
12V 8W,12V 8W
24V 6W,24V 6W
81261LENS AND COVER, MAP LAMP
9015040004
main90150-40004
9354044514
main93540-44514
9354044516
main93540-44516
9356024014
main93560-24014
12 parts on this diagram · 1 diagram in section
