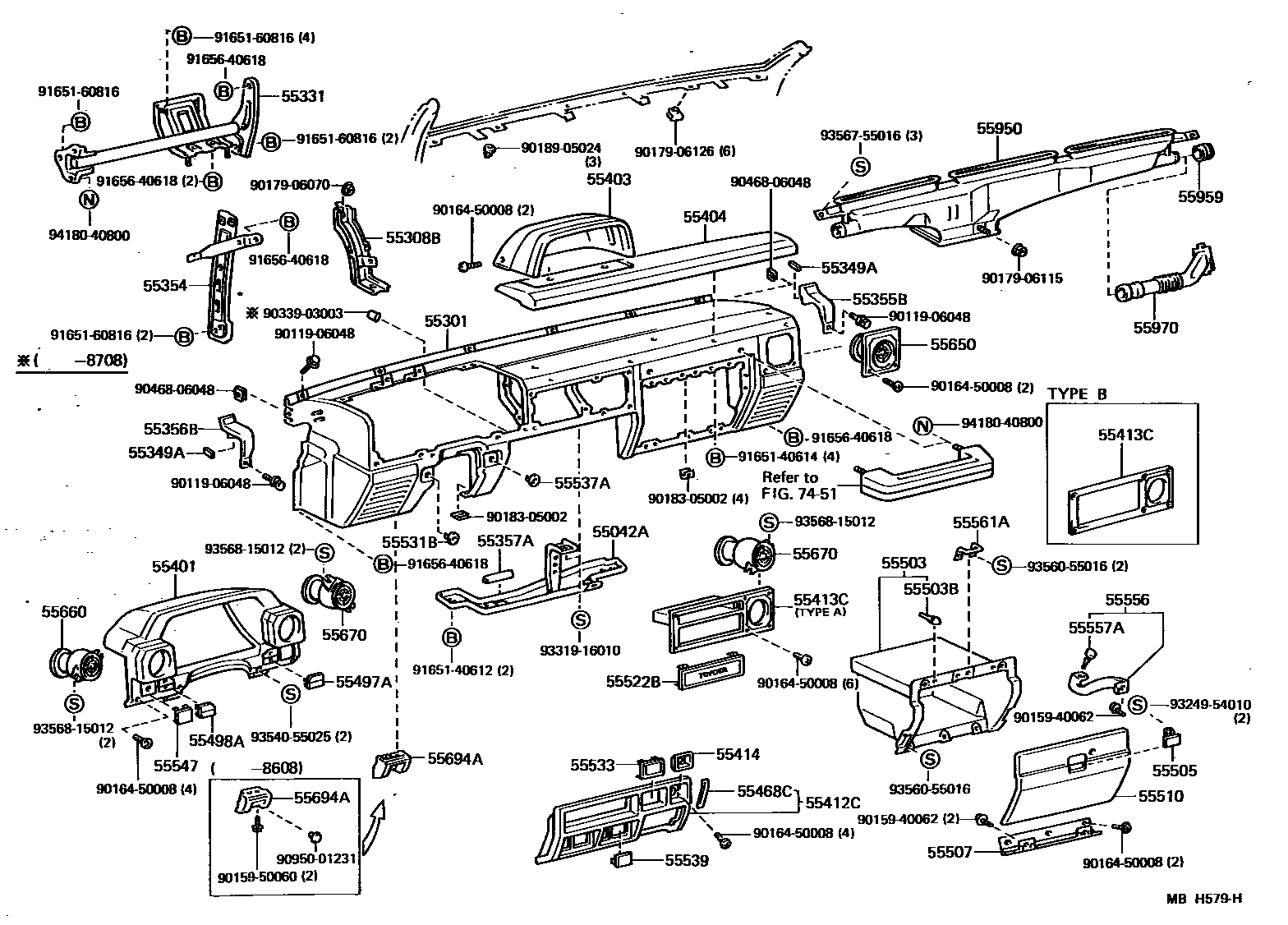

Toyota LAND CRUISER — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55042AREINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL

main55042-90K00-03iBJ70,LJ70..RHD198608-199001

GRAY,GRAY

sub55042-90K00

main55042-90K00-05iBJ70,LJ70..RHD198608-199001

BEIGE,BEIGE

sub55042-90K00

main55042-90K01-03iBJ7#,LJ7#,RJ7#..LHD198411-199001

GRAY,GRAY

sub55042-90K01

main55042-90K01-05iBJ7#,LJ7#,RJ7#..LHD198411-199001

BEIGE,BEIGE

sub55042-90K01

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90K03-03iBJ7#,LJ7#,RJ7#198411-198608

W/O ACCESSORY METER,GRAY,GRAY

sub55301-60370

main55301-90K03-05iBJ7#,LJ7#,RJ7#198411-198608

W/O ACCESSORY METER,BEIGE,BEIGE

sub55301-60370

main55301-90K08-03iBJ7#,LJ7#,RJ7#198411-198608

W/ACCESSORY MATER,GRAY,GRAY

sub55301-60400

main55301-90K08-05iBJ7#,LJ7#,RJ7#198411-198608

W/ACCESSORY MATER,BEIGE,BEIGE

sub55301-60400

main55301-90K18-03iBJ70,LJ70..RHD198608-198708

W/O ACCESSORY METER,GRAY,GRAY

sub55301-90K29

main55301-90K18-05iBJ70,LJ70..RHD198608-198708

W/O ACCESSORY METER,BEIGE,BEIGE

sub55301-90K29

main55301-90K20-03iBJ70,LJ70..RHD198608-198708

W/ACCESSORY MATER,GRAY,GRAY

sub55301-90K31

main55301-90K20-05iBJ70,LJ70..RHD198608-198708

W/ACCESSORY MATER,BEIGE,BEIGE

sub55301-90K31

main55301-90K22-03iBJ7#,LJ7#,RJ7#..LHD198608-199001

W/O ACCESSORY METER,GRAY,GRAY

sub55301-60470

main55301-90K22-05iBJ7#,LJ7#,RJ7#..LHD198608-199001

W/O ACCESSORY METER,BEIGE,BEIGE

sub55301-60470

main55301-90K24-03iBJ7#,LJ7#,RJ7#..LHD198608-199001

W/ACCESSORY MATER,GRAY,GRAY

sub55301-60490

main55301-90K24-05iBJ7#,LJ7#,RJ7#..LHD198608-199001

W/ACCESSORY MATER,BEIGE,BEIGE

sub55301-60490

main55301-90K29-03iBJ70,LJ70..RHD..(LX,STD)198708-199001

W/O ACCESSORY METER,GRAY,GRAY

sub55301-60510

main55301-90K29-05iBJ70,LJ70..RHD..(LX,STD)198708-199001

W/O ACCESSORY METER,BEIGE,BEIGE

sub55301-60510

main55301-90K31-03iBJ70,LJ70..RHD198708-199001

W/ACCESSORY MATER,GRAY,GRAY

sub55301-60530

main55301-90K31-05iBJ70,LJ70..RHD198708-199001

W/ACCESSORY MATER,BEIGE,BEIGE

sub55301-60530

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-90K00-01iBJ73198608-199001

PORTUGAL SPEC,BLACK,BLACK

sub55308-90K00

main55308-90K00-01iBJ70,LJ70..RHD..(LX,STD)198608-199001

BLACK,BLACK

sub55308-90K00

main55308-90K01-01iBJ7#,LJ7#,RJ7#..LHD198504-199001

BLACK,BLACK

sub55308-90K01

main55308-90K01-03iBJ7#,LJ70,RJ70198411-198504

GRAY,GRAY

sub55308-90K01

main55308-90K01-05iBJ7#,LJ70,RJ70198411-198504

BEIGE,BEIGE

sub55308-90K01

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-90K00iBJ7#,LJ7#,RJ7#..LHD198411-199001

main55305-90K01iBJ70,LJ70..RHD198608-199001

55349ACUSHION, INSTRUMENT PANEL

main55349-90K00iBJ7#,LJ7#,RJ7#198809-199001

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55309-90K00-01iBJ7#,LJ7#,RJ7#..LHD198502-199001

BLACK,BLACK

sub55309-90K00

main55309-90K00-03iBJ7#,LJ70,RJ70198411-198502

GRAY,SHADOW GRAY

sub55309-90K00

main55309-90K00-06iBJ7#,LJ70,RJ70198411-198502

BROWN,SEPIA BROWN

sub55309-90K00

main55309-90K01-01iBJ70,LJ70..RHD198608-199001

BLACK,BLACK

sub55309-90K01

55355BPLATE, INSTRUMENT PANEL, RH

main55355-90K00-03iBJ70,71,75,LJ70,RJ70..HT198411-199001

GRAY,GRAY

sub55355-90K00

sub55355-60110

main55355-90K00-05iBJ70,71,75,LJ70,RJ70..HT198411-199001

BEIGE,BEIGE

sub55355-90K00

sub55355-60110

main55355-90K01-03iBJ75,LJ70..PIC,SOT198411-199001

GRAY,GRAY

sub55355-90K01

main55355-90K01-05iBJ73,LJ73,RJ73198411-199001

BEIGE,BEIGE

sub55355-90K01

55356BPLATE, INSTRUMENT PANEL, LH

main55356-90K00-03iBJ70,71,75,LJ70,RJ70..HT198411-199001

GRAY,GRAY

sub55356-90K00

sub55356-60100

main55356-90K00-05iBJ70,71,75,LJ70,RJ70..HT198411-199001

BEIGE,BEIGE

sub55356-90K00

sub55356-60100

main55356-90K01-03iBJ73,LJ73,RJ73198411-199001

GRAY,GRAY

sub55356-90K01

main55356-90K01-05iBJ73,LJ73,RJ73198411-199001

BEIGE,BEIGE

sub55356-90K01

55357APROTECTOR, EDGE, NO.1

main55357-90A00iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-90K01-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

sub55404-90K01

main55404-90K01-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub55404-90K01

55403HOOD SUB-ASSY, METER

main55403-90K00-03iBJ7#,LJ7#,RJ7#198411-199001

GRAY,SHADOW GRAY

sub55403-90K00

main55403-90K00-06iBJ7#,LJ7#,RJ7#198411-199001

BROWN,SEPIA BROWN

sub55403-90K00

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-90K00-03iBJ70,LJ70..RHD..(LX,STD)198608-199001

W/O ACCESSORY METER,GRAY,SHADOW GRAY

sub55401-90K00

main55401-90K00-06iBJ70,LJ70..RHD..(LX,STD)198608-199001

W/O ACCESSORY METER,BROWN,SEPIA BROWN

sub55401-90K00

main55401-90K01-03iBJ7#,LJ7#,RJ7#..LHD198411-199001

W/O ACCESSORY METER,GRAY,SHADOW GRAY

sub55401-90K01

main55401-90K01-06iBJ7#,LJ7#,RJ7#..LHD198411-199001

W/O ACCESSORY METER,BROWN,SEPIA BROWN

sub55401-90K01

main55401-90K02-03iBJ70,LJ70..RHD198608-199001

W/ACCESSORY MATER,GRAY,SHADOW GRAY

sub55401-90K02

main55401-90K02-06iBJ70,LJ70..RHD198608-199001

W/ACCESSORY MATER,BROWN,SEPIA BROWN

sub55401-90K02

main55401-90K03-03iBJ7#,LJ7#,RJ7#..LHD198411-199001

W/ACCESSORY MATER,GRAY,SHADOW GRAY

sub55401-90K03

main55401-90K03-06iBJ7#,LJ7#,RJ7#..LHD198411-199001

W/ACCESSORY MATER,BROWN,SEPIA BROWN

sub55401-90K03

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55412-90K02-03iBJ70,LJ70..RHD198608-199001

GRAY,GRAY

sub55412-90K02

sub55412-60070

main55412-90K02-05iBJ70,LJ70..RHD198608-199001

BEIGE,BEIGE

sub55412-90K02

sub55412-60070

main55412-90K03-03iBJ7#,LJ70,RJ70198411-198510

GRAY,GRAY

sub55412-90K04

main55412-90K03-05iBJ7#,LJ70,RJ70198411-198510

BEIGE,BEIGE

sub55412-90K04

main55412-90K04-03iBJ7#,LJ7#,RJ7#..LHD198510-199001

GRAY,GRAY

sub55412-90K04

sub55412-60080

main55412-90K04-05iBJ7#,LJ7#,RJ7#..LHD198510-199001

BEIGE,BEIGE

sub55412-90K04

sub55412-60080

55413CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2

main55413-90K00iBJ70,LJ70..RHD..(LX,STD)198608-199001

TYPE B

main55413-90K02iBJ7#,LJ7#,RJ7#..LHD198411-199001

TYPE A

main55413-90K03iLJ70..RHD..VX198801-199001

TYPE A

55414BEZEL, CIGAR LIGHTER HOLE

main55477-90K00-01iBJ70,LJ70..RHD198608-199001

BLACK,BLACK

sub55477-90K00

main55477-90K01-01iBJ7#,LJ7#,RJ7#..LHD198411-199001

BLACK,BLACK

sub55477-90K01

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-90K00iBJ7#,LJ7#,RJ7#198411-199001

55497AREFLECTOR, WARNING LAMP, RH

main55497-90K00iBJ7#,LJ7#198411-199001

W/FUEL SEDIMENTER

main55497-90K01iBJ70,73,75..LX,STD198411-198808

main55497-90K03iRJ7#198411-199001

55498AREFLECTOR, WARNING LAMP, LH

main55498-90K01iBJ7#,LJ7#,RJ7#198411-199001

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-90K00iBJ7#,LJ7#,RJ7#198411-199001

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015iBJ7#,LJ7#,RJ7#198411-199001

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-90K00-01iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VM)198411-199001

BLACK,BLACK

sub55560-90K00

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-90K00iBJ7#,LJ7#,RJ7#198411-199001

sub55505-60010

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-90K00-03iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VM)198411-199001

W/O KEY,GRAY,GRAY

sub55501-90K00

main55501-90K00-05iBJ7#,LJ7#,RJ7#..(HT,PIC)..(LX,STD,VM)198411-199001

W/O KEY,BEIGE,BEIGE

sub55501-90K00

main55501-90K01-03iBJ7#,LJ7#,RJ7#198411-199001

W/KEY,GRAY,GRAY

sub55501-90K01

main55501-90K01-05iBJ7#,LJ7#,RJ7#198411-199001

W/KEY,BEIGE,BEIGE

sub55501-90K01

55522BCOVER, RADIO TUNER OPENING

main55522-14070iBJ7#,LJ7#,RJ7#..LHD198411-199001

TYPE A

main55522-32010iBJ70,LJ70..RHD..(LX,STD)198608-199001

sub55522-20070

main55522-32010iBJ7#,LJ7#,RJ7#..LHD198708-199001

TYPE B

sub55522-20070

55531BCOVER, CHOKE KNOB HOLE

main90950-01155iBJ7#,LJ7#,RJ7#198411-199001

sub90950-01725

55533COVER, AUTO CLOCK HOLE

main55533-90A00iBJ7#,LJ7#,RJ7#..STD198411-199001

55537ACOVER, THROTTLE KNOB HOLE

main90950-01329iRJ7#198411-199001

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iBJ7#,LJ7#,RJ7#198411-199001

BLACK,BLACK

sub55539-32010

sub55539-32030

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-90K00iBJ7#,LJ7#,RJ7#198411-199001

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-90K00iBJ70,LJ70..RHD198608-199001

main55556-90K01iBJ7#,LJ7#,RJ7#..LHD198411-199001

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main90541-03005iBJ7#,LJ7#,RJ7#198411-199001

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-90K00iBJ7#,LJ7#,RJ7#198411-199001

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-90K00-01iBJ7#,LJ7#,RJ7#198411-199001

BLACK,BLACK

sub55650-90K00

sub55650-60040

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-90K00-01iBJ7#,LJ7#,RJ7#198411-199001

BLACK,BLACK

sub55660-90K00

sub55660-60060

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55660-90K00-01iBJ7#,LJ7#,RJ7#198411-199001

BLACK,BLACK

sub55660-90K00

sub55660-60060

55694APROTECTOR, CONTROL KNOB, NO.2

main55694-90K00iLJ70,RJ70..HT198411-198608

*FRG

main55694-90K01iLJ70,RJ70..LHD..HT198608-199001

*FRG

main55694-90K02-03iLJ70..RHD..VX198801-199001

GRAY,GRAY

main55694-90K02-06iLJ70..RHD..VX198801-199001

BROWN,BROWN

55950NOZZLE ASSY, DEFROSTER

main55950-90K00-01iBJ70,LJ70..RHD198608-198708

BLACK,BLACK

sub55950-90K02

main55950-90K01-01iBJ7#,LJ7#,RJ7#..LHD198411-199001

BLACK,BLACK

sub55950-90K01

main55950-90K02iBJ70,LJ70..RHD198708-199001

BLACK

sub55950-60030

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iBJ7#,LJ7#,RJ7#..LX,STD,VM198411-199001

55970NOZZLE ASSY, ASSIST DEFROSTER

main55970-90K00iBJ7#,LJ7#,RJ7#198411-199001

7451

9011906048

main90119-06048

9015940062

main90159-40062

9015950060

main90159-50060

9016450008

main90164-50008

9017906070

main90179-06070

9017906115

main90179-06115

9017906126

main90179-06126

9018305002

main90183-05002

9018905024

main90189-05024

9033903003

main90339-03003

9046806048

main90468-06048

9095001231

main90950-01231

9165140612

main91651-40612

9165140614

main91651-40614

9165160816

main91651-60816

9165640618

main91656-40618

9324954010

main93249-54010

9331916010

main93319-16010

9354055025

main93540-55025

9356055016

main93560-55016

9356755016

main93567-55016

9356815012

main93568-15012

9418040800

main94180-40800

63 parts on this diagram · 2 diagrams in section
