Toyota LAND CRUISER — HORN

86508BRACKET SUB-ASSY, HORN

main86591-90K00iBJ7#,LJ70198411-199001

86510HORN ASSY, HIGH PITCHED

main86510-90K02iBJ7#198411-198510

24V

sub86510-90K06

main86510-90K03iBJ73,LJ70,RJ70198411-198510

12V

sub86510-90K07

main86510-90K06iBJ7#..LX,STD198510-199001

24V

main86510-90K07iBJ73,LJ7#,RJ7#198510-199001

12V

86520HORN ASSY, LOW PITCHED

main86520-12350iBJ73,LJ70,RJ70198411-198510

12V

main86520-12620iBJ73,LJ7#,RJ7#198510-199001

12V

main86520-90K04iBJ7#198411-198510

24V

sub86520-90K06

main86520-90K06iBJ7#..LX,STD198510-199001

24V

9165640818

main91656-40818

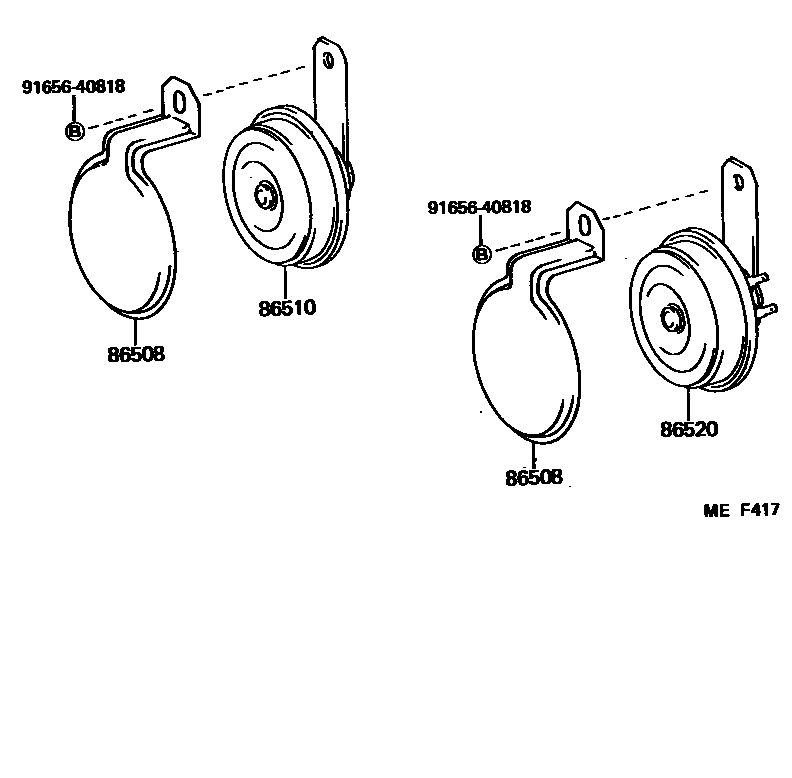

4 parts on this diagram · 1 diagram in section
