Toyota LAND CRUISER — HEATING & AIR CONDITIONING - SET

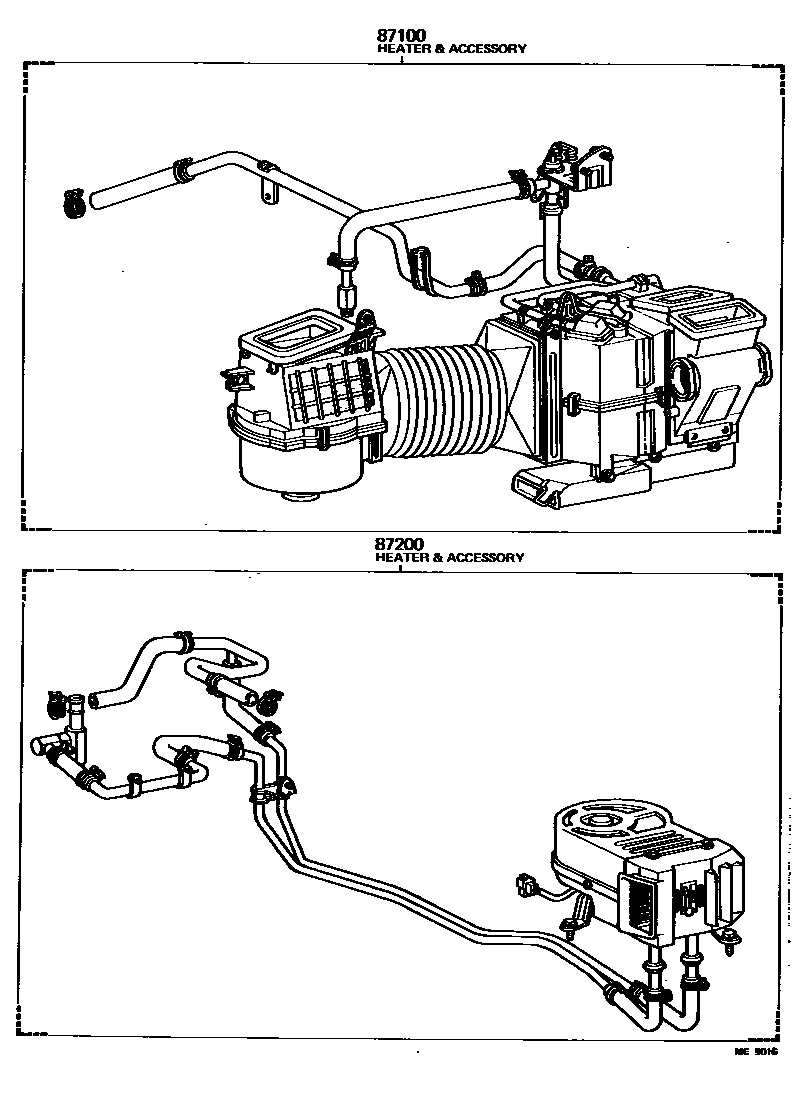

87100HEATER AND ACCESSORY ASSY

main87100-90A00i198008-198411

12V

main87100-90A01i198008-198411

12V

main87100-90A02i198008-198411

24V

main87100-90A03i198008-198411

24V

main87100-90A04i198008-198411

12V

main87100-90A05i198110-198411

24V

main87100-90A06i198008-198411

12V

main87100-90A07i198008-198411

12V

main87100-90A08i198008-198411

12V

main87100-90A09i198008-198110

24V

main87100-90A10i198103-198411

24V,ENGLAND SPEC

main87100-90A11i198103-198411

12V,WEST GERMANY SPEC

main87100-90A12i198103-198411

24V,WEST GERMANY SPEC

87200HEATER & ACCESSORY, REAR

main87200-90A00i198008-198210

12V

main87200-90A01i198008-198110

12V

main87200-90A02i198008-198110

24V

main87200-90A03i198008-198210

12V

main87200-90A04i198008-198110

24V

main87200-90A05i198110-198210

12V

main87200-90A06i198110-198210

24V

main87200-90A07i198210-198411

12V

main87200-90A08i198210-198411

12V

main87200-90A09i198210-198411

24V

main87200-90A10i198210-198411

12V

main87200-90A11i198210-198411

24V

main87200-90A12i198510-198708

12V,W/BENCH SEAT

main87200-90A14i198411-198708

12V

main87200-90A18i198510-198708

12V,W/SEPARATE SEAT

main87200-90A19i198510-198708

12V,W/SEPARATE SEAT

main87200-90A20i198510-198708

12V,W/SEPARATE SEAT

main87200-90A21i198510-198708

12V,W/SEPARATE SEAT

main87200-90A24i198510-198708

12V,W/SEPARATE SEAT

main87200-90A25i198510-198708

12V,W/SEPARATE SEAT

main87200-90A26i198510-198708

24V

main87200-90A28i198510-198708

12V,W/SEPARATE SEAT

main87200-90A29i198510-198708

12V,W/BENCH SEAT

main87200-90A31i198510-198708

24V

2 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - SET for Toyota LAND CRUISER

This section contains 4 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota LAND CRUISER. Key components include: HEATER AND ACCESSORY ASSY, HEATER & ACCESSORY, REAR, COOLER & ACCESSORY ASSY, VENTILATOR AND ACCESSORY ASSY, BOOST.
