Toyota LAND CRUISER — HEATING & AIR CONDITIONING - SET

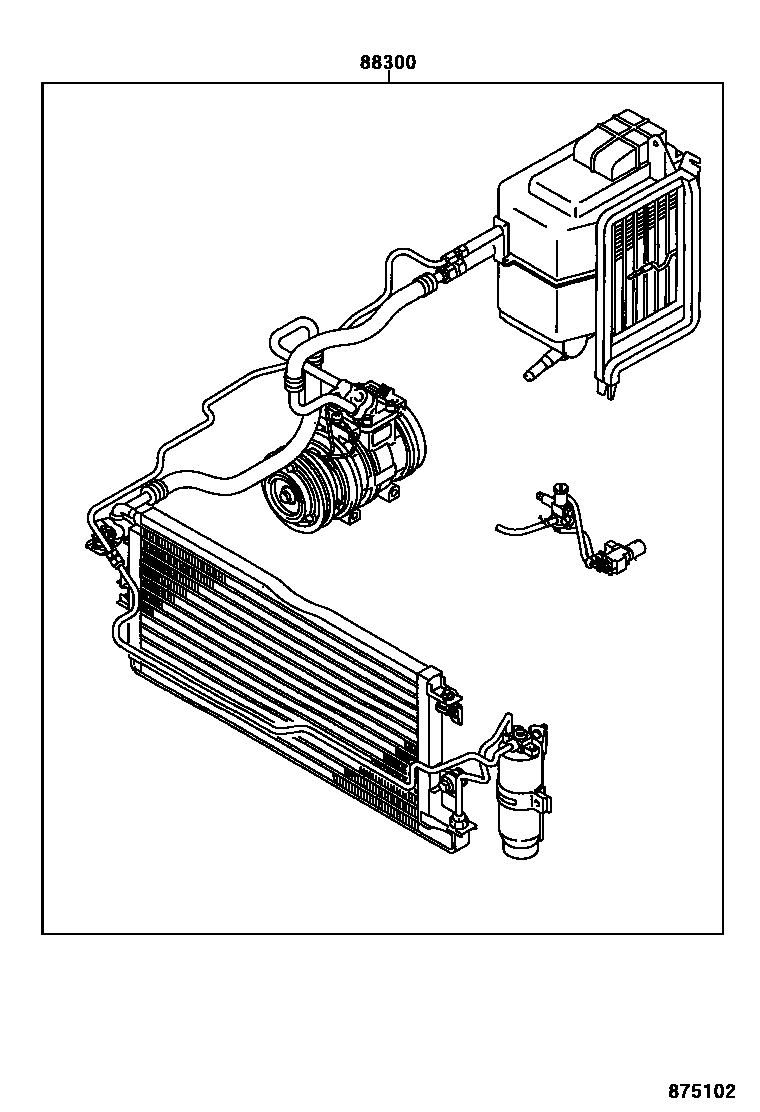

Parts diagram

88300COOLER & ACCESSORY ASSY

main80830-60110i199908-200108

main80830-60120i199908-200108

main88300-60600i199108-199305

main88300-60610i199108-199305

main88300-60620i199108-199305

main88300-60690i199208-199305

main88300-60760i199305-199401

main88300-60761i199401-199604

main88300-60770i199305-199401

main88300-60771i199401-199604

main88300-60830i199305-199401

main88300-60831i199401-199501

main88300-60832i199501-199805

main88300-60833i199805-199908

main88300-60850i199305-199501

main88300-60890i199305-199401

main88300-60891i199401-199501

main88300-60892i199501-199805

main88300-60893i199805-199908

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota LAND CRUISER

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota LAND CRUISER. Key components include: COOLER & ACCESSORY ASSY.
