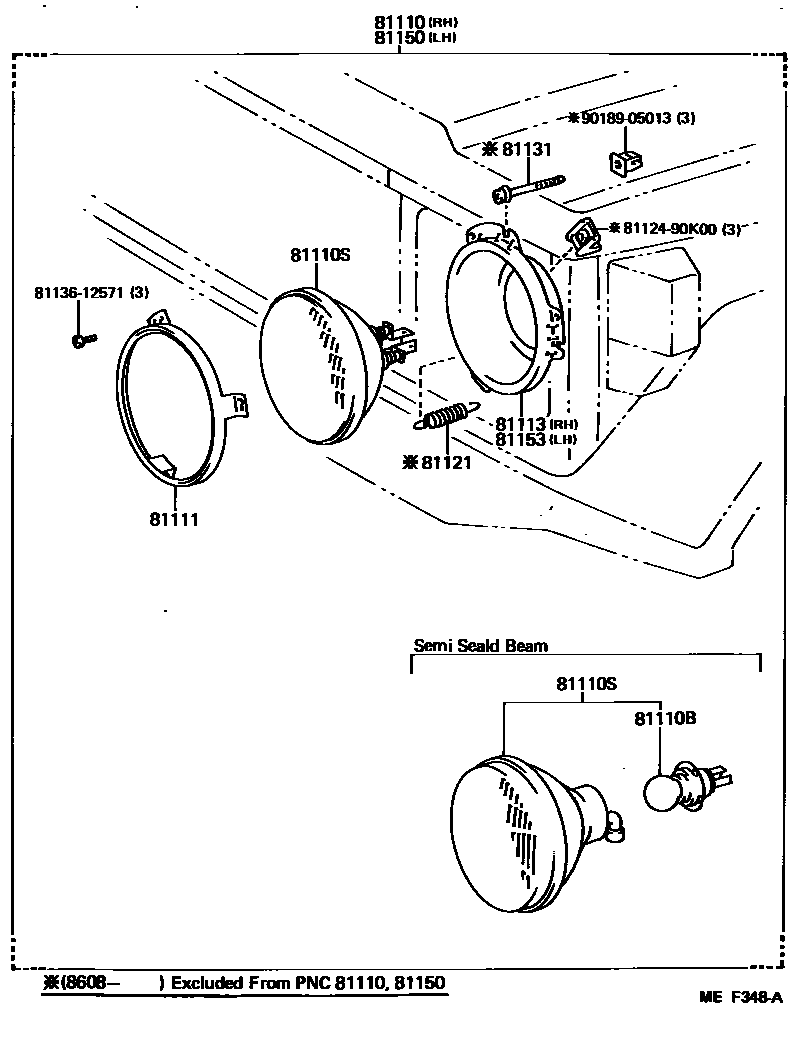

Toyota LAND CRUISER — HEADLAMP
81110HEADLAMP ASSY, RH
sub81110-90K37
sub81110-90K31
HALOGEN
HALOGEN
WHITE
ITALY OR PORTUGAL SPEC,WHITE
24V,WHITE
HALOGEN,WHITE
ITALY OR PORTUGAL SPEC,HALOGEN
24V,HALOGEN,WHITE
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W WHITE
12V 45/40W,WHITE,ITALY OR PORTUGAL SPEC,WHITE
12V 45/40W,YELLOW,ITALY OR PORTUGAL SPEC,YELLOW
sub90981-13H00
24V 55/50W,WHITE,24V 55/50W,WHITE
81110SSEALED BEAM UNIT, NO.1
12V 45/40W,*WSB,12V 45/40W,WHITE
12V 45/40W,*WSB,ITALY OR PORTUGAL SPEC,WHITE
12V 60/55W,*HWS,ITALY OR PORTUGAL SPEC,HALOGEN
12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE
12V 60/55W,*HYS,HALOGEN,YELLOW
12V 60/55W,*HWS,12V 60/55W
24V 55/50W,*WSB,24V 55/50W,WHITE
24V 75/70W,*WSB,24V 75/70W,HALOGEN,WHITE
12V 60/55W,*HWS,12V 60/55W,HALOGEN
24V 75/70W,*HWS,24V 75/70W,HALOGEN
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
sub81150-90K37
sub81150-90K31
HALOGEN
HALOGEN
WHITE
ITALY OR PORTUGAL SPEC,WHITE
24V,WHITE
ITALY OR PORTUGAL SPEC,HALOGEN
HALOGEN,WHITE
24V,HALOGEN,WHITE
81153RING, SEALED BEAM MOUNTING, NO.1 LH
8112490K00SPACER
main81124-90K00
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905013
main90189-05013
12 parts on this diagram · 2 diagrams in section
