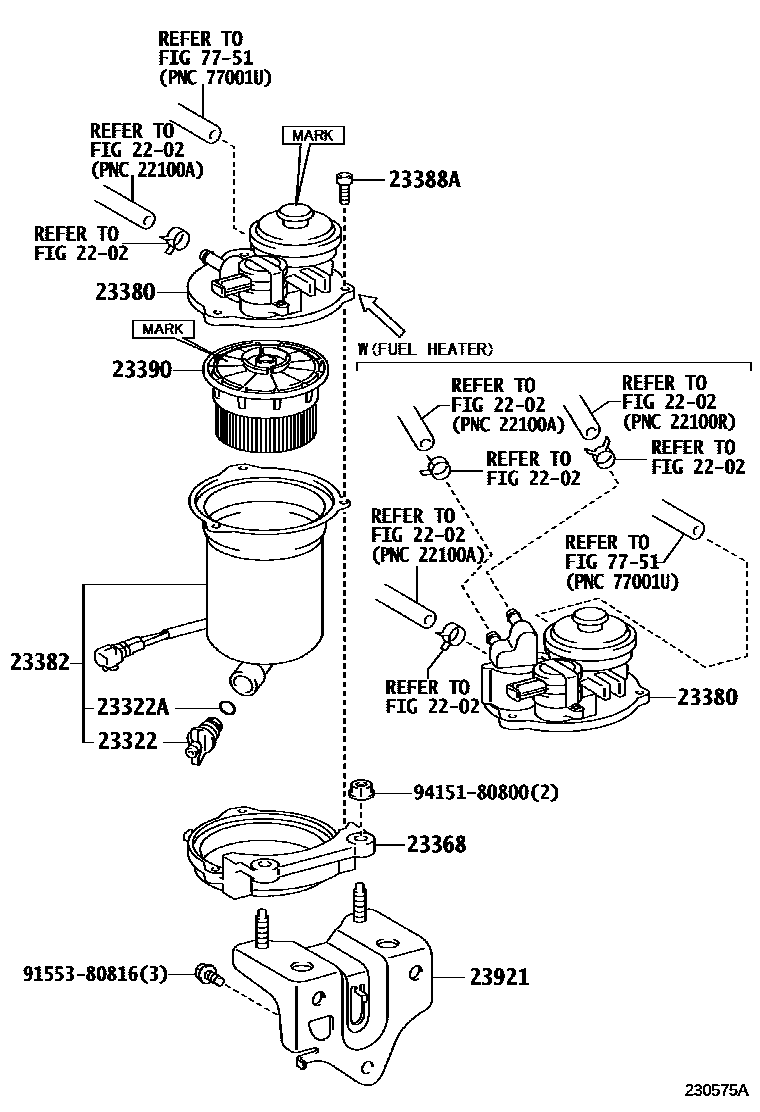

Toyota LAND CRUISER — FUEL FILTER

2202

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1VDFTV..VDJ200200709-202104

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1VDFTV..VDJ200200709-202104

23368PLATE, GUIDE

main23368-51030i1VDFTV..VDJ200200709-202104

23380CAP ASSY, FUEL FILTER

main23380-51040i1VDFTV..VDJ200200709-200811

sub23380-51041

main23380-51041i1VDFTV..VDJ200200811-201303

sub23380-51042

main23380-51042i1VDFTV..VDJ200201303-202104

23382CASE, FUEL FILTER

main23382-51030i1VDFTV..VDJ200200709-201108

sub23382-51031

main23382-51031i1VDFTV..VDJ200201108-201508

main23382-51031i1VDFTV..VDJ200201508-201904

FUEL HEATER-WITHOUT,PNC 23380=MARK 51033

main23382-51032i1VDFTV..VDJ200..08S201904-202104

FUEL HEATER-WITHOUT,PNC 23380=MARK 51034

23388APLUG, FUEL FILTER DRAIN

main23388-51020i1VDFTV..VDJ200200709-202104

23390ELEMENT ASSY, FUEL FILTER

main23390-17540i1VDFTV..VDJ200200811-201004

MARK 23390-17540

main23390-51020i1VDFTV..VDJ200200709-200811

MARK 23390-51020

sub23390-51070

main23390-51030i1VDFTV..VDJ200..08S201904-202104

FUEL HEATER-WITHOUT,PNC 23380=MARK 51034

main23390-51070i1VDFTV..VDJ200201508-201904

FUEL HEATER-WITHOUT,PNC 23380=MARK 51033

main23390-51070i1VDFTV..VDJ200201004-201508

23921SUPPORT, FUEL FILTER

main23921-51020i1VDFTV..VDJ200200709-201903

main23921-51030i1VDFTV..VDJ200..08S201903-202104

7751

9155380816

main91553-80816

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
