Toyota LAND CRUISER — FRONT TURN SIGNAL LAMP

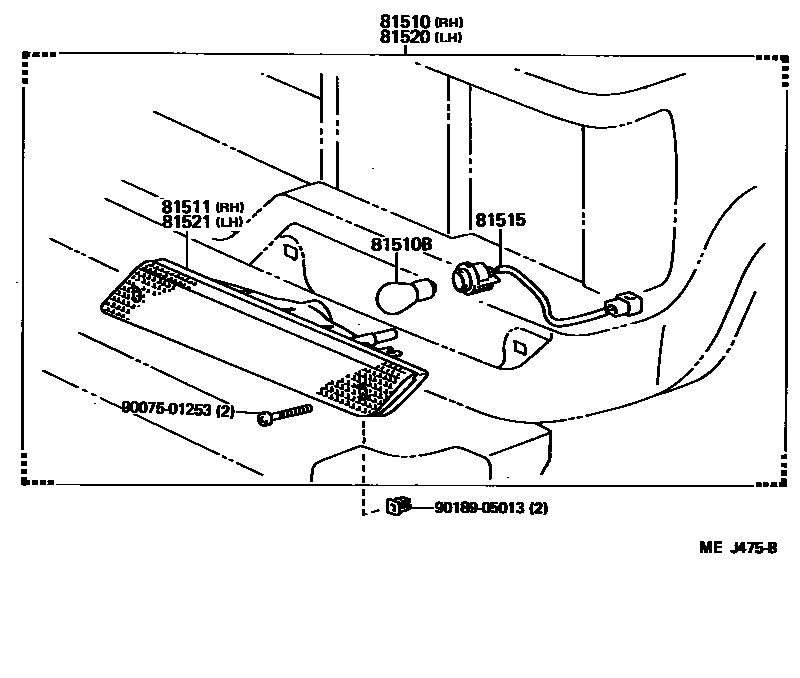

Parts diagram

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-90A10i198708-198809

main81510-90A14i198808-198809

main81510-90A15i198809-199001

main81510-90A16i198809-199001

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16014×2i198708-199001

24V 21W

main99132-11210×2i198808-199001

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-90A10i198708-198809

main81511-90A14i198808-198809

main81511-90A15i198809-199001

main81511-90A16i198809-199001

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-90A10×2i198708-199001

main81515-90A13×2i198808-199001

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-90A10i198708-198809

main81520-90A14i198808-198809

main81520-90A15i198809-199001

main81520-90A16i198809-199001

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-90A10i198708-198809

main81521-90A14i198808-198809

main81521-90A15i198809-199001

main81521-90A16i198809-199001

9007501253

main90075-01253

9018905013

main90189-05013

8 parts on this diagram · 1 diagram in section

FRONT TURN SIGNAL LAMP for Toyota LAND CRUISER

This section contains 8 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota LAND CRUISER. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY, LAMP ASSY, FRONT TURN SIGNAL, LH.
