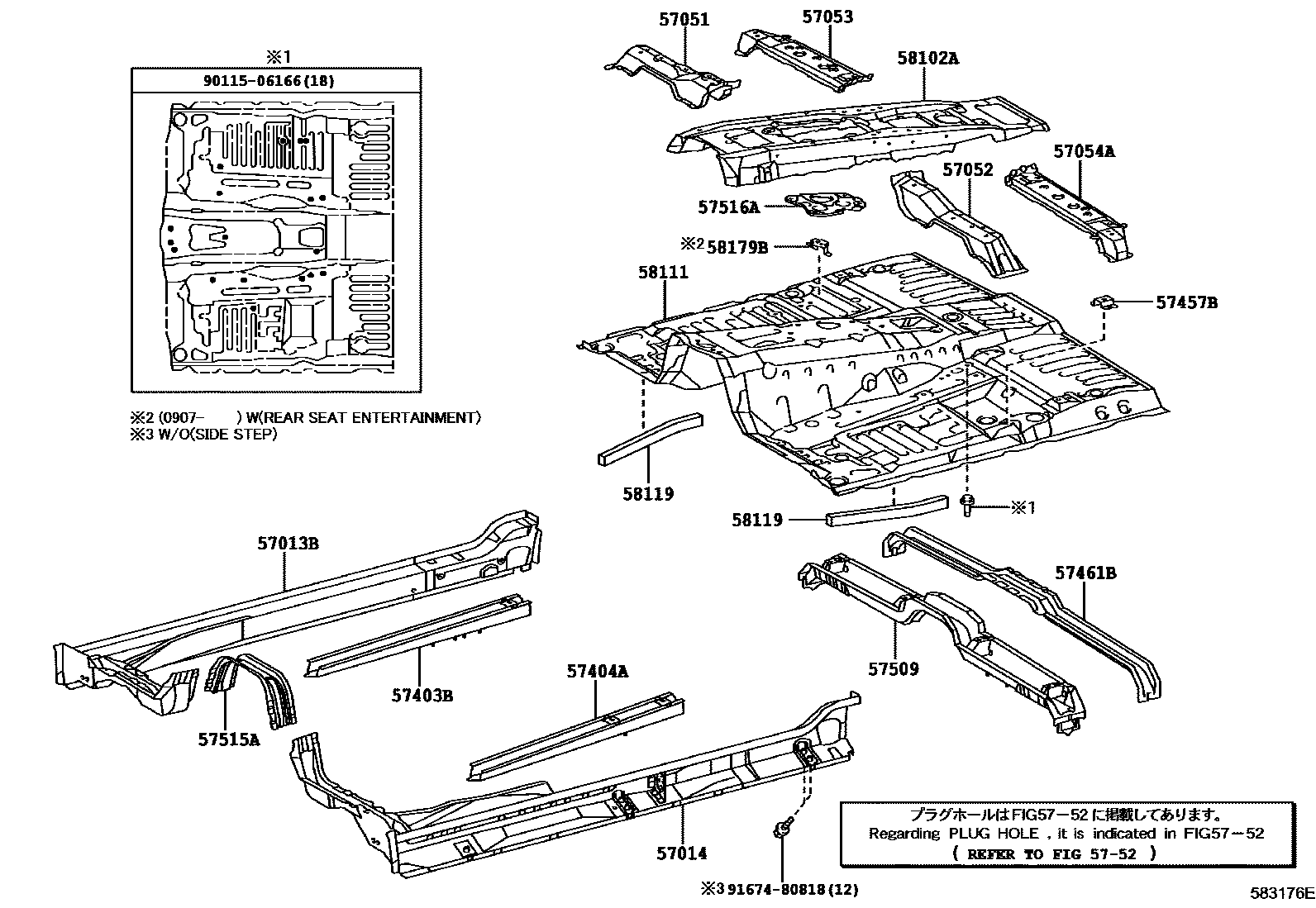

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-60010i201201-201508

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-60010i201201-201508

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60060supersedes 57051-60061i201201-201508

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60060i201508-202103

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-60050i201508-202103

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-60010i201508-202103

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60060supersedes 57417-60080i201508-202104

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60060i201508-202103

57457BBRACKET, FRONT SEAT, FRONT

main57457-60030i201608-202103

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-60020i201201-201508

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-60090i201508-202103

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57515-60030i201508-202104

57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT

main57516-60010i201508-202103

5752HOLE PLUG

→ Go to FIG 57-52

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60090i201508-202103

58111PAN, FRONT FLOOR

main58111-60A41supersedes 58111-60A61i201608-202103

main58111-60B11supersedes 58111-60B21i201201-201508

SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER; WITH(COOL BOX)

main58111-60B20i200709-201011

main58111-60B21i201012-201201

main58111-60A40i200907-201011

WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER; WITH(COOL BOX)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

main58111-60A60i200907-201008

AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+AM/FM/BLUETOOTH 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM 9SPEAKER; AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

main58111-60A61i201608-201808

AZERBAIJAN, GEORGIA, ARMENIA SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS); KAZAKHSTAN SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS); UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(*VCS)

main58111-60B10i200709-201008

WITH(COOL BOX)

main58111-60B70i201708-201808

AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH&EMV& NAVIGATION SYSTEM-WITH(*VCS); INDIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & SIREN)&REAR SEAT ENTERTAINMENT-WITH; KAZAKHSTAN SPEC&WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS); RUSSIA SPEC&WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS); UKRAINE SPEC&WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS); WITH(COOL BOX)&REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(*VCS)

main58111-60E00i201508-201608

AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER&REAR SEAT ENTERTAINMENT-WITH

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-60070×2i201508-202104

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-60020i201608-202103

9011506166

main90115-06166

9167480818

main91674-80818

20 parts on this diagram · 3 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER

This section contains 55 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: PROTECTOR, STEP COVER, RH, PROTECTOR, STEP COVER, LH, COVER, SIDE DOOR STEP PLATE, REAR LH, PLATE, STEP, RH, PLATE, STEP, LH.
