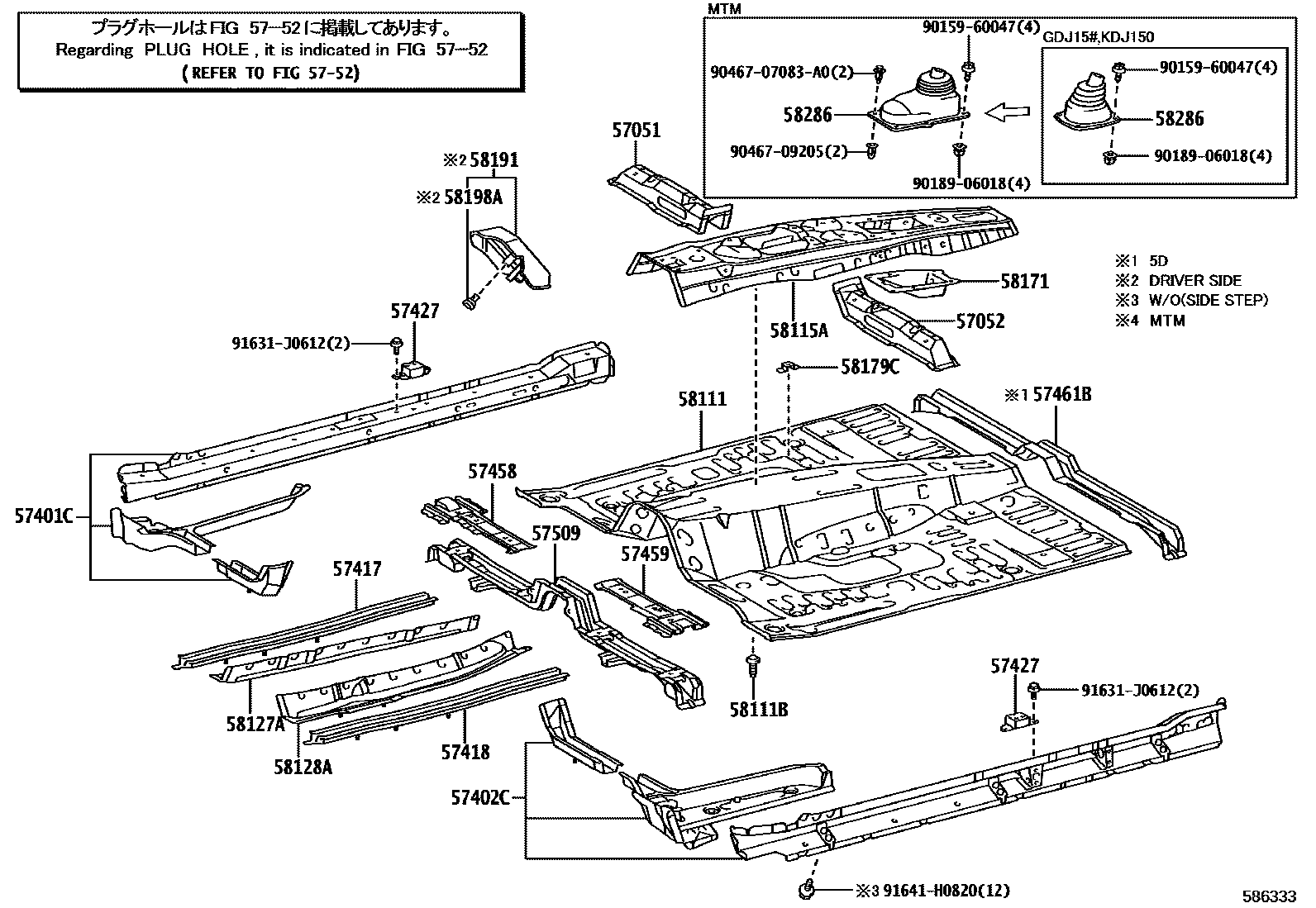

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402CMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459MEMBER, FRONT FLOOR CROSS, NO.2
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
5752HOLE PLUG
58111PAN, FRONT FLOOR
COOL BOX-WITH; COOL BOX-WITH&FRONT SEAT-POWER(DRIVER & PASSENGER)
COOL BOX-WITH
COOL BOX-WITH; COOL BOX-WITH&FRONT SEAT-POWER(DRIVER & PASSENGER)
58111BBOLT, WELD(FOR FRONT FLOOR PAN)
58115AREINFORCEMENT, FRONT FLOOR PANEL
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128AREINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58286BOOT, SHIFT & SELECT LEVER, NO.1
9015960047
main90159-60047
9018906018
main90189-06018
9046707083A0
main90467-07083A0
9046709205
main90467-09205
91631J0612
main91631-J0612
91641H0820
main91641-H0820
28 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 60 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, BRACKET SUB-ASSY, SIDE STEP, NO.2, RH, BRACKET SUB-ASSY, SIDE STEP, NO.2, LH, BRACKET SUB-ASSY, SIDE STEP, NO.3, BOSS, STEP ARM, LOWER.
