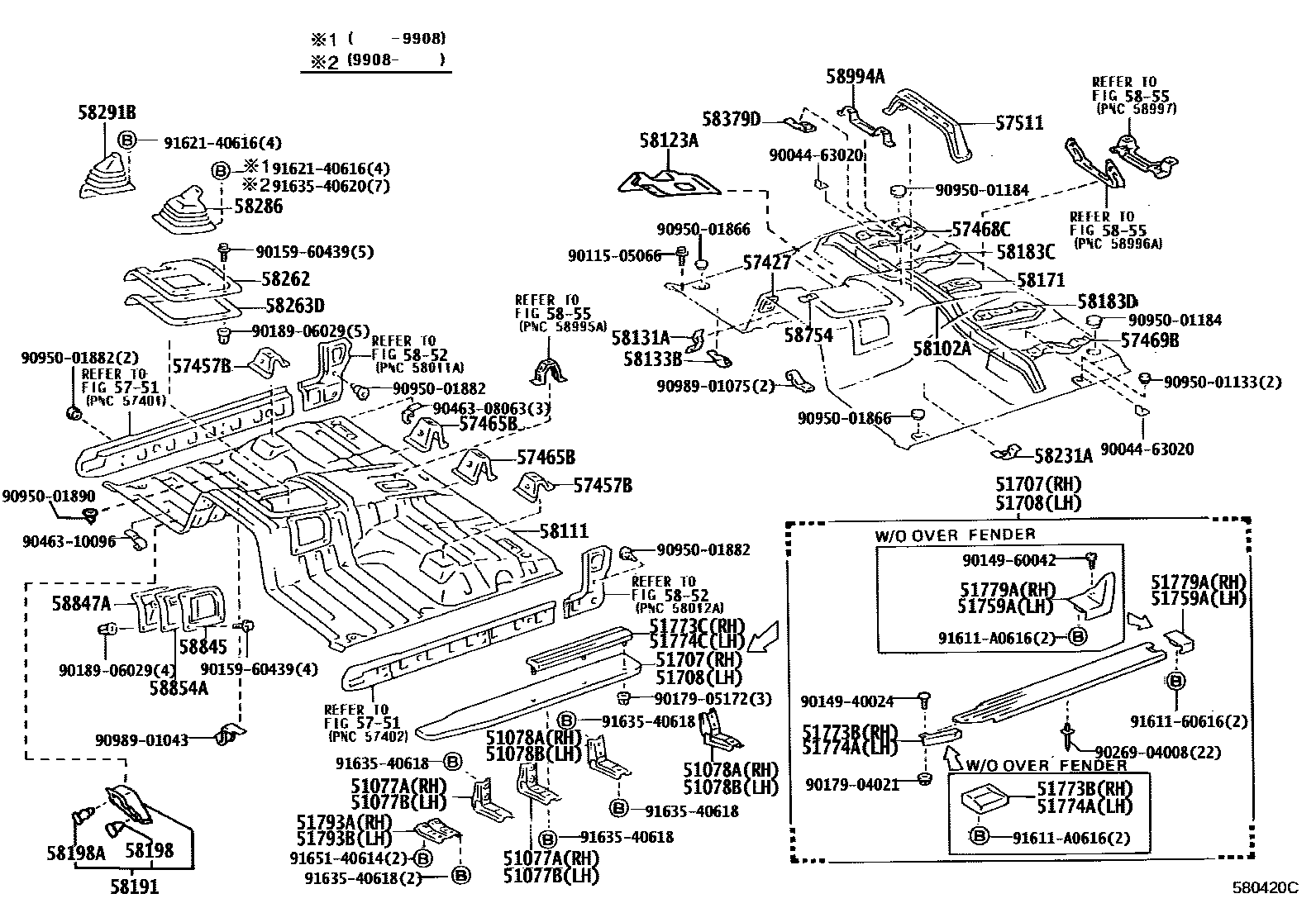

Toyota LAND CRUISER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51077ABRACKET SUB-ASSY, SIDE STEP, NO.2, RH
51077BBRACKET SUB-ASSY, SIDE STEP, NO.2, LH
51078ABRACKET SUB-ASSY, SIDE STEP, NO.3, RH
51078BBRACKET SUB-ASSY, SIDE STEP, NO.3, LH
51707STEP SUB-ASSY, RH
W/O CHROME PACKAGE
*FRG & GERMANY SPEC
*FRG
W(ALUMINUM STEP)
main51770-60040iKZJ70..RHD..VX; KZJ70..STD; LJ70;KZJ70..LHD..VX;HZJ70,73,KZJ70,73,LJ73,RJ7#..LX199305-199501
CHROME PACKAGE; W(TIRE=265/70R15 OR 31X10.50R15)
W(265/75R15 TIRE)
*FRG
CHROME PACKAGE
W(TIRE=265/70R15 OR 31X10.50R15)
51708STEP SUB-ASSY, LH
W/O CHROME PACKAGE
*FRG; *FRG & GEAMANY SPEC; GERMANY SPEC
*FRG
*FRG
W(265/70R16 TIRE)
W(265/75R15 TIRE)
*FRG
*FRG
CHROME PACKAGE
W(TIRE=265/70R15 OR 31X10.50R15)
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
*FRG
*FRG; *FRG & W(265/75R 15 TIRE); W(265/75R15 TIRE)
W(265/75R15 TIRE)
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
*FRG
W(265/75R 15 TIRE)
51773CCOVER, STEP PLATE, RH
NO PAINT REQ.; NO PAINT REQ.,W/O CHROME PACKAGE
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
*FRG
main51774-60040iLJ70,PZJ70,73..STD; LJ70..LHD..VX;HZJ70,73,LJ7#,RJ7#..LX; LJ70..RHD..VX199001-199305
*FRG & W(265/75R 15 TIRE); W(265/75R 15 TIRE)
51774CCOVER, STEP PLATE, LH
main51773-90K00×2iKZJ70,73..LHD..LX; KZJ70..LHD..VX; KZJ70..RHD..LX;HZJ70,73,LJ7#,RJ7#; KZJ73..VX;BJ73,HZJ75,KZJ70..STD,VM199305-199501
NO PAINT REQ.; NO PAINT REQ.,*FRG OR W/O CHROME PACKAGE; NO PAINT REQ.,W/O CHROME PACKAGE; NO PAINT REQ.,W/O CHROME PACKAGE OR GERMANY SPEC
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
*FRG
*FRG; *FRG & W(265/75R 15 TIRE; W(265/75R 15 TIRE)
W(TIRE=265/70R15)
51793ABRACKET, SIDE STEP, NO.1 RH
CHROME PACKAGE
W/O CHROME PACKAGE OR GERMANY SPEC
51793BBRACKET, SIDE STEP, NO.1, LH
CHROME PACKAGE
main51793-90K00iLJ70,73,RJ70..LHD..LX..(CBR,DSL); LJ70..RHD..LX;HZJ70,73,RJ7#..DSL,EFI;LJ70..LHD..HT..(STD,VX)199201-199305
*FRG OR W/O CHROME PACKAGE; W/O CHROME PACKAGE
57427REINFORCEMENT, FRONT FLOOR TO BRACE
57457BBRACKET, FRONT SEAT, FRONT
57465BBRACKET, FRONT SEAT, INNER
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
5751FLOOR MEMBER
57511REINFORCEMENT, FRONT FLOOR, CENTER
W(FRONT SUSPENTION SEAT)
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
W(*MW)
W(WINCH)
W(REAR HEATER)
COLD SPEC & W(REAR HEATER)
W(*MW)
W(*MW)
W(*MW)
W(REAR HEATER)
W(REAR HEATER)
W(*MW & REAR HEATER)
W(REAR HEATER)
W(*MW)
W(*MW)
W(REAR HEATER)
58123ASUPPORT, SHIFT & SELECT LEVER
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58171REINFORCEMENT, PARKING BRAKE BASE
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58183DBRACKET, FRONT SEAT MOUNTING, INSIDE LH
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58198ACLIP, FOOTREST, NO.1
58231ABRACKET, CENTER FLOOR HEAT INSULATOR, NO.1
58262COVER, TRANSMISSION
58263DPACKING, TRANSMISSION COVER
58286BOOT, SHIFT & SELECT LEVER, NO.1
58291BBOOT, TRANSFER SHIFT LEVER
58379DBRACKET, HEATER HOSE CLAMP
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
5855CONSOLE BOX & BRACKET
58754PLATE, ENGINE SERVICE COVER CATCH
58845RETAINER, WINCH LEVER BOOT
58847ASEAL, WINCH LEVER
58854ABOOT, WINCH LEVER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
9004463020
main90044-63020
9011505066
main90115-05066
9014940024
main90149-40024
9014960042
main90149-60042
9015960439
main90159-60439
9017904021
main90179-04021
9017905172
main90179-05172
9018906029
main90189-06029
9026904008
main90269-04008
9046308063
main90463-08063
9046310096
main90463-10096
9095001133
main90950-01133
9095001184
main90950-01184
9095001866
main90950-01866
9095001882
main90950-01882
9095001890
main90950-01890
9098901043
main90989-01043
9098901075
main90989-01075
9161160616
main91611-60616
91611A0616
main91611-A0616
9162140616
main91621-40616
9163540618
main91635-40618
9163540620
main91635-40620
9165140614
main91651-40614
69 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota LAND CRUISER
This section contains 81 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota LAND CRUISER. Key components include: BRACKET SUB-ASSY, SIDE STEP, NO.2, RH, BRACKET SUB-ASSY, SIDE STEP, NO.2, LH, BRACKET SUB-ASSY, SIDE STEP, NO.3, RH, BRACKET SUB-ASSY, SIDE STEP, NO.3, LH, STEP SUB-ASSY, RH.
