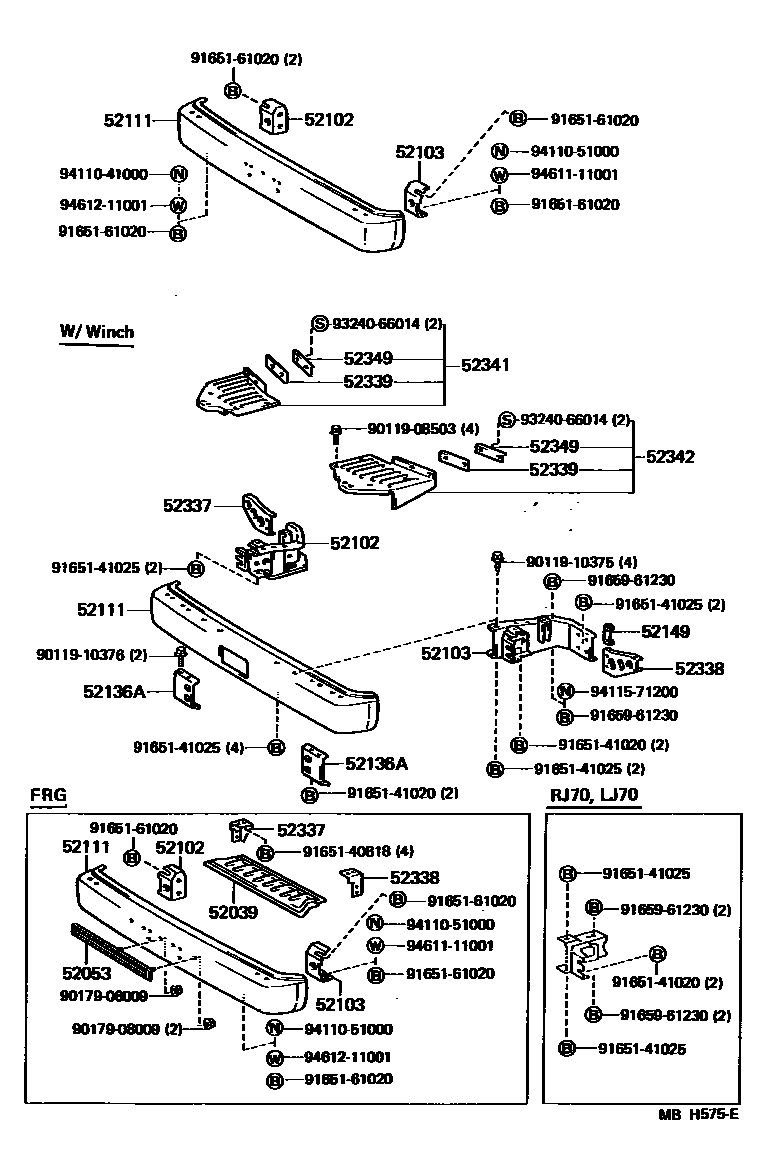

Toyota LAND CRUISER — FRONT BUMPER & BUMPER STAY
52039STEP SUB-ASSY, FRONT BUMPER
52053PAD SUB-ASSY, FRONT BUMPER
52102BRACKET SUB-ASSY, FRONT BUMPER, RH
W/WINCH
W/WINCH
W/WINCH
52103BRACKET SUB-ASSY, FRONT BUMPER, LH
W/WINCH
W/WINCH
52111BUMPER ASSY, FRONT
sub52101-60090
sub52101-60100
sub52101-60923
CHROME PLATING,W/WINCH
*FRG,CHROME PLATING
52136AREINFORCEMENT, FRONT BUMPER
RH
LH
52149BRACKET, FRONT BUMPER, INNER
52337STAY, FRONT BUMPER STEP, RH
*FRG
52338STAY, FRONT BUMPER STEP, LH
*FRG
52339SEAL, FRONT BUMPER STEP
52341STEP, FRONT BUMPER, RH
sub52330-90K01
52342STEP, FRONT BUMPER, LH
sub52340-90K01
52349RETAINER, FRONT BUMPER STEP SEAL
9011908503
main90119-08503
9011910375
main90119-10375
9011910376
main90119-10376
9017906009
main90179-06009
9017908009
main90179-08009
9165140818
main91651-40818
9165141020
main91651-41020
9165141025
main91651-41025
9165161020
main91651-61020
9165961230
main91659-61230
9324066014
main93240-66014
9411041000
main94110-41000
9411051000
main94110-51000
9411571200
main94115-71200
9461111001
main94611-11001
9461211001
main94612-11001
29 parts on this diagram · 2 diagrams in section
