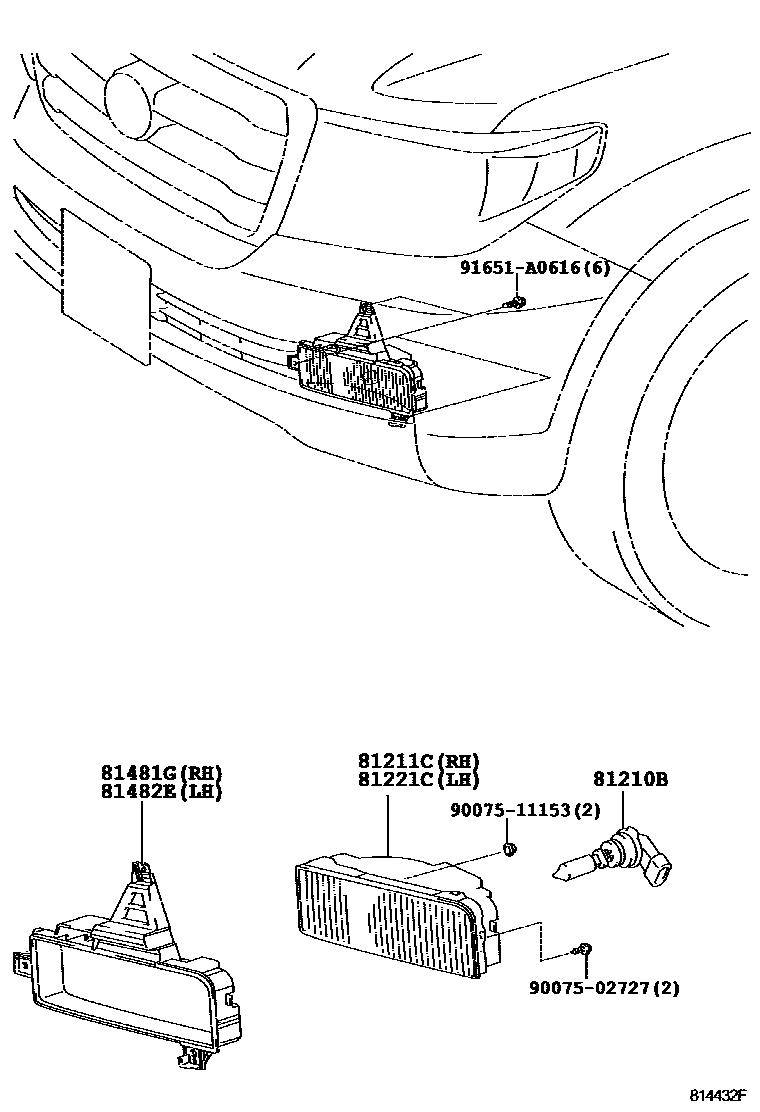

Toyota LAND CRUISER — FOG LAMP

0001 1 0002 1 0003 1

81210BBULB, FOG LAMP

main90981-13047iUZJ200,VDJ200200709-201201

12V 51W,HALOGEN

main90981-13047iUZJ200,VDJ200200709-201201

12V 51W,HALOGEN,FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

main90981-13090iURJ202,VDJ200201201-201508

12V 19W

main90981-13090iURJ202,VDJ200201201-201508

12V 19W,SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)

main90981-13090iURJ202,VDJ200201201-201508

12V 19W,FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

main90981-13090iURJ202,VDJ200201201-201508

12V 19W,FRONT FOG LAMP-WITHOUT

81211CLAMP UNIT, FOG LAMP, RH

main81211-60220iUZJ200,VDJ200200709-200806

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

sub81211-60221

main81211-60221iUZJ200,VDJ200200806-201201

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

81221CLAMP UNIT, FOG LAMP, LH

main81221-60140iUZJ200,VDJ200200709-200806

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

sub81221-60141

main81221-60141iUZJ200,VDJ200200806-201201

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

81481GBRACKET, FOG LAMP, RH

main81481-60070iUZJ200,VDJ200200709-200805

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

sub81481-60071

main81481-60071iUZJ200,VDJ200200806-200908

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

sub81481-60072

main81481-60072iUZJ200,VDJ200200909-201201

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

81482EBRACKET, FOG LAMP, LH

main81482-60060iUZJ200,VDJ200200709-200805

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

sub81482-60061

main81482-60061iUZJ200,VDJ200200806-200908

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

sub81482-60062

main81482-60062iUZJ200,VDJ200200909-201201

FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)

9007502727

main90075-02727

9007511153

main90075-11153

91651A0616

main91651-A0616

8 parts on this diagram · 3 diagrams in section
