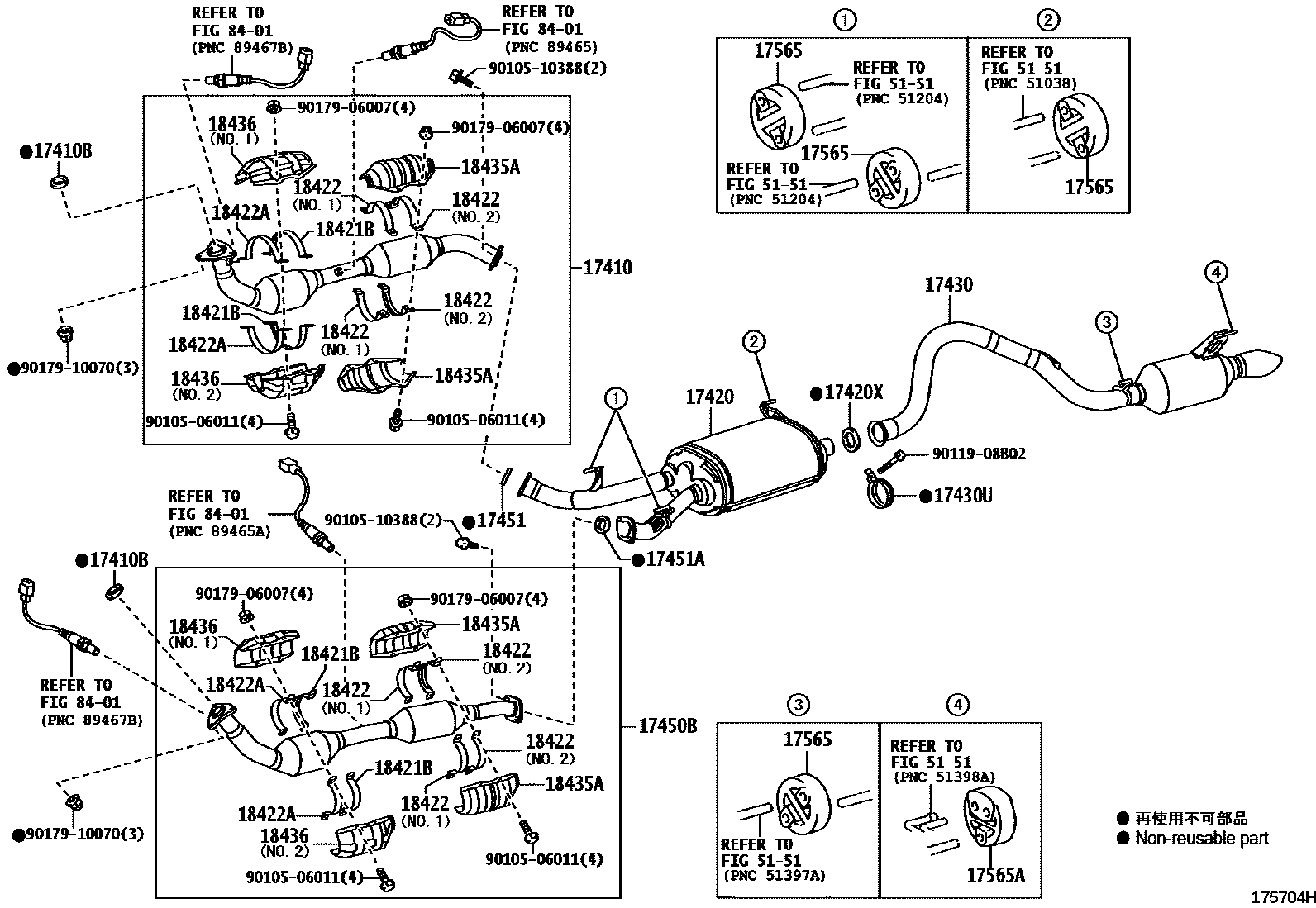

Toyota LAND CRUISER — EXHAUST PIPE

0001 1 0002 1EXCEPT EUROPE STEP5 0003 1 0004 1EUROPE STEP5

17410PIPE ASSY, EXHAUST, FRONT

main17410-38320i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

*114=TOYOTA/X71/Y

main17410-38320i1URFE..URJ202..LHD201201-201508

*114=TOYOTA/X71/Y,HONG KONG SPEC

main17410-38430i1URFE..URJ202..RHD201201-201508

*114=TOYOTA/X57/Y

main17410-50500i2UZFE..UZJ200200709-201201

*114=TOYOTA/T77T89/Y

main17410-51010i1VDFTV..VDJ200200709-201201

*114=TOYOTA/X31/Y

main17410-51030i1VDFTV..VDJ200201201-201508

*114=TOYOTA/ZC1/Y

main17410-51040i1VDFTV..VDJ200..RHD201608-202103

main17410-51050i1VDFTV..VDJ200..LHD201508-202008

main17410-51060i1VDFTV..VDJ200..LHD..08S202008-202104

17410BGASKET, EXHAUST PIPE

main17279-17030i1VDFTV..VDJ200..RHD201201-202104

main90917-06066i1VDFTV..VDJ200..RHD200709-202103

main90917-06090i1URFE..URJ202201201-202104

17420PIPE ASSY, EXHAUST, CENTER

main17420-38110i1URFE..URJ202201201-201608

main17420-38130i1URFE..URJ202..VXR;1URFE..URJ202..05S201608-202104

main17420-50270i2UZFE..UZJ200200709-201201

main17420-51010i1VDFTV..VDJ200..RHD200709-202103

main17420-51020i1VDFTV..VDJ200..LHD..08S201201-202104

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06085i2UZFE..UZJ200200709-201201

main90917-06093i1VDFTV..VDJ200200709-202104

17430PIPE ASSY, EXHAUST, TAIL

main17430-38551i1URFE..URJ202201201-201508

main17430-38600i1URFE..URJ202..VXR;1URFE..URJ202..05S201508-202104

main17430-50290i2UZFE..UZJ200200709-201201

main17430-51010i1VDFTV..VDJ200200709-201508

main17430-51020i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S201508-202104

17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)

main90080-46263i2UZFE..UZJ200200709-201201

main90461-15017i1VDFTV..VDJ200..05S;1URFE..URJ202..08S..VX;1VDFTV..VDJ200..RHD..VXR200709-202104

17450PIPE ASSY, EXHAUST, NO.5

main17450-51040i1VDFTV..VDJ200201201-202104

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-38060i1URFE..URJ202..RHD201201-201508

*114=TOYOTA/X57/Y

main17450-38080i1URFE..URJ202..08S..VX201201-202104

*114=TOYOTA/X71/Y

main17450-38080i1URFE..URJ202..LHD201201-201508

*114=TOYOTA/X71/Y,HONG KONG SPEC

main17450-50140i2UZFE..UZJ200200709-201201

*114=TOYOTA/T77T89/Y

main17450-51010i1VDFTV..VDJ200200709-201201

*114=TOYOTA/X31/Y

main17450-51030i1VDFTV..VDJ200201201-202008

*114=TOYOTA/ZC2/Y

main17450-51050i1VDFTV..VDJ200..RHD201608-202103

main17450-51060i1VDFTV..VDJ200..LHD..08S202008-202104

17451GASKET, EXHAUST PIPE

main17451-28040i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S200709-202104

sub17451-28041

main90917-06078i1URFE..URJ202..08S..VX201201-202104

main90917-06090i2UZFE..UZJ200200709-201201

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06078i1URFE..URJ202201201-201508

SOUTH AFRICA SPEC&AIR CLEANER-WITH(PRE CLEANER)

main90917-06078i1VDFTV..VDJ200200709-202104

main90917-06078i1URFE..URJ202201201-201508

RUSSIA SPEC

main90917-06078i1URFE..URJ202201201-201508

UKRAINE SPEC

main90917-06078i1URFE..URJ202201201-201508

INDIA SPEC&AIR CLEANER-WITH(PRE CLEANER)

main90917-06078i1URFE..URJ202201201-201508

AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC

main90917-06078i1VDFTV..VDJ200..RHD201508-201608

SOUTH AFRICA SPEC

main90917-06078i1VDFTV..VDJ200..RHD201508-201608

INDIA SPEC

main90917-06089i2UZFE..UZJ200200709-201201

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i2UZFE,1VDFTV..UZJ200,VDJ200200709-202104

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-31050i1URFE,1VDFTV..URJ202,VDJ200200709-202104

18421BSTAY, CONVERTER PROTECTOR, NO.2

main18421-22020i2UZFE..UZJ200200709-201201

18422STAY, CONVERTER PROTECTOR, NO.2

main18421-22020i2UZFE..UZJ200200709-201201

NO.2

main18421-38030i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main18421-50010i2UZFE..UZJ200200709-201201

NO.1

18422ASTAY, CONVERTER PROTECTOR, NO.3

main18421-50010i2UZFE..UZJ200200709-201201

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-38020i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main18435-50130i2UZFE..UZJ200200709-201201

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

main18435-38040i2UZFE..UZJ200200709-201201

NO.1

main18445-38010i2UZFE..UZJ200200709-201201

NO.2

5151

8401

9010506011

main90105-06011

9010510388

main90105-10388

9011908B02

main90119-08B02

9017906007

main90179-06007

9017910070

main90179-10070

24 parts on this diagram · 4 diagrams in section
