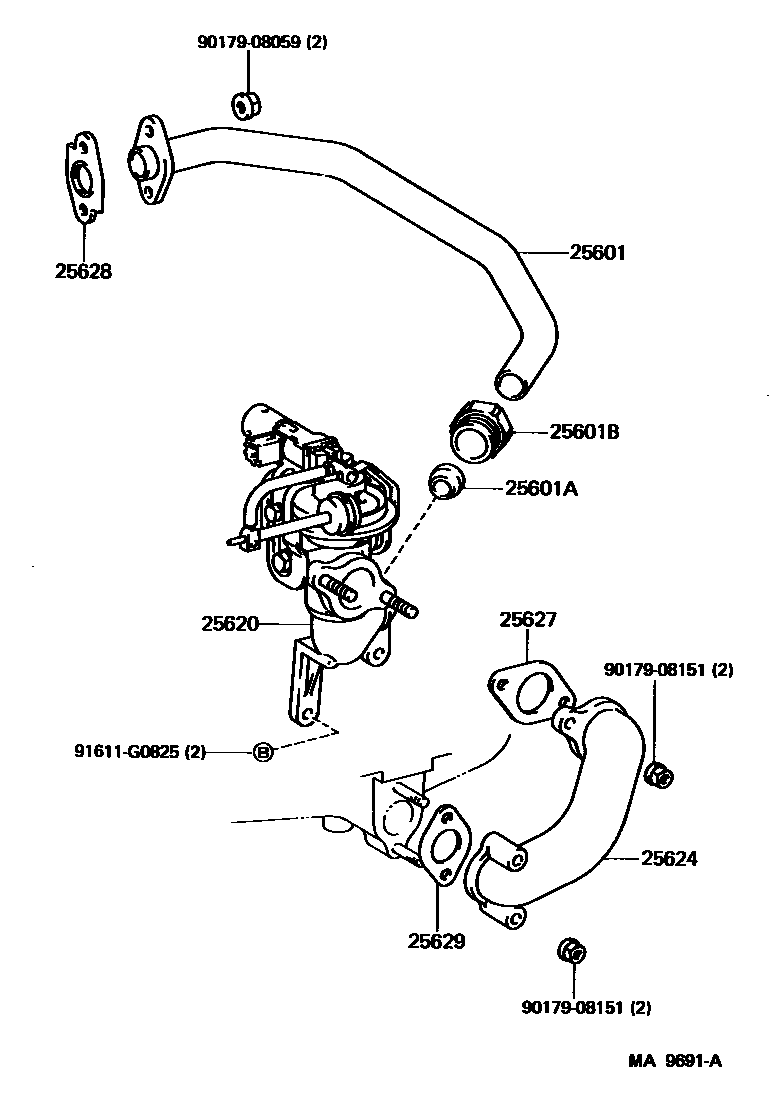

Toyota LAND CRUISER — EXHAUST GAS RECIRCULATION SYSTEM

0001 1AUSTRIA SPEC 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-35050i22RE..RJ7#198812-199001

main25601-38010i22R..RJ7#198411-199001

main25601-54050i2LT..LJ7#..LX198810-199001

AUSTRIA SPEC

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16044i22R#..RJ7#198411-199001

main90410-25001i2LT..LJ7#..LX198810-199001

AUSTRIA SPEC

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22081i22R#..RJ7#198411-199001

main90402-33001i2LT..LJ7#..LX198810-199001

AUSTRIA SPEC

25620VALVE ASSY, EGR

main25620-35130i22RE..RJ7#198812-199001

main25620-37080i22R..RJ7#198411-199001

main25800-54050i2LT..LJ7#..LX198810-199001

AUSTRIA SPEC

25624ADAPTER, EGR VALVE

main25624-54030i2LT..LJ7#..LX198810-199001

AUSTRIA SPEC

25627GASKET, EGR VALVE

main25627-54010i2LT..LJ7#..LX198810-198904

AUSTRIA SPEC

sub25627-54011

main25627-54011i2LT..LJ7#..LX198904

AUSTRIA SPEC

25628GASKET, EGR INLET

main25628-35020i22RE..RJ7#198812-199001

main25628-38010i22R..RJ7#198411-199001

sub25628-35030

main25628-54012i2LT..LJ7#..LX198810-199001

AUSTRIA SPEC

25629GASKET, EGR VALVE ADAPTER

main25629-54010i2LT..LJ7#..LX198810-198904

AUSTRIA SPEC

sub25629-54011

main25629-54011i2LT..LJ7#..LX198904

AUSTRIA SPEC

9017908059

main90179-08059

9017908151

main90179-08151

91611G0825

main91611-G0825

11 parts on this diagram · 3 diagrams in section
